Delock Modular Wall Outlet flush mount 2 Port Cat.6A LSA

DELOCK

86195

New

This network wall outlet by Delock can be installed in-wall or on a back box with 60 mm mounting holes. The LSA blocks can be used with a punch down tool; the horizontal cable feed allows a flexible installation.

More details

Description:
This network wall outlet by Delock can be installed in-wall or on a back box with 60 mm mounting holes. The LSA blocks can be used with a punch down tool; the horizontal cable feed allows a flexible installation.

Specification:
• Connectors:
external: 2 x RJ45 female

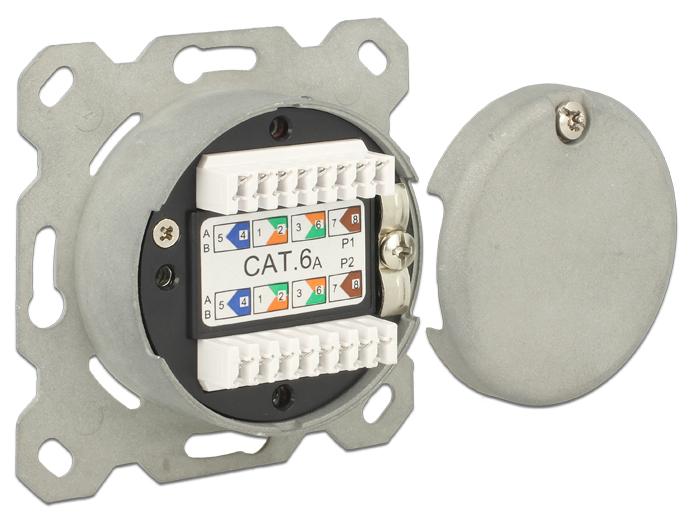

internal: 2 x LSA block
• Horizontal cable routing
• Shielded (Cat.6A)
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 – 24 AWG)
• Die cast housing
• Wall mount with Delock 86128
• Integrated name plate
• Design suitable central plate 50 x 50 mm
• Mounting holes 60 mm
• Colour: white
• Dimensions (LxWxH): ca. 80 x 80 x 39 mm

System requirements:


Package content:
• Modular Wall Outlet
• 2 screws

Network sockets
