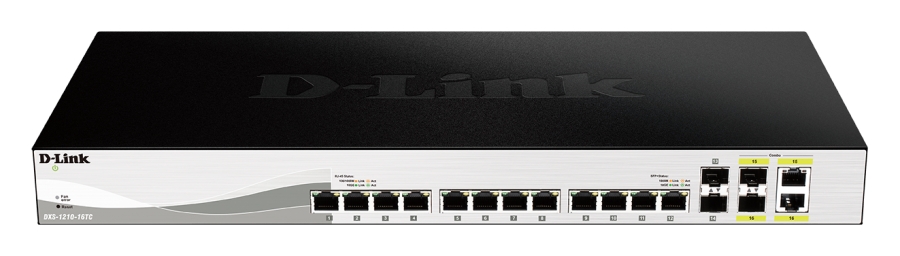

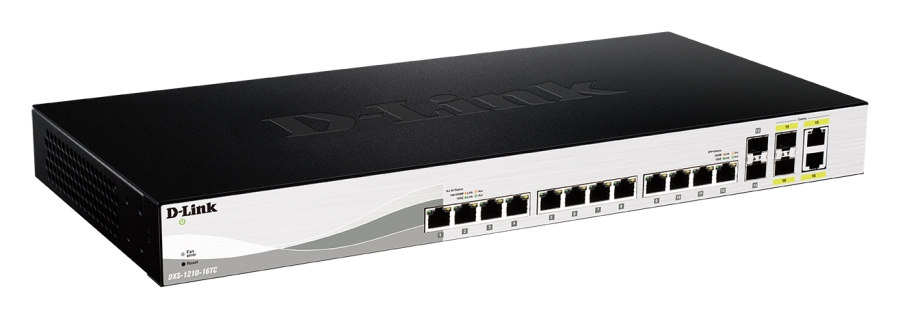

Switch 440mm D-Link DXS-1210-16TC 2*Combo/ 2*SFP+/12*XG retail

D-LINK

DXS-1210-16TC

New

Energy efficientBy incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built-in smart fans with internal heat sensors, that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.Extensive management and Layer 2 featuresThe DXS-1210 comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.Quality of service and bandwidth controlThe DXS-1210 supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a technology, that consolidates data and surveillance video transmission through a single DXS-1210 switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritized and segmented VLAN, this feature guarantees quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions, that require higher priority or more bandwidth.Secure your networkD-Link's innovative Safeguard Engine protects the switches against traffic flooding, caused by malicious attacks. The DXS-1210 supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210 also features Address Resolution Protocol (ARP) spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets, that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
ARP inspectionY
System event logY
MIB supportRFC 783, RFC 951, RFC 1157, RFC 1213, RFC 1215, RFC 1350, RFC 1493, RFC 1769, RFC 1542, RFC 1901, RFC 1907, RFC 1908, RFC 2131, RFC 2138, RFC 2139, RFC 2233, RFC-2246, RFC 2475, RFC 2570, RFC 2575, RFC 2598, RFC 2618, RFC 2819, RFC 2865, RFC 3164, RFC 3195, RFC 3411-17
Basic switching RJ-45 Ethernet ports quantity12
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Combo SFP ports quantity2
SFP+ module slots quantity2
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3z
10G supportY
Copper ethernet cabling technology10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroringY
Flow control supportY
Broadcast storm controlY
Auto MDI/MDI-XY
Spanning tree protocolY
Head-of-line (HOL) blockingY
VLAN supportY
Virtual LAN featuresVoice VLAN, MAC address-based VLAN, Port-based VLAN
Fiber ethernet cabling technology1000BASE-X
MAC address table16000 entries
Switching capacity320 Gbit/s
Forwarding rate238.08 Mpps
Store-and-forwardY
Jumbo frames supportY
Jumbo frames16000
DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Y
Access Control List (ACL) rules256
IGMP snoopingY
Security algorithms802.1x RADIUS, SNMP, SSL/TLS
IP-MAC-Port bindingY
Multicast supportY
Multicast Listener Discovery (MLD) snoopingMLD v
Supported network protocolsIPv4, IPv6
Rack mountingY
Product colourBlack
LED indicatorsActivity, Link, Power, Speed
SafetycUL, CB, CE, CCC, BSMI
CertificationCE, FCC, C-Ticket, VCCI, BSMI, CCC
Built-in processorY
Shipping (inner) case height38.3 cm
Shipping (inner) case width31.4 cm
Shipping (inner) case length56.2 cm
Shipping (inner) case net weight13.6 kg
Products per shipping (inner) case3 pc(s)
Pallet gross weight (air)281.1 kg
Master (outer) cases per pallet (air)18 pc(s)
Products per pallet (air)54 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)128.4 cm
Pallet gross weight (sea)456 kg
Master (outer) cases per pallet (sea)30 pc(s)
Products per pallet (sea)90 pc(s)
Pallet height (sea)2.05 m
Shipping (inner) case gross weight14.5 kg
AC input voltage120 - 230 V
AC input frequency50 - 60 Hz
Power consumption (max)90.81 W
Power over Ethernet (PoE)N
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Width440 mm
Depth210 mm
Height44 mm
Weight3.15 kg
Package width349 mm
Package depth546 mm
Package height96 mm
Package weight4.53 kg
Harmonized System (HS) code85176990
