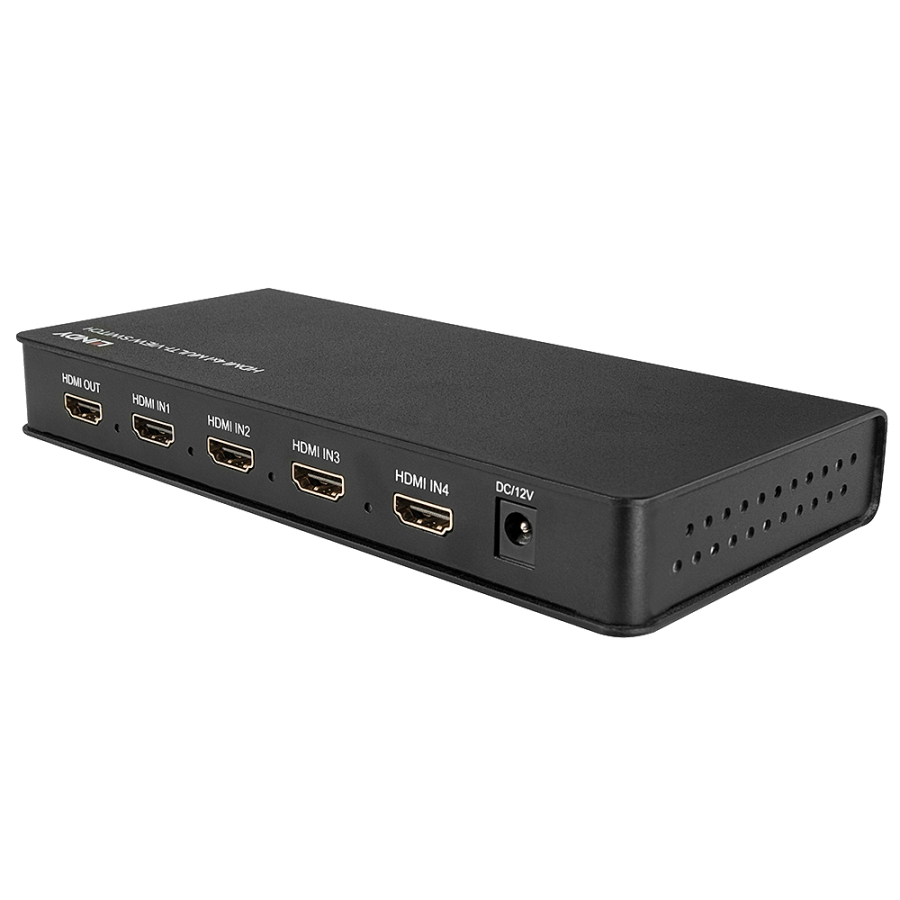

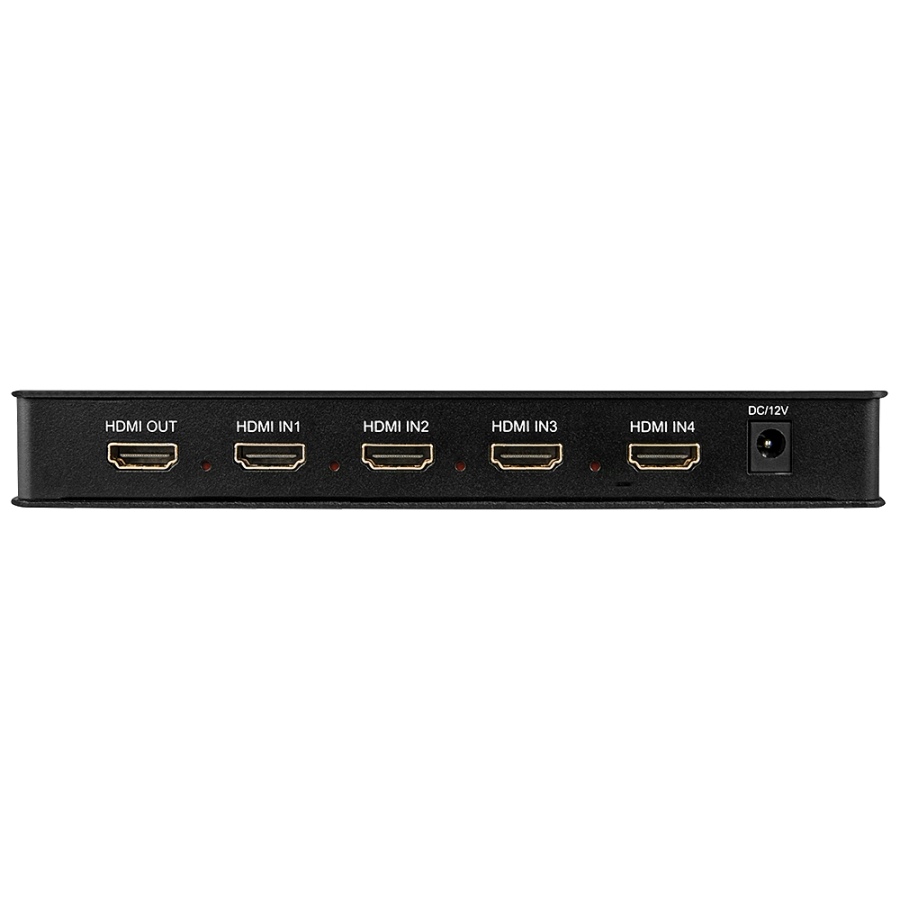

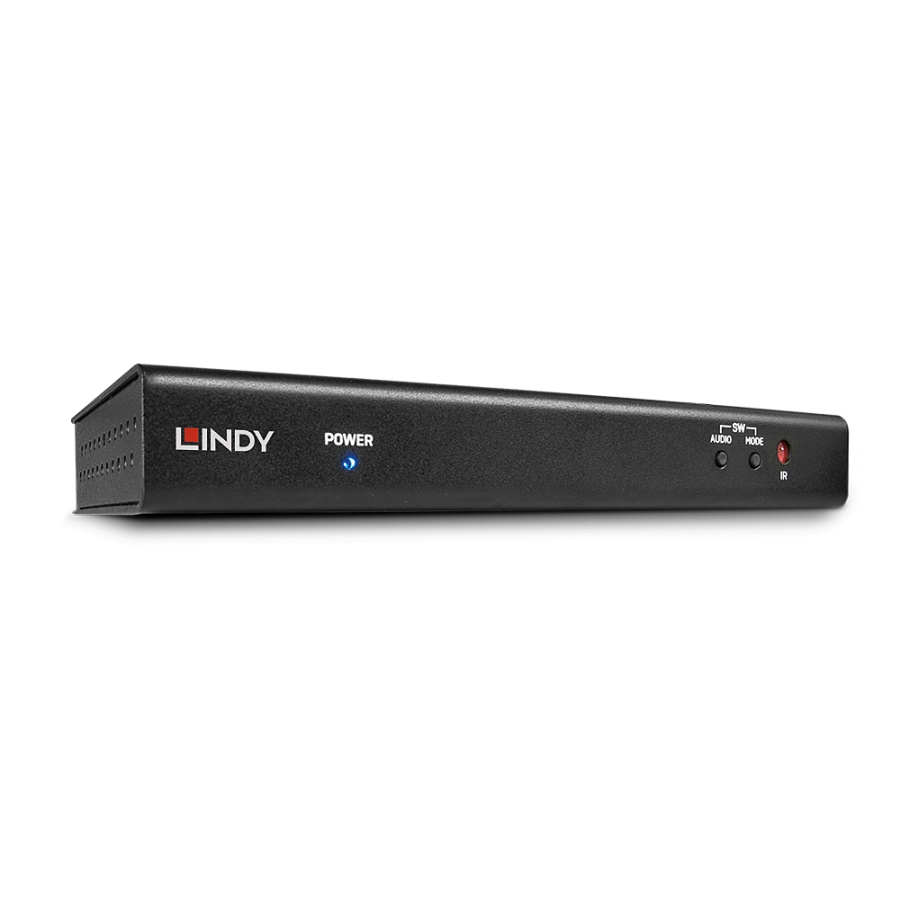

LINDY HDMI-Switch 4 Port Multi-View 1080p Quadview PiP

Reference 38150

Condition: New

More info

Integrates 4 Full HD 1080p signals for display on a single HDMI display Supports 4 viewing modes; Quadview, Picture & Picture, Dual Video and Standard Seamless switching between inputs/viewing modes Independent switching of audio and video signals 2 Year warrantyThis HDMI 4x1 Multi-View Switch is a high performance video switch which allows signals from four different Full HD sources to be integrated for simultaneous display on a single monitor. Featuring four different viewing modes (Quad-View, Full Screen, Picture and Picture & Dual Video) the Multi-view switch allows for the monitoring of multiple video sources in different viewing configurations to meet the requirements of standard installations.To ensure optimal performance in mission critical environments the Switch provides seamless switching, ensuring that there is no frame loss whilst switching between the connected source devices or between different picture modes.Full HD 1080p resolutions are supported on both the input and output for simple integration within typical business environments, whilst the output can be down-scaled to 720p for operation with legacy displays.Switching between audio and video channels can be completed independently using either the supplied remote control or using the front panel buttons. This independent switching allows a single audio source to be used continuously whilst switching between the connected source devices or conversely a single video source to be monitored whilst the audio source is switched.This flexible, cost effective switch has been designed to be used in a number of different applications, such as:Digital Presentation CCTV Surveillance & Control Conference & Meeting RoomPlease note: HDCP is always enabled on the output connection.

Video port type	HDMI
HDMI ports quantity	5
HDMI version	1.3a
Video in	4
Video out	1
HDCP	Y
Maximum operating distance	15 m
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes	720p, 1080p
LED indicators	Y
Maximum resolution	1920 x 1080 pixels
Remote control type	IR
HD type	Full HD
Colour depth	8 bit
Audio formats supported	PCM
AC adapter output voltage	12 V
AC adapter output current	2 A
Power consumption (typical)	6 W
Remote control included	Y
Manual	Y
AC adapter included	Y
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	40 - 60%
Harmonized System (HS) code	85176990
