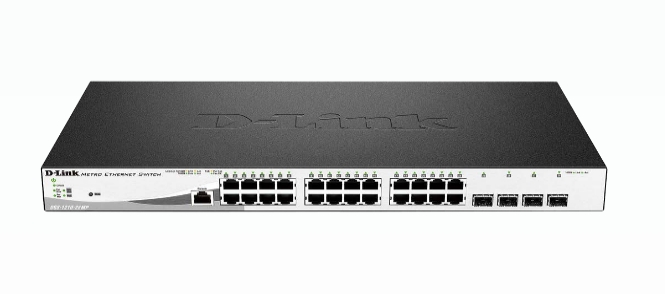

Switch 440mm D-Link DGS-1210-28MP 4*Combo/24*GE PoE+ retail

D-LINK

DGS-1210-28MP

New



Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
Traffic classificationY
MIB supportRFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Fiber optic connectorSFP
Console portRJ-45
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Port mirroringY
Full duplexY
IP routingY
Flow control supportY
Link aggregationY
Rate limitingY
Auto MDI/MDI-XY
Spanning tree protocolY
Auto-negotiationY
VLAN supportY
Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4094
Fiber ethernet cabling technology1000BASE-X
MAC address table16000 entries
Switching capacity56 Gbit/s
Forwarding rate41.7 Mpps
Store-and-forwardY
Number of queues8
Number of static routes32
Jumbo frames supportY
Jumbo frames9216
Packet buffer memory1.5 MB
DHCP featuresDHCP client
Access Control List (ACL)Y
Access Control List (ACL) rules256
IGMP snoopingY
Security algorithms802.1x RADIUS, SNMP, SSH
SSH/SSL supportY
Loop protectionY
BPDU filtering/protectionY
IP-MAC-Port bindingY
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
Multicast supportY
Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2
Rack mountingY
Form factor1U
Product colourBlack, Grey
LED indicatorsActivity, Fan fail, Link, Power, Speed
Number of fans2 fan(s)
Electromagnetic compatibilityFCC A, CE A, VCCI, C-Tick, BSMI, CCC
CertificationIEC61000-4-5, RoHS
Memory typeDDR3-SDRAM
Internal memory256 MB
Flash memory32 MB
Noise level52.4 dB
Power sourceAC/DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)27.49 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity24
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation850.58 BTU/h
Width440 mm
Depth210 mm
Height44 mm
Weight3.86 kg
Harmonized System (HS) code85176990
