New

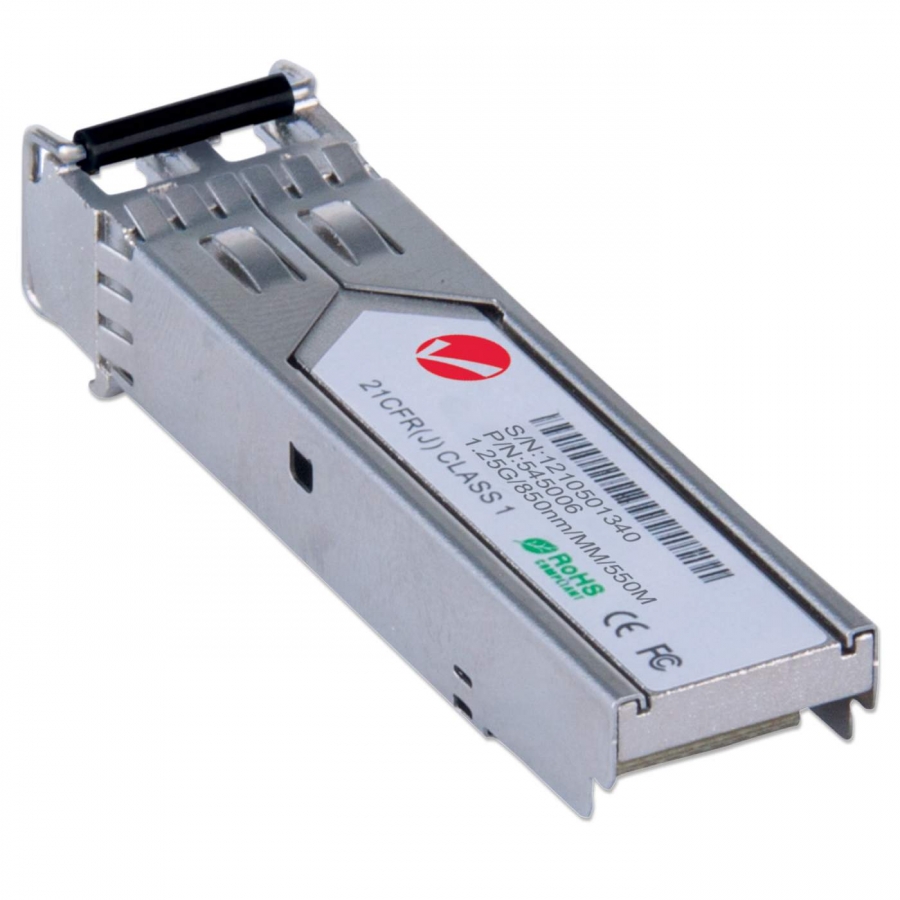

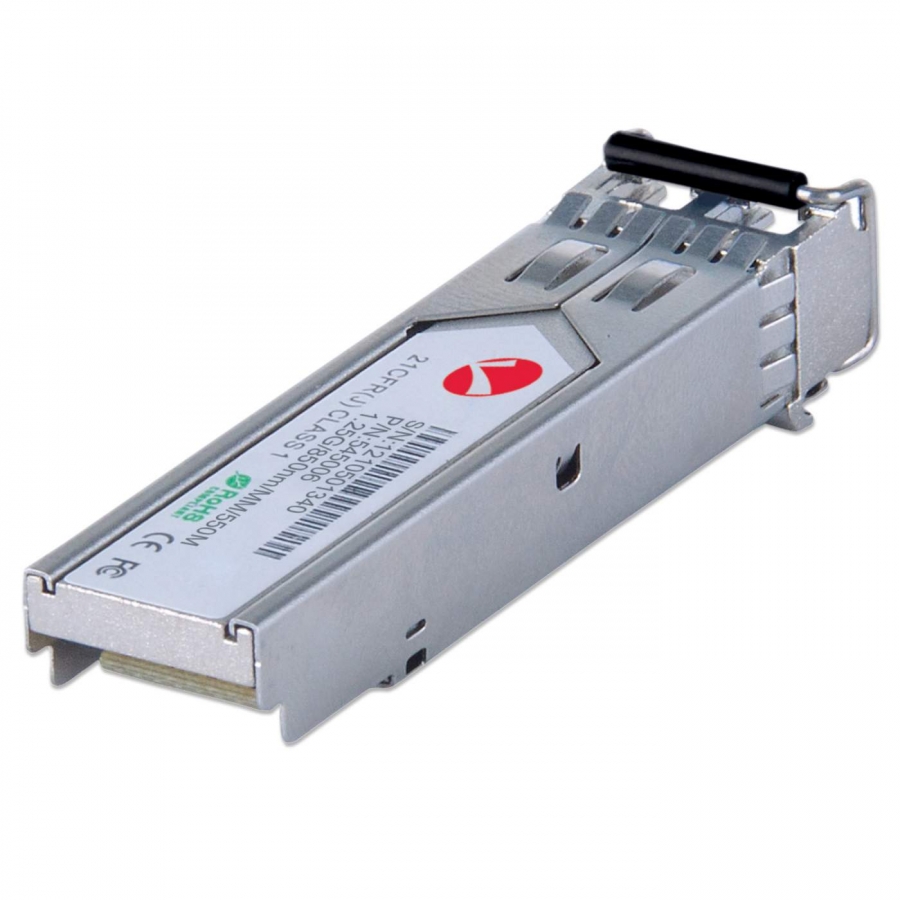

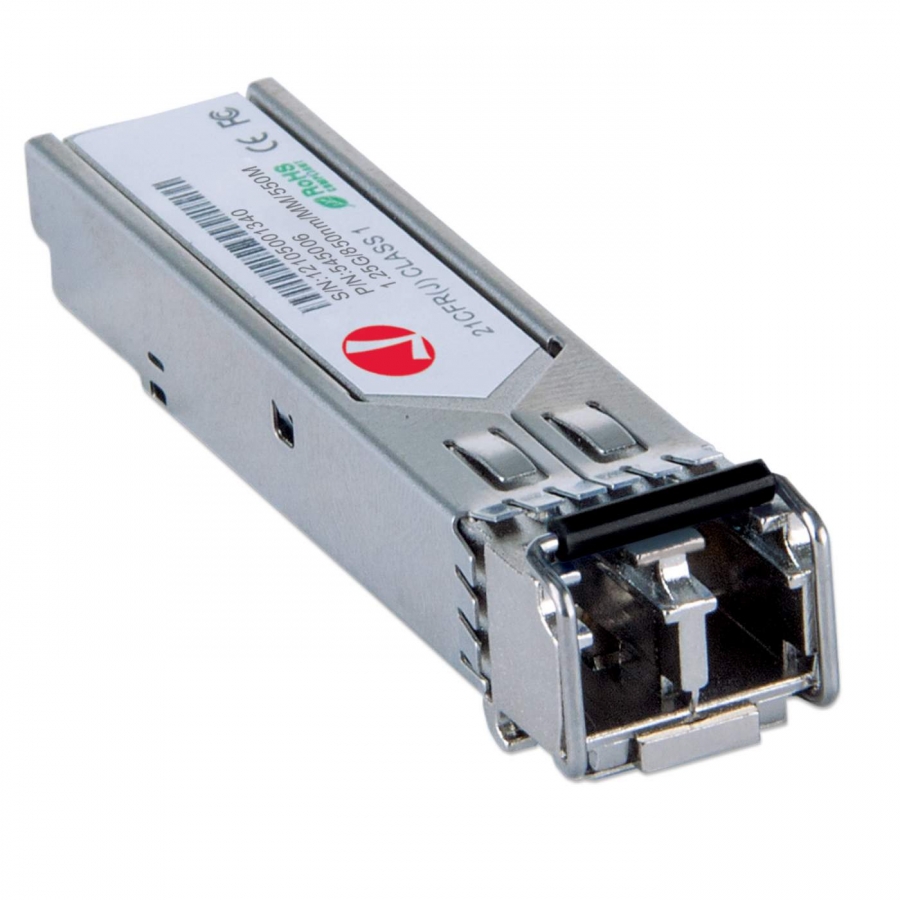

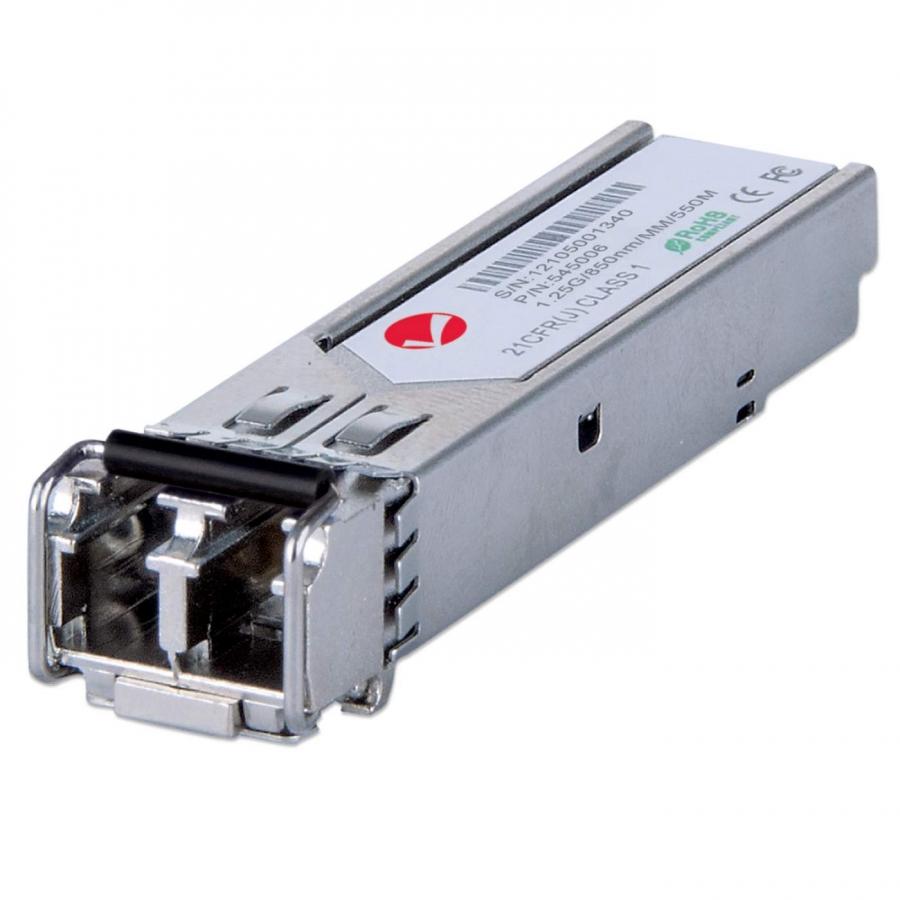

INTELLINET Transceiver Gigabit SFP Mini-GBIC Multi-Mode 550m

Reference 545006

Condition: New

More info

Gigabit Fibre SFP Optical Transceiver Module_x000D_ _x000D_ _x000D_ The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Small Size for High-Density Fibre Connections_x000D_ _x000D_ _x000D_ _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room._x000D_ _x000D_ _x000D_ _x000D_ Multi-Vendor Compatible_x000D_ _x000D_ _x000D_ _x000D_ Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided._x000D_ _x000D_ _x000D_ _x000D_ Hot-Pluggable_x000D_ _x000D_ _x000D_ _x000D_ No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market._x000D_

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	550 m
Wavelength	850 nm
Tx power (min)	-8 dBmW
Tx power (max)	-3 dBmW
Link budget	8 dB
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3z
Fiber ethernet cabling technology	1000BASE-SX
Duplex system	Full
Product colour	Aluminium
Form factor	SFP
Hot-Plug support	Y
Certification	FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
Input voltage	3.3 V
Power consumption (typical)	1 W
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Width	13 mm
Depth	55 mm
Height	12 mm
Weight	15 g
Number of products included	1 pc(s)
