INTELLINET Gigabit Ultra PoE-Splitter mit USB-C-Ausgang 45W

INTELLINET

561693

New

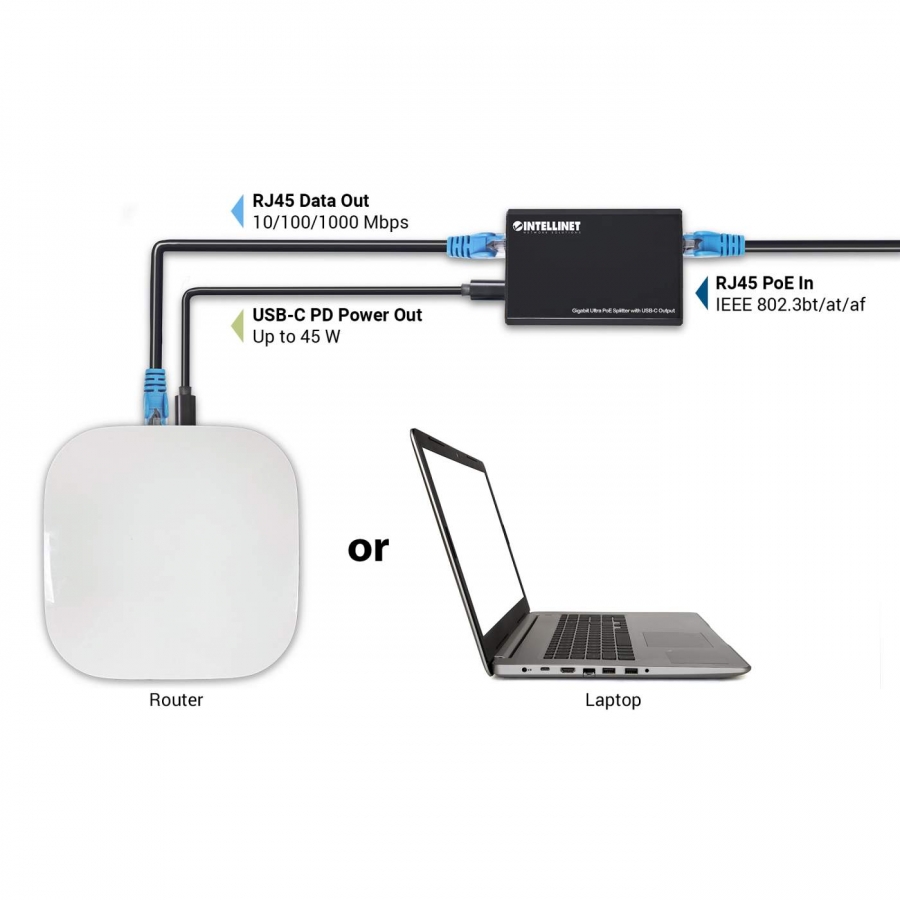

Use your existing PoE network connection to charge a USB-C powered device such as a notebook, Macbook Pro®, Ultrabook™ or tablet with this Gigabit Ultra PoE Splitter from Intellinet Network Solutions. Connected via a single RJ45 network cable to an IEEE 802.3bt-compliant PoE injector or PoE switch, this PoE++ Splitter (4PPoE) separates the Ethernet connection from the power coming through the cable and outputs them into separate ports for USB-C Power Delivery (PD) up to 45 W and Gigabit Ethernet. For maximum safety, it offers overload, overcurrent and overheat protection while being backward compatible with IEEE 802.3at and IEEE 802.3af, so the Ultra PoE Splitter can support any PoE connection.

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Cabling technology10/100/1000Base-T(X)
Cable standardCat5e
Product colourBlack
Housing materialPlastic
LED indicatorsY
CertificationFCC Class B, CE, RoHS, UKCA, NDAA
Ethernet LAN (RJ-45) ports1
Power over Ethernet (PoE)Y
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Width80 mm
Depth54 mm
Height24 mm
Weight170 g
