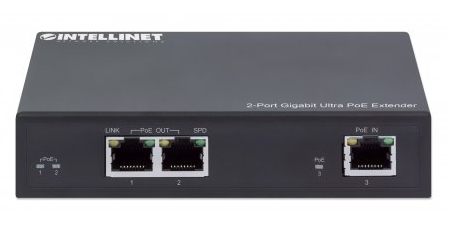

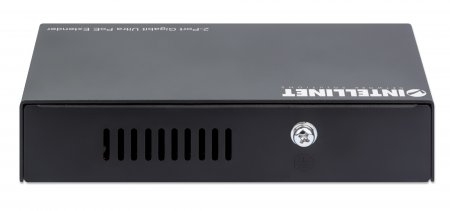

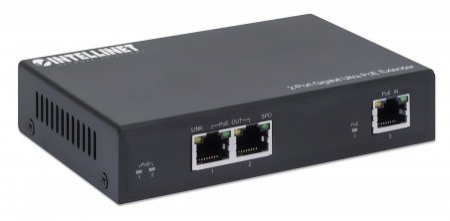

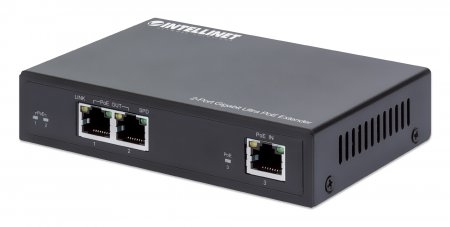

INTELLINET 2-Port Gigabit Ultra PoE-Extender 60W um 100m

Reference 561600

Condition: New

More info

The Gigabit PoE Extender — for doubling the range of a Gigabit Power over Ethernet connection The Intellinet Network Solutions 2-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to two output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.Reduced Wiring CostsThis Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.Power over Ethernet 802.3bt CompliantThe Intellinet Network Solutions 2-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 60 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).Simple InstallationThis PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).

Type	Network transmitter
Maximum transfer distance	100 m
Data transfer rate	6000 Mbit/s
Cable types supported	Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Y
Duplex system	Full
MAC address table	2048 entries
Flow control support	Y
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	2
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE
Certification	FCC A, CE
Power over Ethernet (PoE)	Y
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage range	44 - 57 V
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	20 - 85%

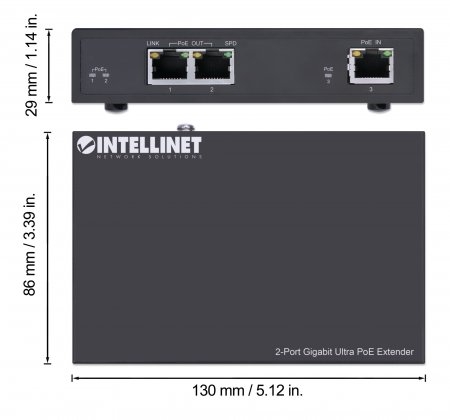

Width	130 mm
Depth	86 mm
Height	29 mm
Weight	331 g
Sustainability certificates	RoHS
Manual	Y
Harmonized System (HS) code	85176990
