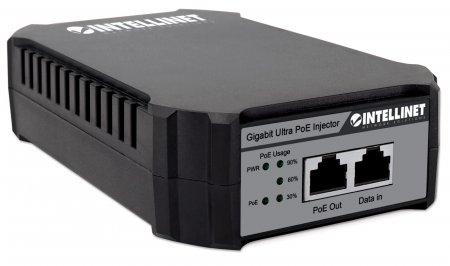

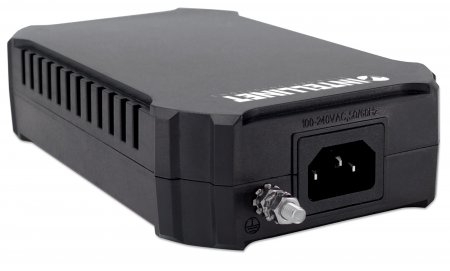

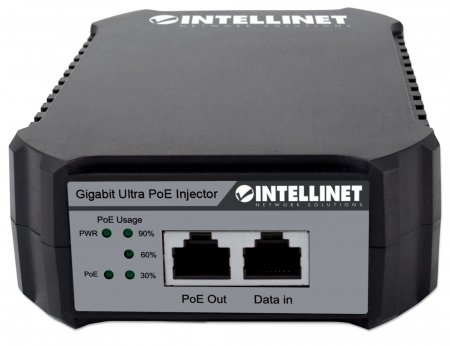

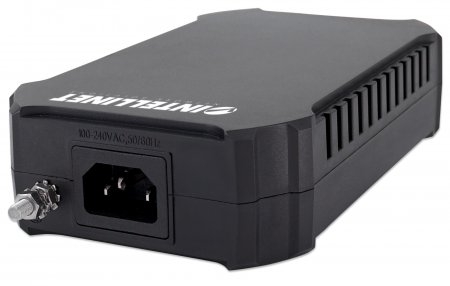

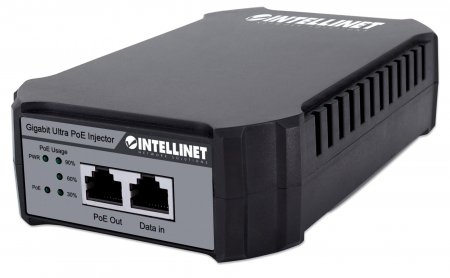

INTELLINET Gigabit Ultra PoE-Injektor 1x95W

Reference 561495

Condition: New

More info

Inject 95 Watts of Power Into Your Internet of Things (IoT) or PoE Network! IEEE 802.3bt Compatible The Intellinet Network Solutions Gigabit Ultra PoE Injector provides up to 95 W using all four pairs of twisted-pair network cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Some motorized IP cameras need more than 70 watts. The IEEE 802.3bt Ultra PoE standard is an excellent solution for bringing power to these critical systems. As many new IEEE 802.3bt powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit Ultra PoE Injector.Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices The Intellinet Network Solutions Gigabit Ultra PoE Injector helps you connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.Reduced Wiring Costs It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing network cabling to deliver DC power as well as transfer data.Protected Equipment Once DC power is connected to your networked equipment through the network cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Cable types supported	Cat5, Cat5e
Product colour	Black, Grey
Wall mountable	Y
Maximum operating distance	100 m
LED indicators	Data, PoE, Power
Power protection features	Over current, Over voltage, Short circuit
Certification	CE, FCC A
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
Total Power over Ethernet (PoE) budget	95 W
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Width	100 mm
Depth	190 mm
Height	40 mm
Weight	502 g
Number of products included	1 pc(s)
Power cord included	Y
Quick installation guide	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85044095
