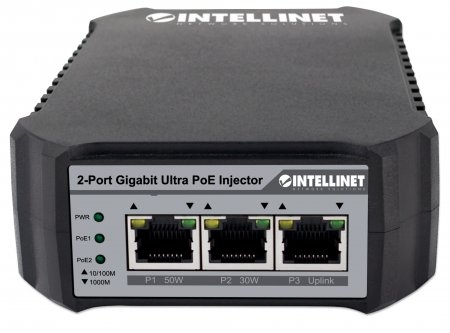

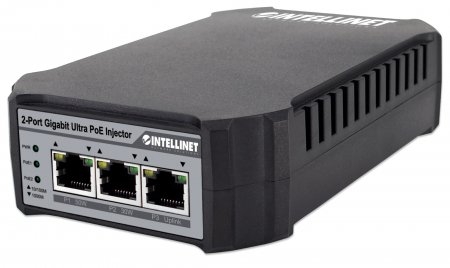

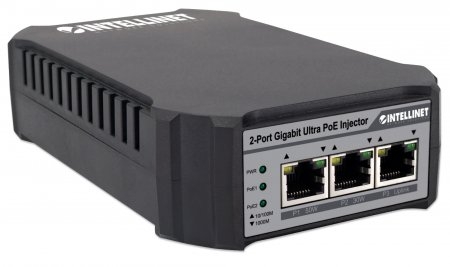

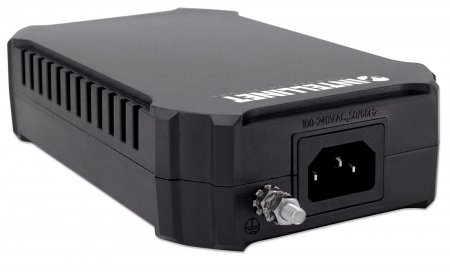

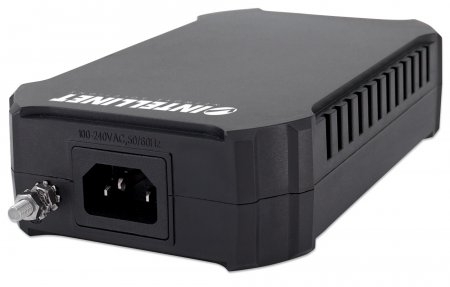

INTELLINET 2-Port Gigabit Ultra PoE-Injektor 1x50W 1x30W

Reference 561488

Condition: New

More info

Inject 80 Watts of Power Into Your Internet of Things (IoT) or PoE Network! Up to the task The Intellinet Network Solutions 2-Port Gigabit Ultra PoE Injector provides up to 50 W on the first port and up to 30 W on the second port to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. This Ultra PoE injector is an excellent solution for bringing power to these critical systems.Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices The Intellinet Network Solutions 2-Port Gigabit Ultra PoE Injector help you connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect any IEEE 802.3af/at-powered device (PD) — including a wireless access point, IP phone, network camera and more — to a switch.Switching Capabilities For maximum versatility, this injector can also be used as a 2-Port PoE Switch with multiple capabilities such as MAC address learning and a backplane speed up to 6 Gbps.Reduced Wiring Costs It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing network cabling to deliver DC power as well as transfer data.Protected Equipment Once DC power is connected to your networked equipment through the network cabling, this Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cable types supported	Cat5, Cat5e
Wall mountable	Y
Maximum operating distance	100 m
LED indicators	Data, PoE, Power
Power protection features	Over current, Over voltage, Short circuit
Certification	CE, FCC A
Ethernet LAN (RJ-45) ports	3
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
Power over Ethernet (PoE) power per port	50 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Width	100 mm
Depth	190 mm
Height	40 mm
Weight	416 g
Number of products included	1 pc(s)
Power cord included	Y
Quick installation guide	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85044095
