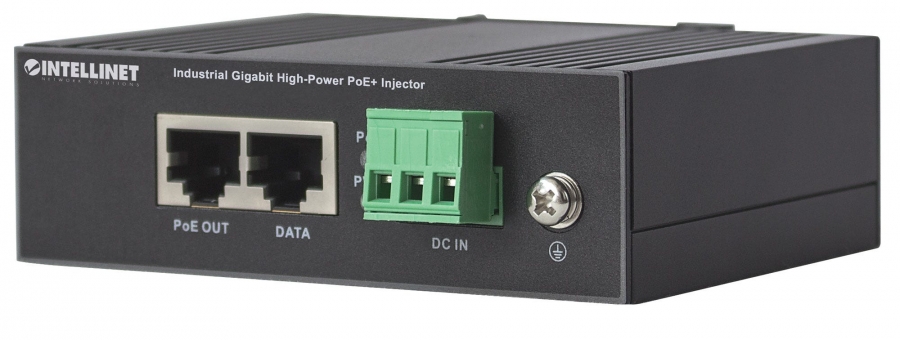

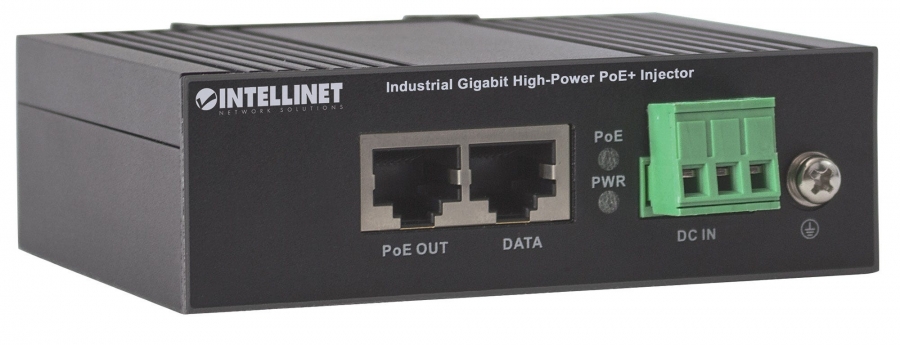

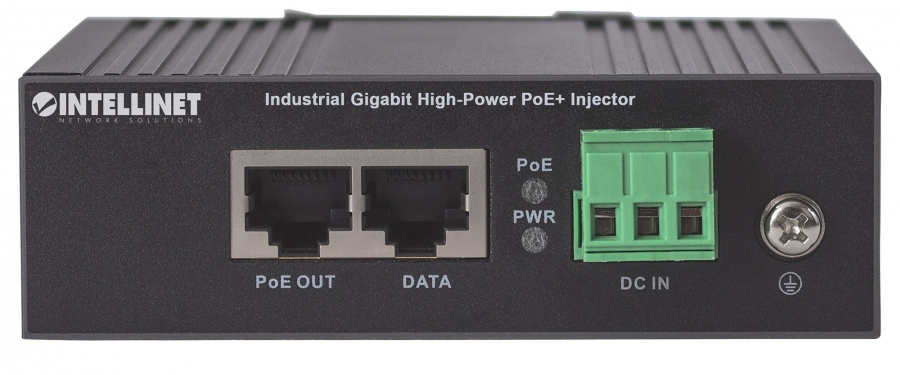

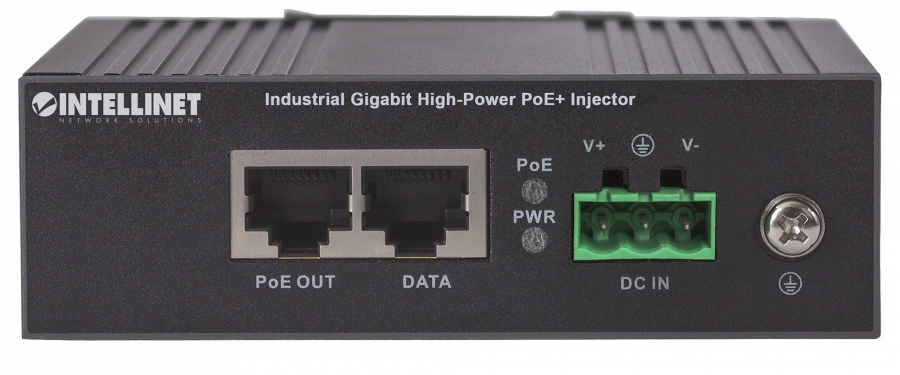

INTELLINET Gigabit High-Power PoE+Industrie-Injektor 1x30W

INTELLINET

561365

New

Get power and data over your existing LAN cable._x000D_ _x000D_ The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts, enough for most of the common PoE devices._x000D_ _x000D_ Reduce Wiring Costs_x000D_ _x000D_ This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.

Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Y
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Product colourBlack
LED indicatorsPoE, Power
CertificationFCC Class A Part 15B CE
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage56 V
Output power30 W
Input voltage45 – 56
Total Power over Ethernet (PoE) budget30 W
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 85 °C
Width32 mm
Depth78 mm
Height103 mm
Weight260 g
Number of products included1 pc(s)
ManualY
Harmonized System (HS) code85044095
