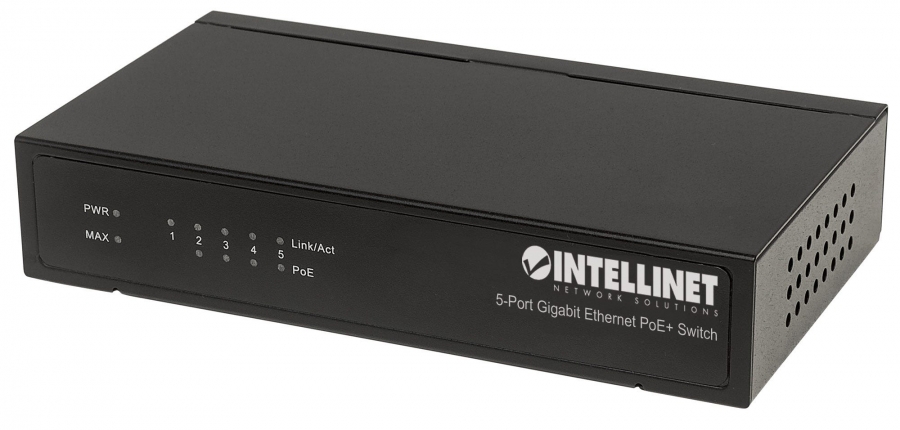

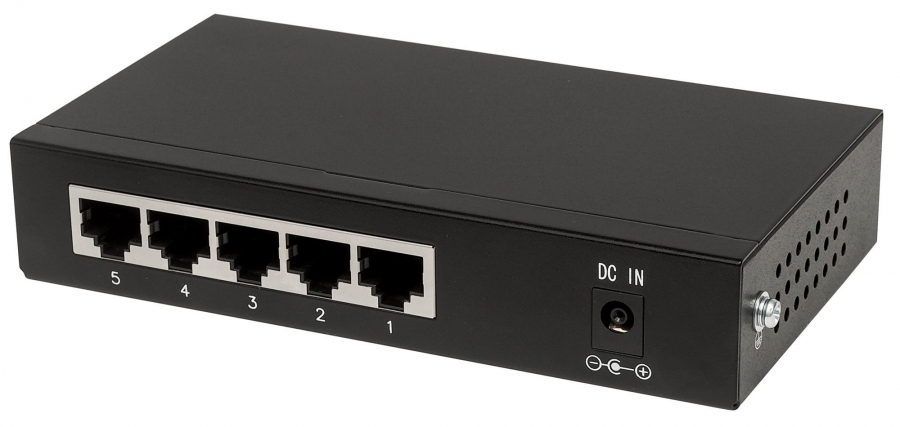

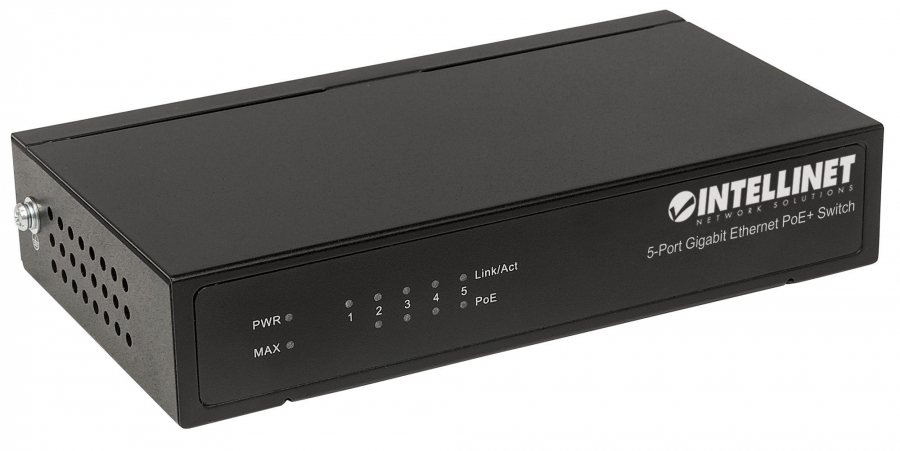

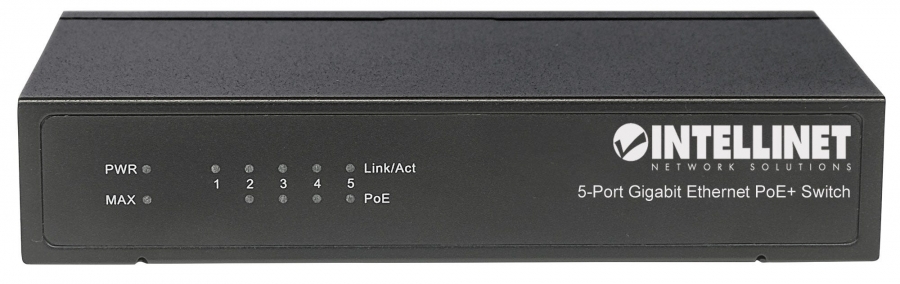

INTELLINET PoE+ Switch 5-Port Gigabit Ethernet 60W Desktop

Reference 561228

Condition: New

More info

Save installation time and money with PoE. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps. Power over Ethernet 802.3at The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. Green Ethernet Technology More often than not, a network switch does not utilize all of its ports at all times. Normally, when a computer, notebook, network printer or other network device powers down, the switch continues to consume the same amount of power as if it were active. To overcome this waste of energy, the Intellinet Network Solutions 5-Port Gigabit PoE+ Switch employs the new energy-efficient IEEE 802.3az technology, which detects link status to all connected devices and reduces the power usage of ports that are not in use. To facilitate maximum network performance, the Intellinet Network Solutions switch adjusts power output based on the length of the network cable that is connected to a particular port. When things slow down, it automatically scales back power usage to conserve energy and save money. * Total PoE budget for this switch is 60 watts. Per-port average power distribution is 15 watts; maximum per-port power usage cannot exceed 30 watts.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.192 MB
Rack mounting	N
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Certification	FCC Class B, CE

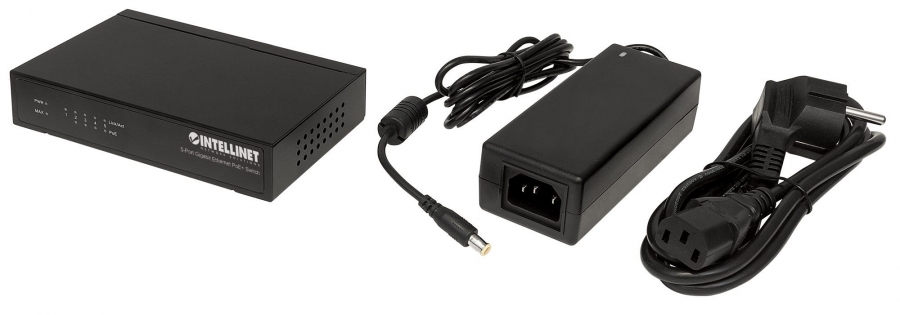

Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	70 W
Power protection features	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	5
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	60 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	140 mm
Depth	76 mm
Height	27 mm
Weight	710 g
Cables included	AC
Quick start guide	Y
Rack mount kit	Y
Harmonized System (HS) code	85176990
