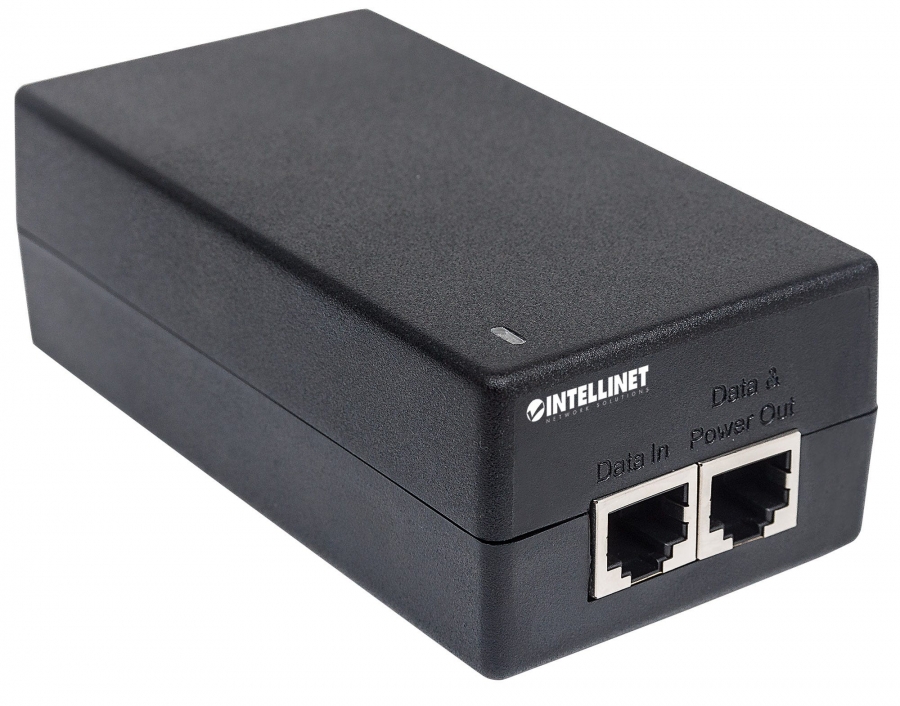

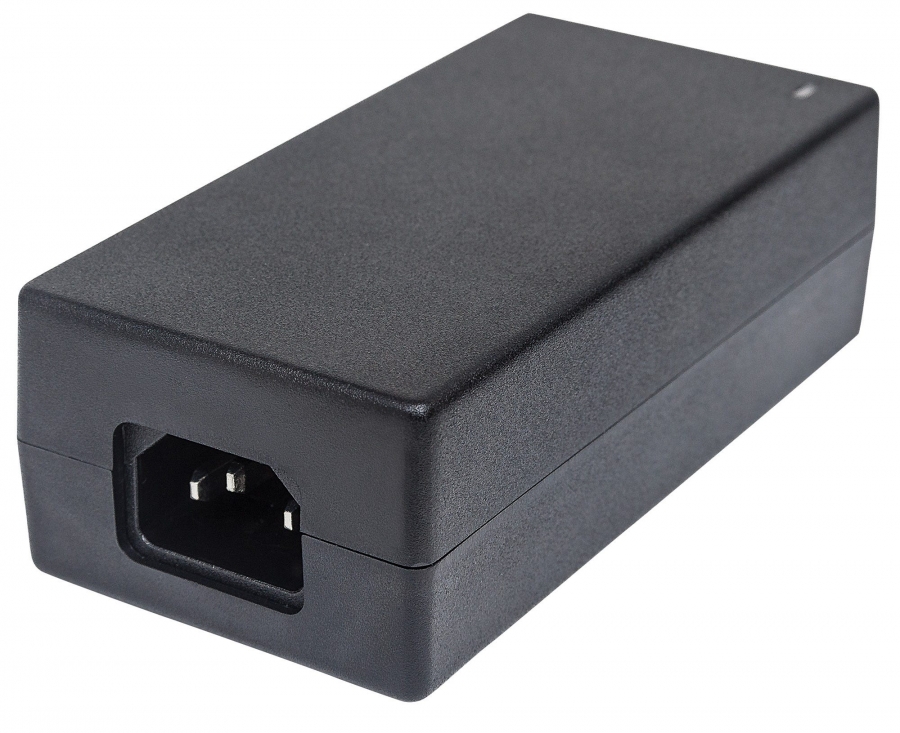

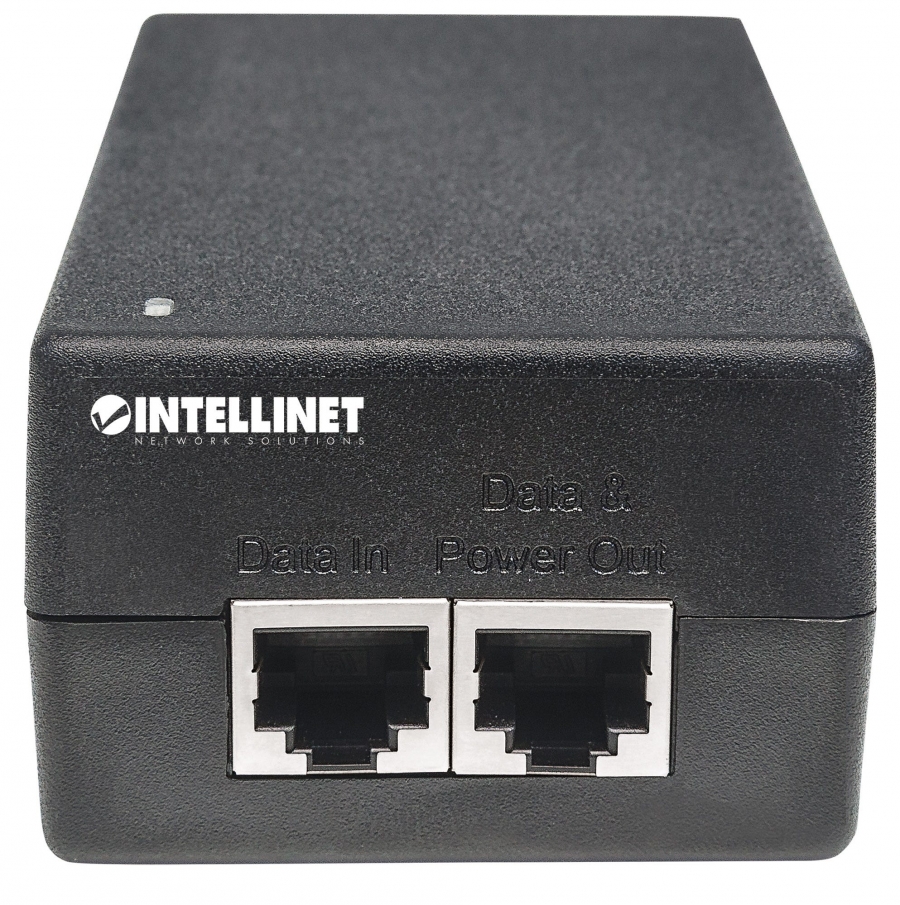

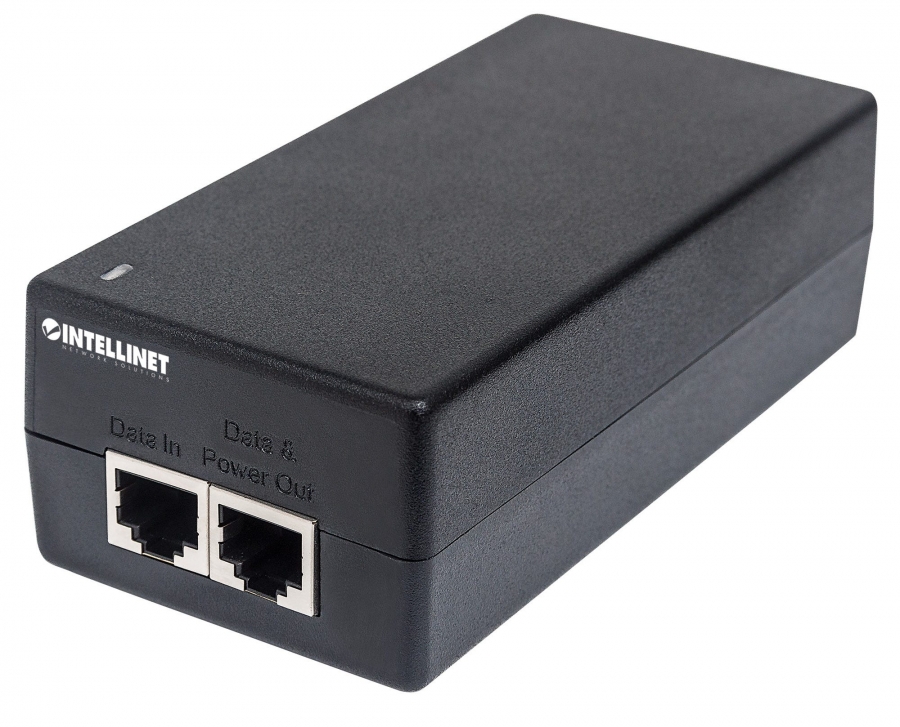

INTELLINET Injektor Gigabit Ultra PoE+ 1x60 Watt-Port

Reference 561235

Condition: New

More info

60 Watts of Power for the Internet of things (IoT)! The Intellinet Network Solutions Gigabit High-Power PoE Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. As many new powered devices enter the market, you'll be ready for them with an Intellinet Network Solutions Gigabit High-Power PoE Injector.Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices The Intellinet Network Solutions Gigabit High-Power PoE Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.Reduced Wiring Costs It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.Protect Your Equipment Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet Network Solutions PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Duplex system	Full
Cable types supported	Cat5e
Product colour	Black
Certification	FCC , CE
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	48 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Output current	1.25 A
Power consumption (max)	60 W
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 80 °C
Width	61 mm
Depth	123 mm
Height	40 mm
Weight	290 g
Number of products included	1 pc(s)
Power cord included	Y
Manual	Y
Harmonized System (HS) code	85044095
