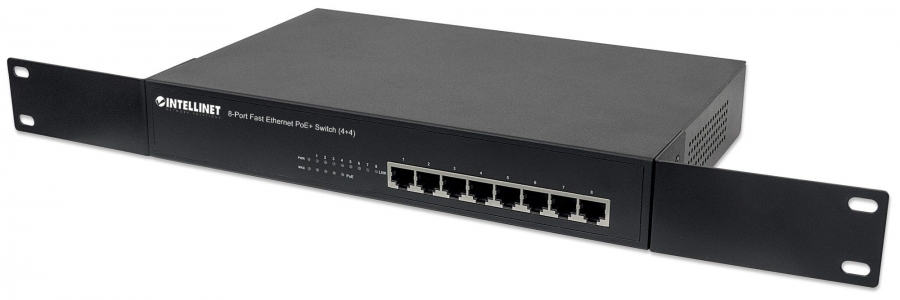

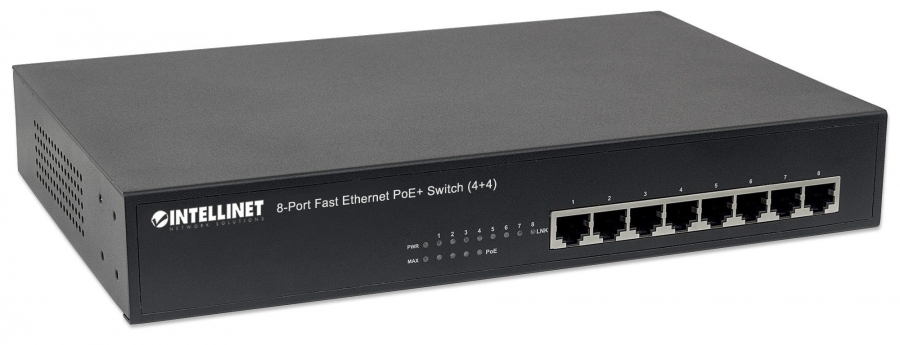

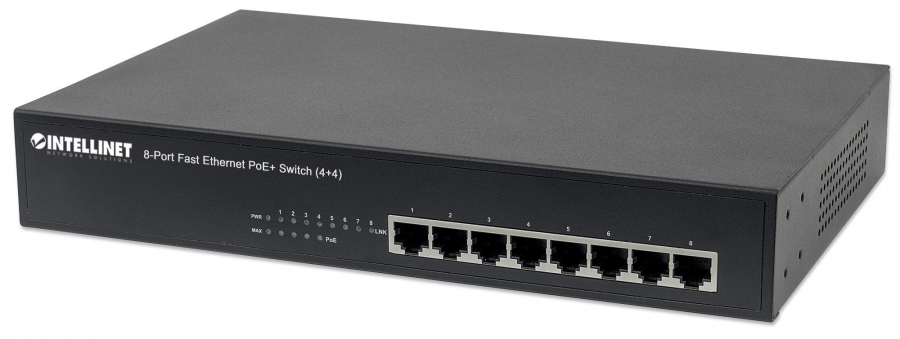

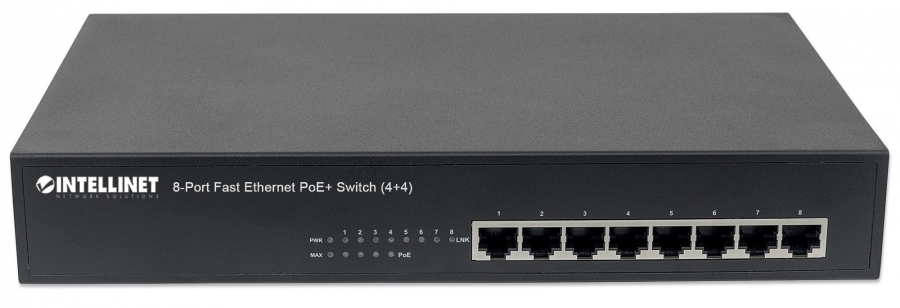

INTELLINET Switch 8x FE Rackmount 4x POE+ 4xRJ45 19

Reference 561075

Condition: New

More info

Save installation time and money with PoE. _x000D_ _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (561075) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (four of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_ _x000D_ Power over Ethernet 802.3at _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_ _x000D_ _x000D_ * Total PoE budget for this switch is 70 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

Switch type	Unmanaged
Control and Provisioning of Wireless Access Points (CAPWAP)	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	AC-in jack
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	0.1488 Mpps
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Black
Housing material	Metal
LED indicators	Activity, PoE, Power
Certification	FCC A, CE
Buffer size	768 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	80 W
Power protection features	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	70 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	280 mm
Depth	179 mm
Height	44 mm
Weight	1.5 kg
Cables included	AC
Manual	Y
Mounting brackets included	Y
Rack mount kit	Y
Harmonized System (HS) code	85176990
