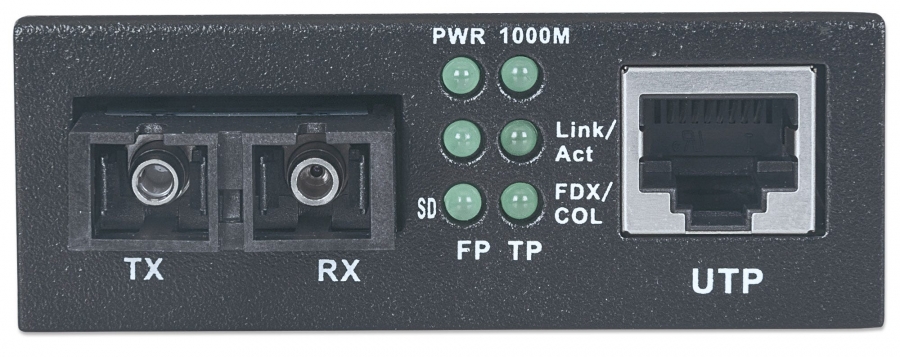

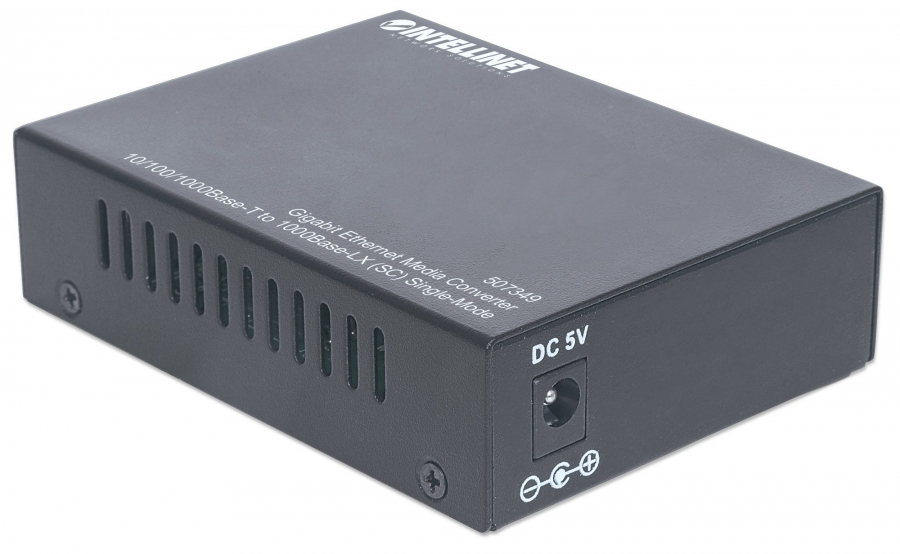

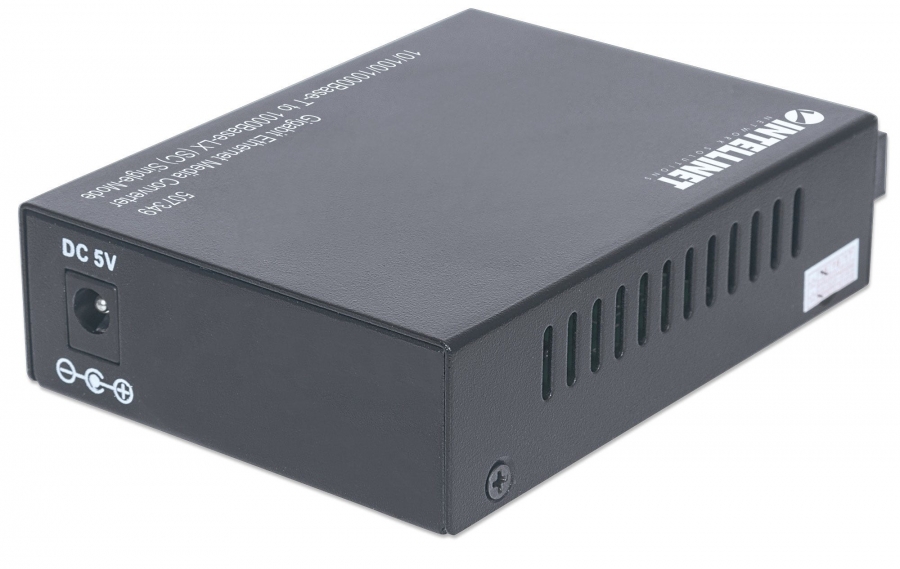

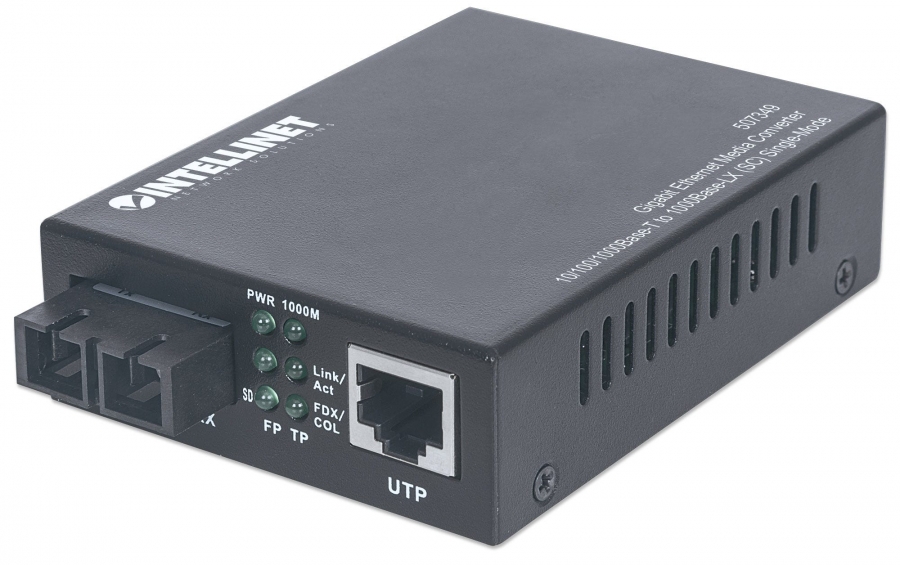

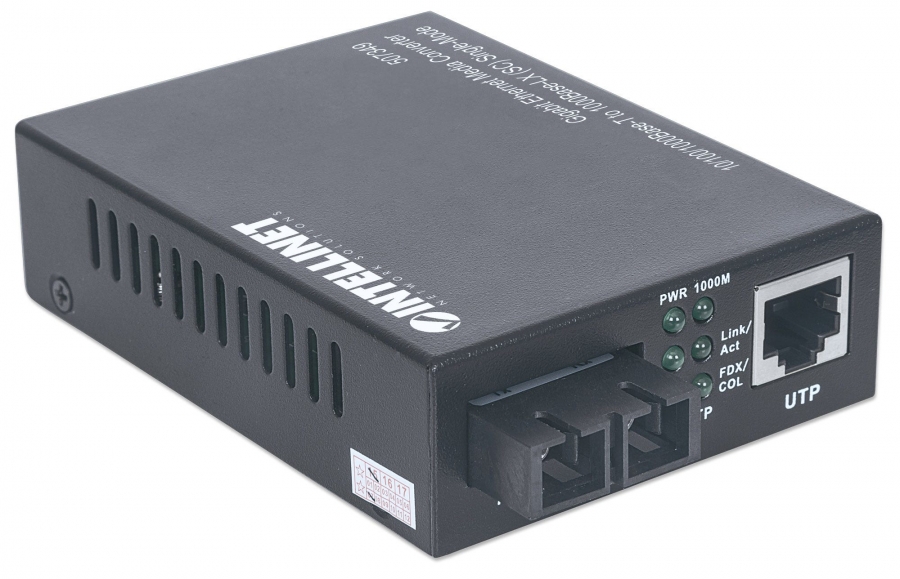

INTELLINET Medienkonverter Gigabit Singlemode 20km 1310

Reference 507349

Condition: New

More info

The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. _x000D_ _x000D_ Expands the Size of an Existing Network _x000D_ Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. _x000D_ _x000D_ Enhances the Distance between Networking Devices _x000D_ Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. _x000D_ _x000D_ Cabling Flexibility _x000D_ Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19"; rack-mountable chassis (model 507356).

Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T
Converter output interface	1000Base-LX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology	1000BASE‑LX
Duplex system	Full
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Maximum transfer distance	20000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	8.3/125,8.7/125,8/125,10/125 µm
Tx power (min)	-8 dBmW
Tx power (max)	-3 dBmW
Sensitivity	-22 dBmW
Mean time between failures (MTBF)	100000 h
Internal	N
LED indicators	Y
Product colour	Black
Housing material	Metal
Certification	FCC Class B, CE
Output voltage	5 V
Output current	1.2 A
Power consumption (max)	5 W
External power adapter	Y
Width	70 mm
Depth	105 mm
Height	26 mm
Weight	180 g
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-45 - 70 °C
Operating relative humidity (H-H)	10 - 90%
AC adapter included	Y
Manual	Y
Harmonized System (HS) code	85176990
