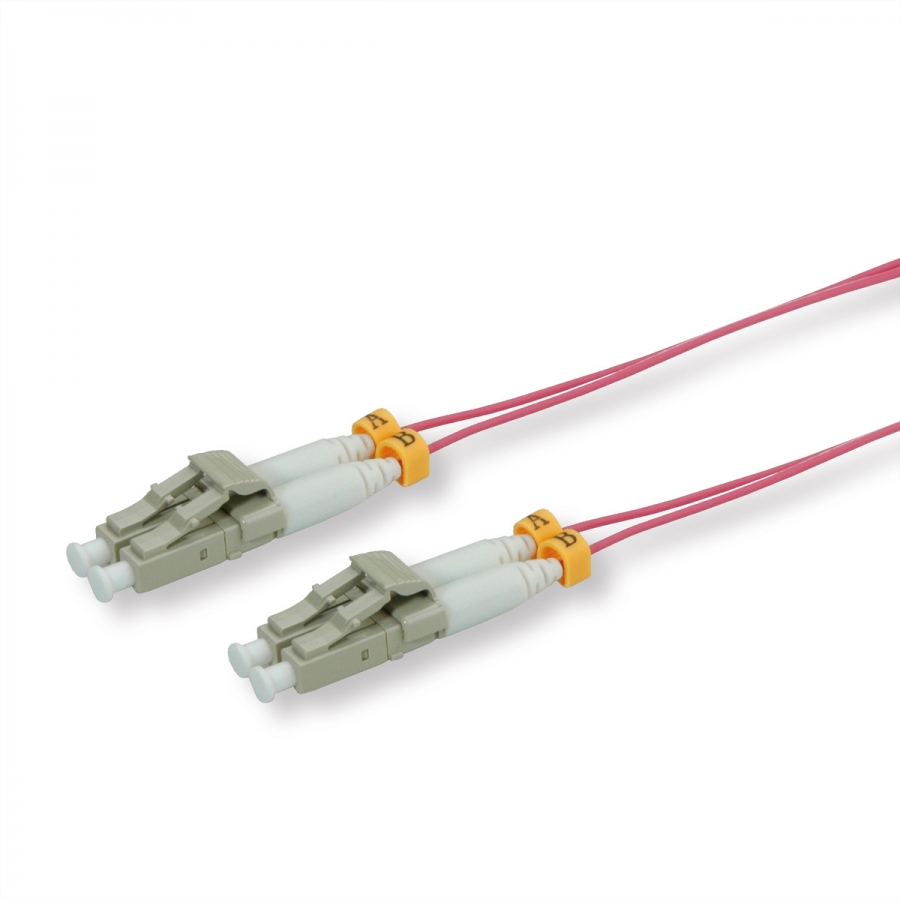

ROLINE FO SLIM Jumper Cable 50/125µm OM4, LC/LC, OD 1.2mm, violet, 2.0 m

ROLINE

21.15.9262

New

The solution for space problems in the fiber optic area of your data center!
Extra-thin ROLINE fiber optic patch cables in OM4 quality for high-performance fiber optic cabling in high-density environments.

The LC connector with its small cross-section allows high densities in the distribution area. And thanks to the extra-thin cable with a straight 1.2mm diameter, we now also have the appropriate supplement to this connector.

  • Security for the future! The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths of up to 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters - extends the system cost benefits to ultra long building backbones and medium length campus backbones.
  • Material and clothing in ROLINE quality
  • Outer diameter: 1.2 x 2.4mm
  • UPC polish
  • Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
  • Duplex cables with fiber type Multi-mode 50/125µm, OM4



ManufacturerROLINE
Product groupFibre optic cable
Product typeFibre Optic Jumper Cables OM4
Colourviolet
Length2 m
Quantity of fibre2
Conductor compositionCompact conductor
Cable typeDuplex Cable
External cable
Fibre section50/125µm OM4
Connection portsLC / LC
Side 1 Connector TypeLC
Side 2 Connector TypeLC
Kevlar strain relief
External cable diameter1.2 x 2.4 mm
Mantle of external cableLS0H
Cable LSOH
Current catalog editionC19-01.43
