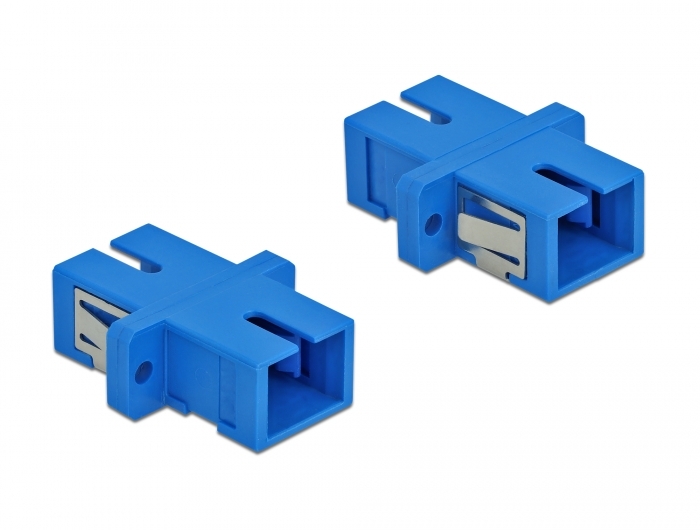

Delock Optical Fiber Coupler SC Simplex female to SC Simplex female Single-mode 4 pieces blue

DELOCK

85990

New

With this SC Simplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.

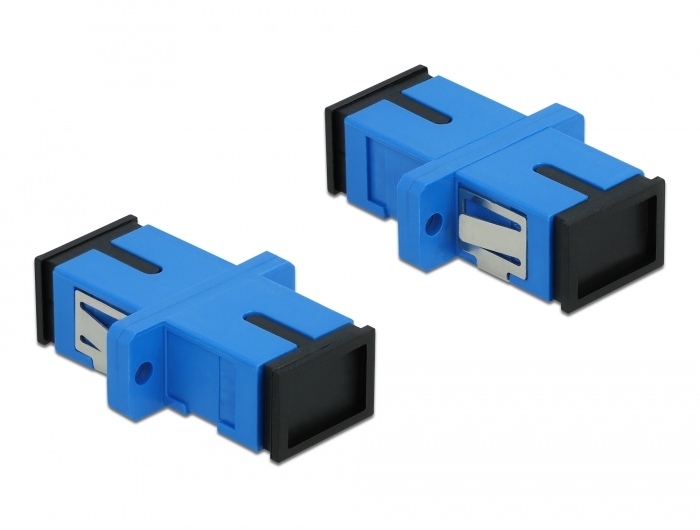

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
System requirements:
• A free SC Simplex male port
Specification:
• Connectors:
  1 x SC Simplex female >
  1 x SC Simplex female
• For single-mode fiber
• Ceramic sleeve
• With dust cover
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.4 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: blue
• Dimensions (LxWxH): ca. 27.4 x 12.7 x 9.3 mm
Package content:

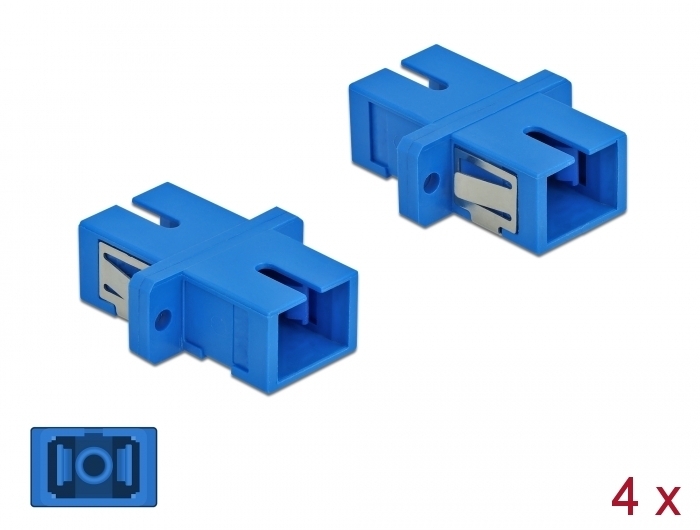

• 4 x SC Simplex coupler
Data sheet:
http://www.delock.de/produkt/85990/pdf.html?sprache=en
