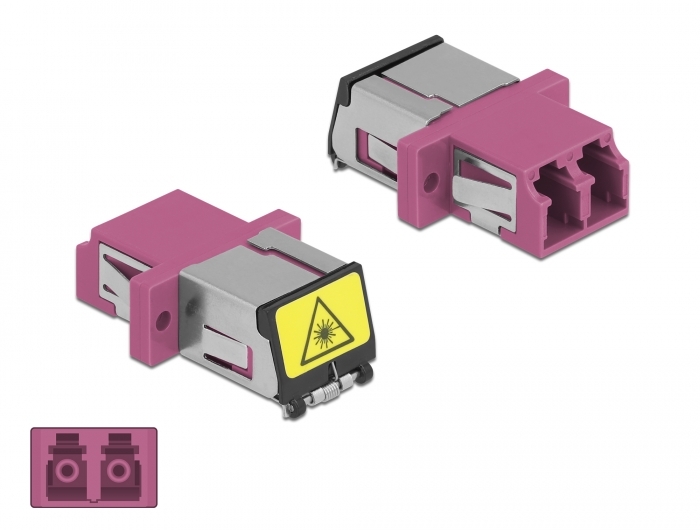

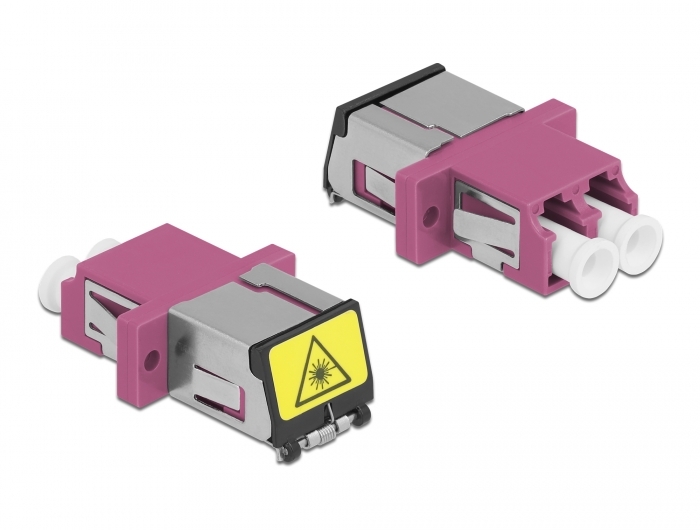

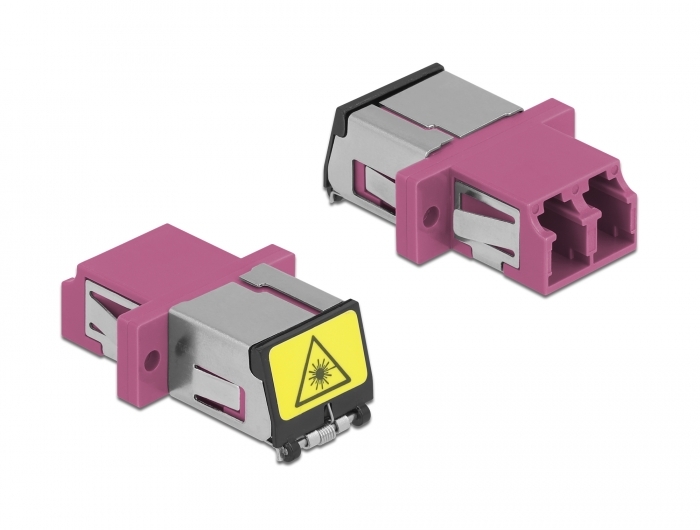

Delock Optical Fiber Coupler with laser protection flip LC Duplex female to LC Duplex female Multi-mode violet

DELOCK

86901

New

With this LC Duplex coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.

Protection against laser radiation
The integrated flip ensures protection against laser radiation.

Protection by dust cover
The coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean.
System requirements:
• A free LC Duplex plug
Specification:
• Connectors:
  1 x LC Duplex female >
  1 x LC Duplex female
• For multi-mode fiber OM4
• Ceramic sleeve
• With a laser protection flip and a dust protection cap
• Mounting via metal holder or screws
• 2 x mounting holes
• Mounting hole diameter: 2.3 mm
• Pitch of screw hole: ca. 18 mm
• Panel cut-out (WxH): ca. 13.4 x 9.5 mm
• Operating temperature: -20 °C ~ 70 °C
• Material: plastic
• Colour: violet
• Dimensions (LxWxH): ca. 29.2 x 12.7 x 9.3 mm
Package content:
• LC Duplex coupler
Data sheet:
http://www.delock.de/produkt/86901/pdf.html?sprache=en
