Delock Optical Fiber Connection Box FTTH for wall mounting for 4 x SC Simplex or LC Duplex white

DELOCK

87890

New

This optical fiber connection box for FTTH applications by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The box can accommodate up to 4 SC Simplex or LC Duplex couplings.

With splice tray

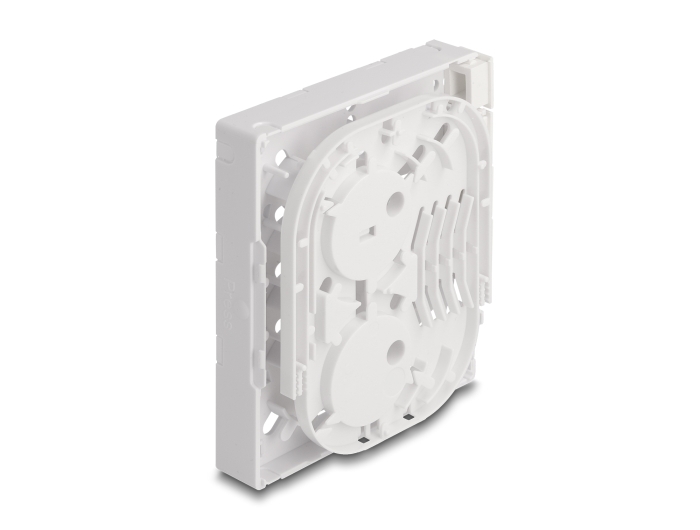

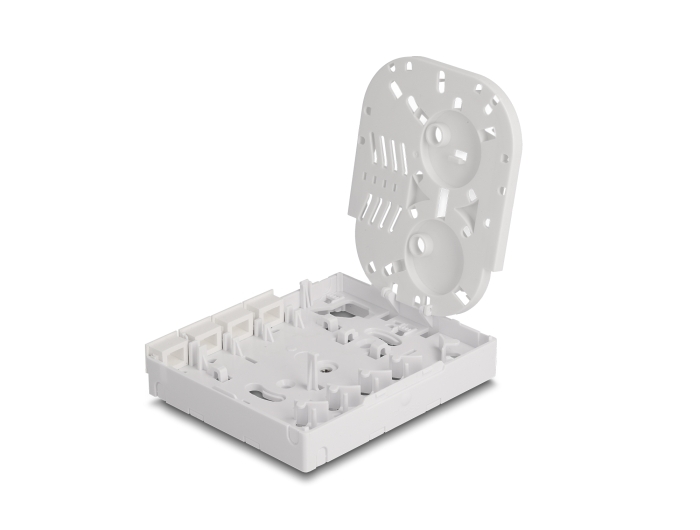

The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.
Specification:
• Optical fiber connection box for FTTH applications
• 4 slots for SC Simplex or LC Duplex couplings
• Wall mounting:
  2 x mounting holes
  Mounting hole diameter: ca. 3.5 mm
  Pitch of screw hole: ca. 62 mm

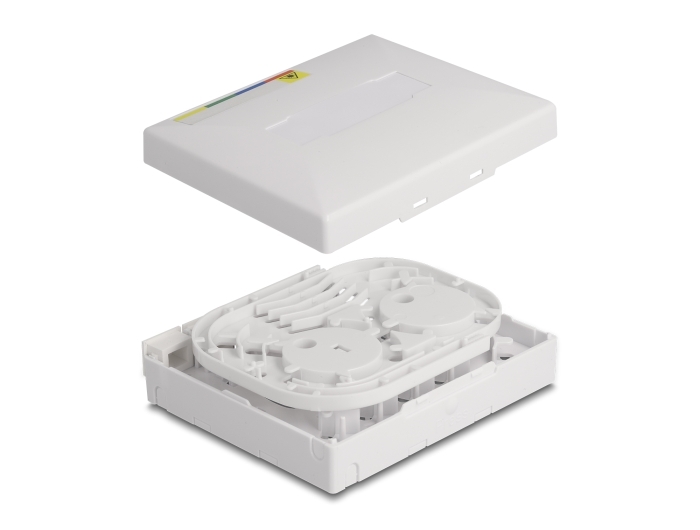

• Cover with label tap

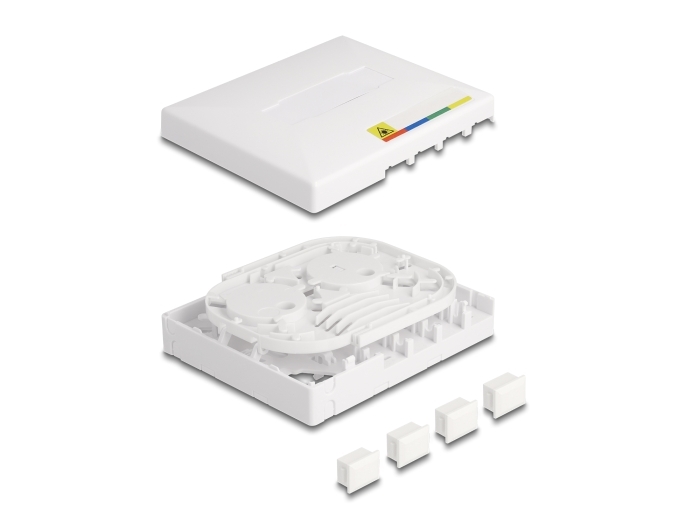

• With dust protection caps
• Colour: white
• Material: plastic
• Dimensions (LxWxH): ca. 100 x 80 x 26 mm

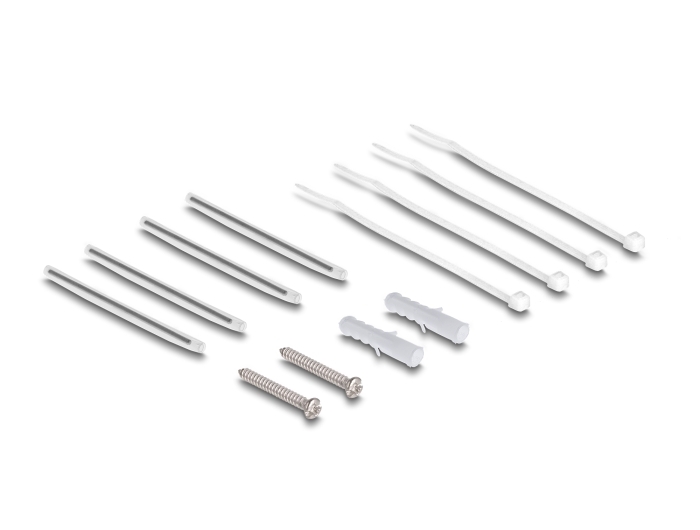

Package content:
• Optical fiber connection box
• 4 x cable tie
• 4 x dust cover
• 4 x heat shrink splice protection
• 2 x screw
• 2 x dowel
Data sheet:
http://www.delock.de/produkt/87890/pdf.html?sprache=en
