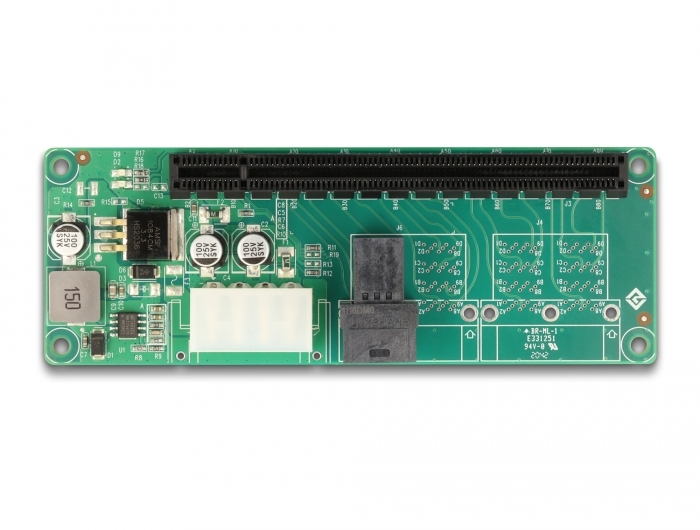

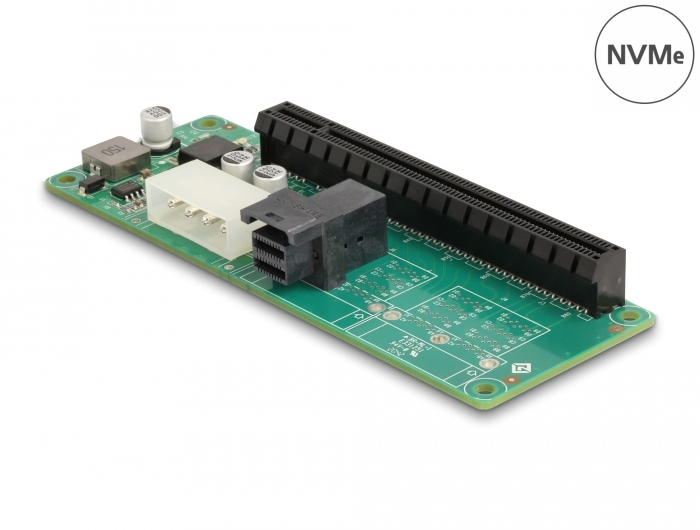

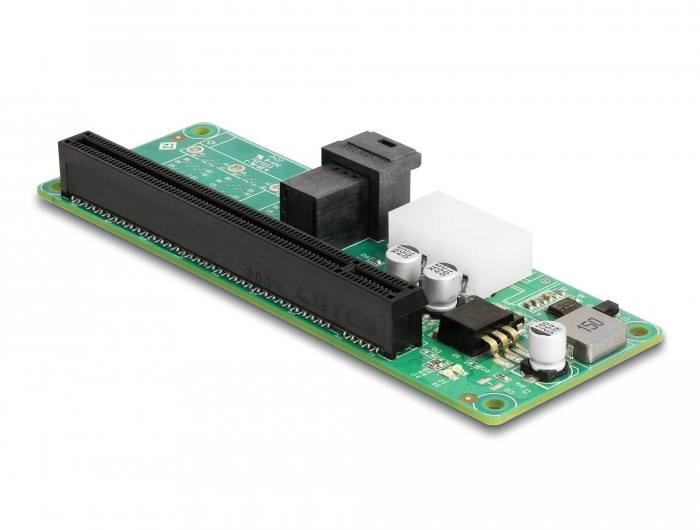

Delock Converter 1 x SFF-8643 to PCIe x16

DELOCK

64173

New

This converter by Delock can be connected via SFF-8643 interface to the system and provides a PCI Express x16 slot. Different PCI Express cards can be connected to the slot.

PCI Express x16 with 4 lanes
The converter supports four PCIe lanes on SFF-8643 port.
System requirements:
• A free SFF-8643 interface
Specification:
• Connectors:
  1 x SFF-8643 female >
  1 x 4 pin power connector
  1 x PCI Express x16 (4-Lane), V4.0
• Supports NVM Express (NVMe)
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
• Dimensions (LxWxH): ca. 121 x 43 x 18 mm
Package content:
• Converter
• User manual
Data sheet:
http://www.delock.de/produkt/64173/pdf.html?sprache=en
