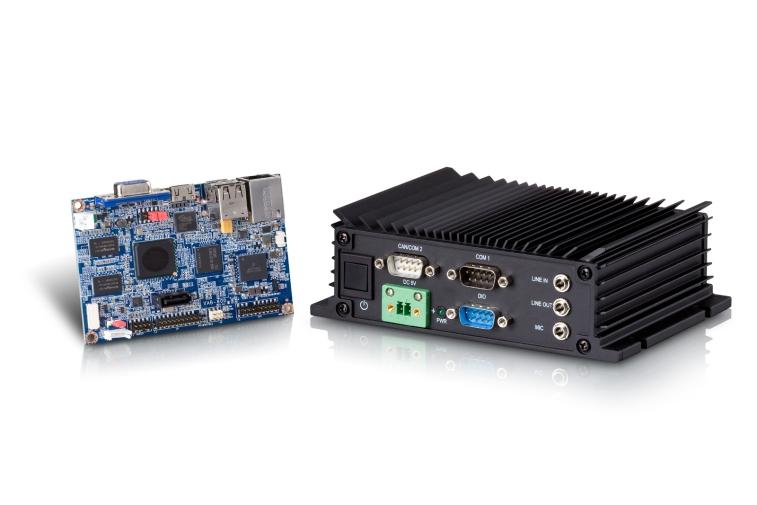

BAREBONE VIA ARM-Solution AMOS-800-1S08A1 Freescale Cortex-A8

VIA

11345

New

Only for customer with Linux or Android experience. Operating temperature: -40°C - 80°C 800MHz Freescale ARM Cortex-A8 SoC Fanless operation, and robust casting construction Supports a wide range of operating temperatures, -40°C up to 80°C Ultra-compact design (150mm x 46mm x 108mm) Extremely low power consumption, 3.14W under typical conditions Multiple mo...

More details

Description:
Only for customer with Linux or Android experience.
Operating temperature: -40°C - 80°C
  • 800MHz Freescale ARM Cortex-A8 SoC
  • Fanless operation, and robust casting construction
  • Supports a wide range of operating temperatures, -40°C up to 80°C
  • Ultra-compact design (150mm x 46mm x 108mm)
  • Extremely low power consumption, 3.14W under typical conditions
  • Multiple mounting options, wall or table and VESA mounting brackets
  • Maximum space efficiency for optimized electromagnetic compatibility
  • Android and Embedded Linux support


Specification:
Processor: 800 MHz Freescale Cortex-A8 single core i.MX537
Memory: 1 GB DDR 3 800MHz SD Ram using 128M x 16
Flash: 4 GB onboard eMMC Flash memory
Graphic: Supports two integrated graphics processing, units an OpenGL,
ES 2.0 3D graphics accelerator and an OpenVG 1.1 2D graphics accelerator
CRT Interface: 1 x Onboard VGA port
HDMI Interface: Silicon image Sil9024A HDMI transmitter
1 x Onboard HDMI port
Ethernet:
Controller: SMSC Lan8720A 10/100 PHY transceiver with HP Auto-MDIX support
Interface: 1 x RJ45 connector
HD Audio:
Controller: Freescale SGTL5000 low power stereo codec with Headphone AMP
Interface: SupportsLine-in, Line-out, Mic-in connectors
Serial:
USB: SMSC USB 2.0 high speed 4-port hub controller, 4 x USB 2.0 ports
3 x USB connectors
1 x USB pin header supporting optional VIA 802.11n WiFi module VNT9271
COM: 1 x d-Sub 9-pin female connector
CANBus:
Controller: TISN65HVD1050 EMC optimized CAN transceiver
Interface: 1 x D-Sub 9-pin female connector
GPIO: 1 x D-Sub 9-pin female connector (GPI x4 + GPO x4)
Storage interface: 4GB onboard eMMC Flash memory
1 x Onboard Micro SD connector
System indicator:
1 x Red colour LED for power
1 x Green colour LED for HDD activity
Watch Dog Timer: Integrated watch dog timer supporting two comparision pionts. First comparision point can interrupt ARM and second comparision point is capable of generating external interrupts onWDOG line.

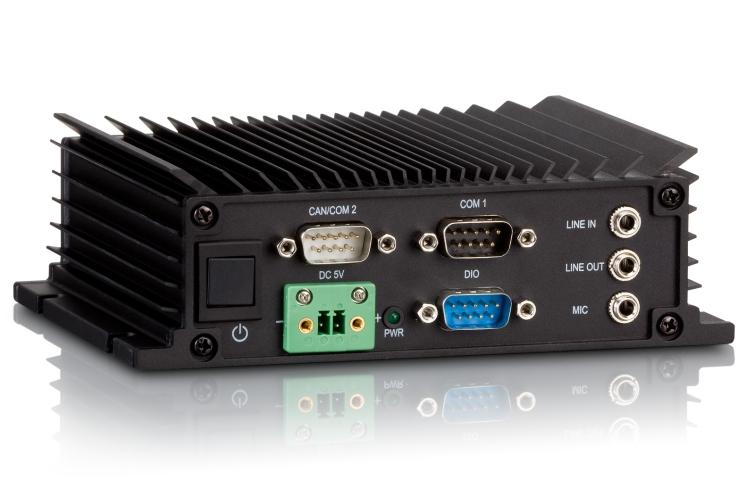

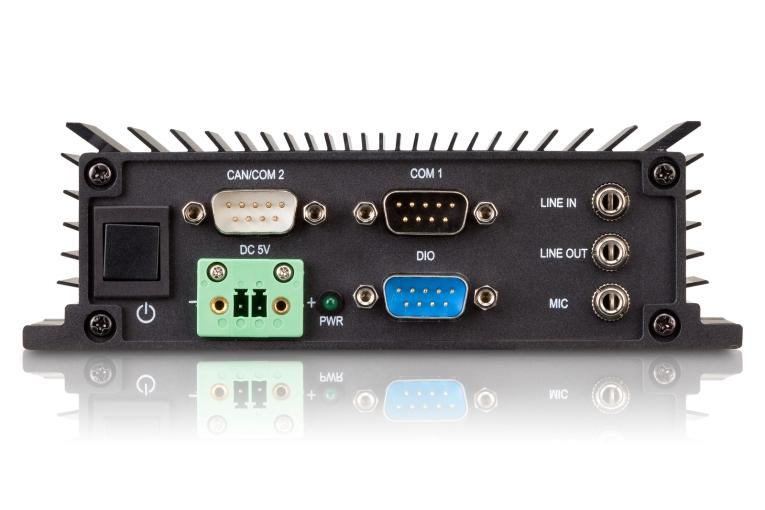

Front Panel I/O:
1 x Com port
1 x CANBus connector
1 x GPIO connector
3 x 3,5 phone jack
1 x HDD LED
1 x Power LED
1 x Power on/off switch
1 x DC power input connector by 2-pole phoenix connector

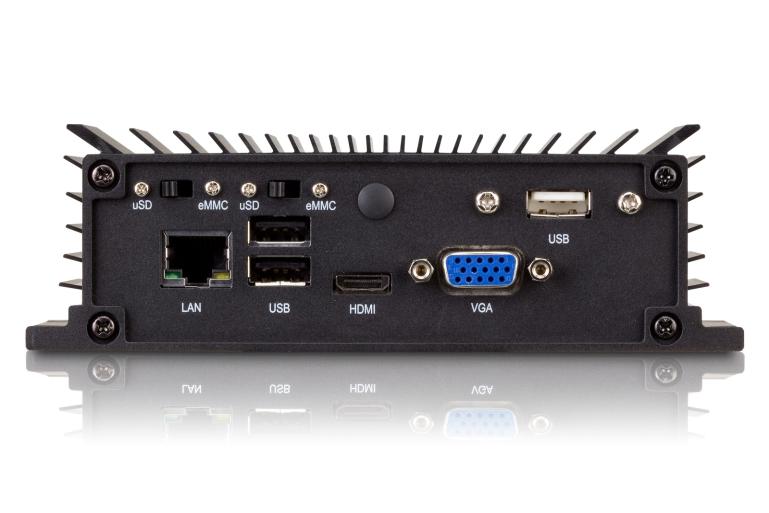

Rear Panel I/O:
1 x HDMI port
1 x VGA port (1 x DP15)
1 x Lan 10/100
3 x USB 2.0 connectors
1 x eMMC/Micro SD boot switch

Bottom opening cover: Buttom removeable door plate to access the Micro SD flash drive
Input Voltage: DC 5V
Power input connector: 1 x DC power input with DC jack
Power consumption: Typical 3.14W
Construction:
Aluminium top cover
Metal chassis housing
Removeable left and right of wall mountable bracker
VESA: Optional VESA mounting bracket 75mm x 75mm and 100mm x 100mm
Dimension: 150mm (W) x 45mm (H) x 108mm (D)
WiFi: Optional VIA 802.11n Wireless module VNT9271
Operating temperature:
With VGA output -40°C - 80°C
With HDMI output -20°C - 80°C
Storage temperature: -20°C - 70°C
Vibation loading during operation: With onboard eMMC 5Grms, IEC60062-2-64, random, 5-500MHz 1Oct/min, 1hr/axis
Shock during operation: With onboard eMMC 50G, IEC60068-2-27, half size, 11ms duration
EMC aprroved: CE, FCC, ClassA
For operating system: Androit 2.3 and embedded Linux 2.6

System requirements:

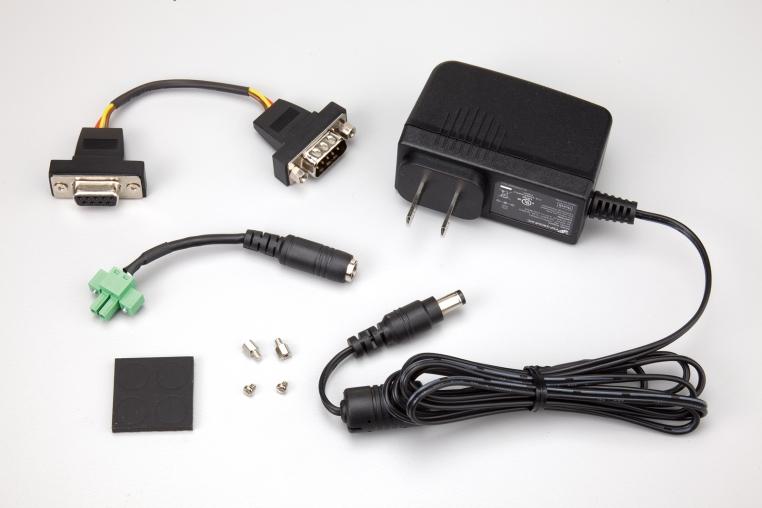

Package content:
