Delock Connector eSATApd Jack Bulkhead eSATApd + USB 2.0

DELOCK

652970

New

This eSATApd connector by Delock can`ll soldered directly to printed circuit boards. It is used to connect various devices, such as 2.5 or 3.5 disks. The gold contacts laterally support a supply voltage of up to 12V, thus you need for the connected device no additional power supply. Due to the multifunctional power over eSATA interface, there are three different connection options: 1. Power ov...

More details

Description:

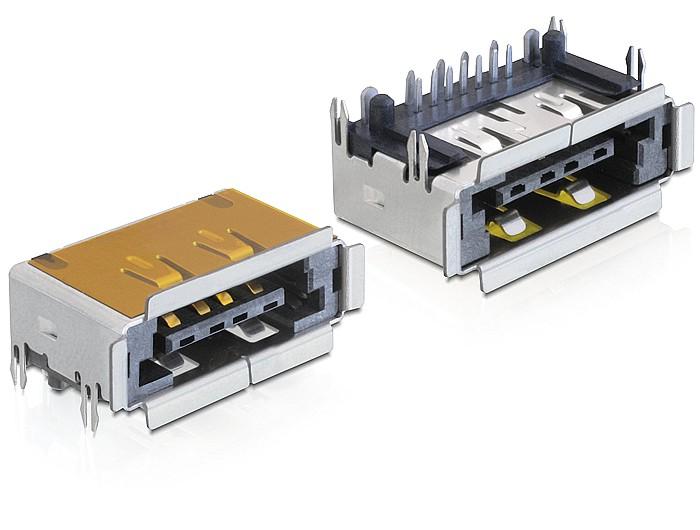

This eSATApd connector by Delock can`ll soldered directly to printed circuit boards. It is used to connect various devices, such as 2.5 or 3.5 disks. The gold contacts laterally support a supply voltage of up to 12V, thus you need for the connected device no additional power supply. Due to the multifunctional power over eSATA interface, there are three different connection options:

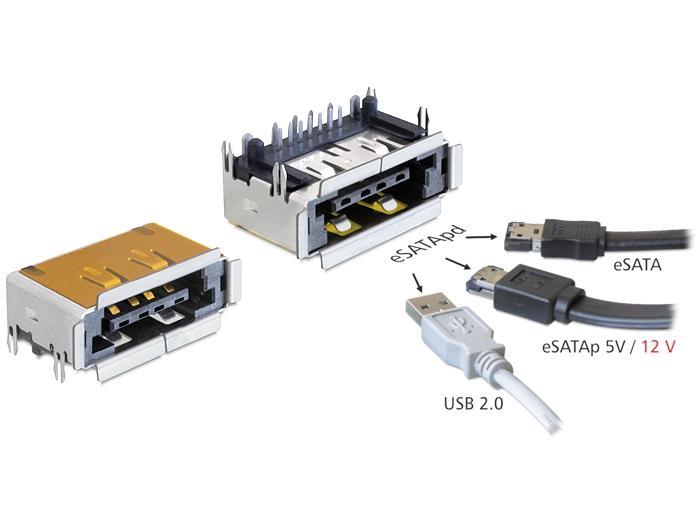

1. Power over eSATA Port (5 V / 12 V)
2. USB Port
3. eSATA Port + USB Port for power supply


Specification:
• Connectors: eSATA + USB 2.0 jack > 11 pin DIP Typ
• Voltage: 5 V / 12 V
• THT PCB assembly
• USB solder pins: Ø 0.6 mm, pitch: 2.0 mm
• eSATA solder pins: Ø 0.44 mm, pitch: 1.27 mm
• Housing material: thermoplastic high temp UL 94-V0
• Operating temperature: -40 °C ~ 85 °C
• Contact area (eSATA + USB): gold plated
• Dimension (LxWxH): 18.7 mm x 11.35 mm 8.68 mm


System requirements:
• PCB

Package content:
• Connector
