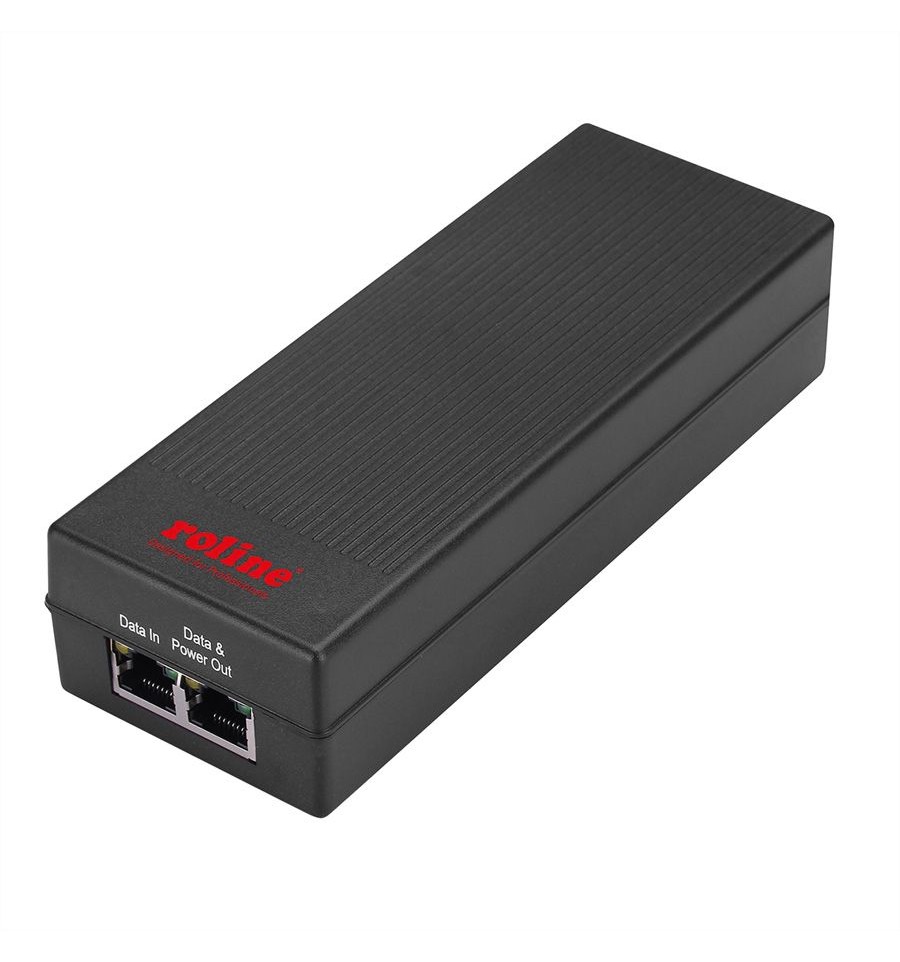

ROLINE Gigabit PoE Injector, 30W

ROLINE

21.13.1199

New

The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.

  • Supply of data and power into the network cables
  • Connectors: 1x RJ-45 port (Data In, Data input), 1x IEC power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
  • Compatible with 802.3af and 802.3at
  • Power via PoE: up to 30W
  • LED indicators for Power, Link / Act. and PoE
  • Output voltage: 802.3af standard (46V-52V DC)

  • Contents: Injector, manual


ManufacturerROLINE
Product groupnetwork switches
Product typePoE-Injector
Power over Ethernet (PoE)PoE
Quantity of PoE ports1
Max. Output power (PoE)30 Watt
Current catalog editionC17-NEW

PoE LAN devices
