Delock SATA 6 Gbs DOM Module 256 GB MLC SATA Pin 8 power

DELOCK

54778

New

This SATA DOM module by Delock is especially suitable for use in indutrial PCs und Server. Advantage: No additional power supply is required as power is provided via the SATA pin 8 connector. To use this application, a motherboard with SATA pin 8 connector is needed. The SATA pin 8 connector on the motherboard is of yellow colour. If no SATA pin 8 connector is available, this module can...

More details

Description:

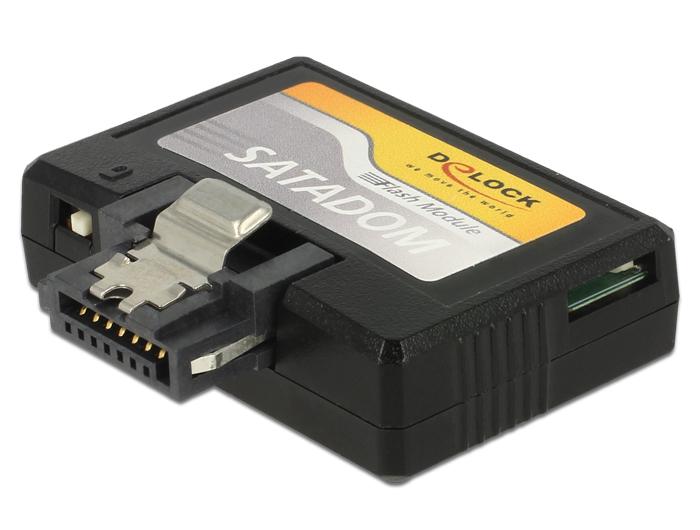

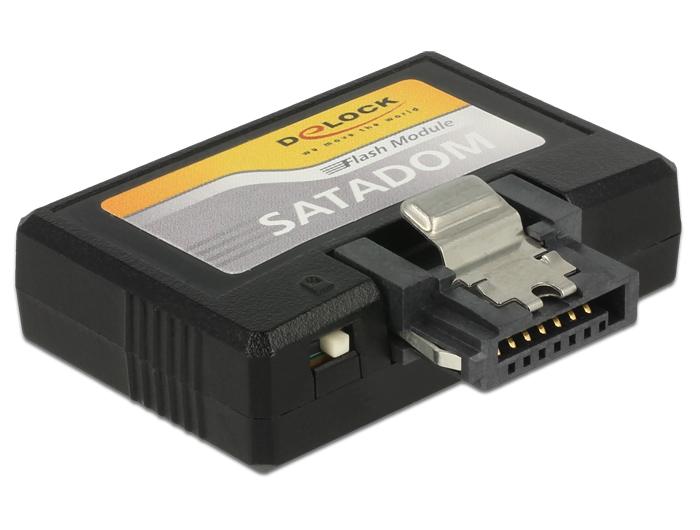

This SATA DOM module by Delock is especially suitable for use in indutrial PCs und Server.

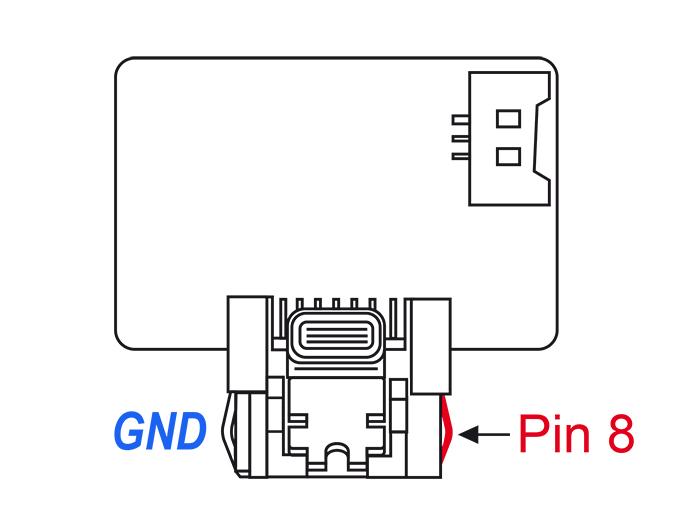

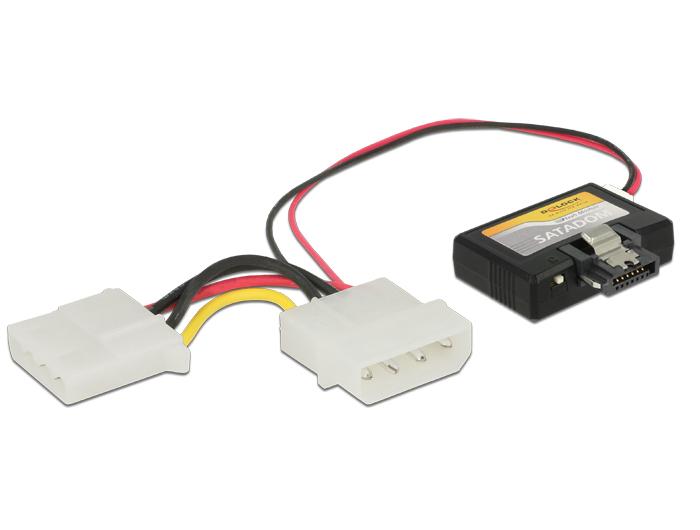

Advantage: No additional power supply is required as power is provided via the SATA pin 8 connector. To use this application, a motherboard with SATA pin 8 connector is needed. The SATA pin 8 connector on the motherboard is of yellow colour. If no SATA pin 8 connector is available, this module can also be used via the standard SATA connector. For this purpose, the power supply is provided via the 3 pin power connector.



Here you find a overview of some Mainboards with Pin 8 power support

Gigabyte MX31-BS0
Gigabyte MC20-S10
Gigabyte MB10-DS0
Gigabyte MB10-DS3
Gigabyte MB10-DS4
Supermicro X10 series
Supermicro X11SSV-Q
Supermicro X11SBA-F
Supermicro X11SBA-LN4F
Supermicro X10SDV series


Specification:
• Capacity: 256 GB
• Interface: SATA 6 Gb/s
• Supports SATA pin 8 power
• Chip: Toshiba
• Flash type: MLC
• Maximum performance: 520 MB/s read, 340 MB/s write
• Maximum write cycles: 3000
• Maximum power consumption: 2.39 W (5 V x 478 mA)
• Write protect: yes
• ATA security: yes
• S.M.A.R.T.: yes
• Thermal sensor: yes
• Dimensions (width x length x height): 37.17 x 31.50 x 10.20 mm
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 ms
• MTBF: >3 million hours
• Operation temperature: 0 °C ~ 70 °C
• Storage temperature: -55 °C ~ 95 °C

System requirements:
• A free SATA 8 pin or SATA 7 pin connector
• For SATA 7 pin: power supply with a free 4 pin power connection

Package content:
• SATA DOM module

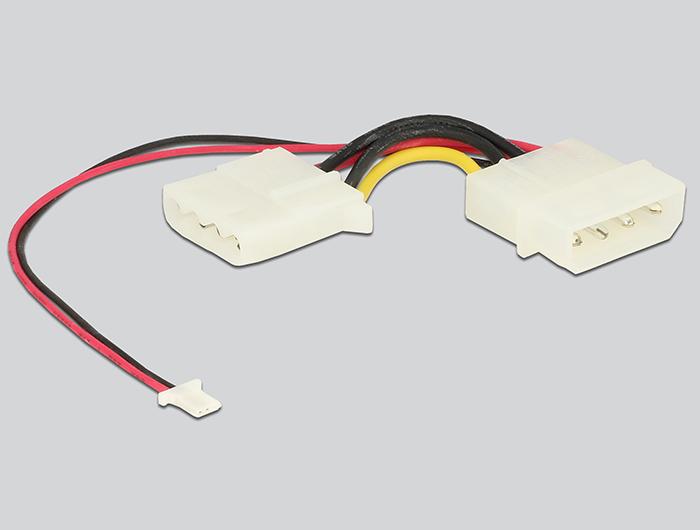

• Power cable
