Delock Converter IDE 44 pin mSATA with 2.5 Frame

DELOCK

62477

New

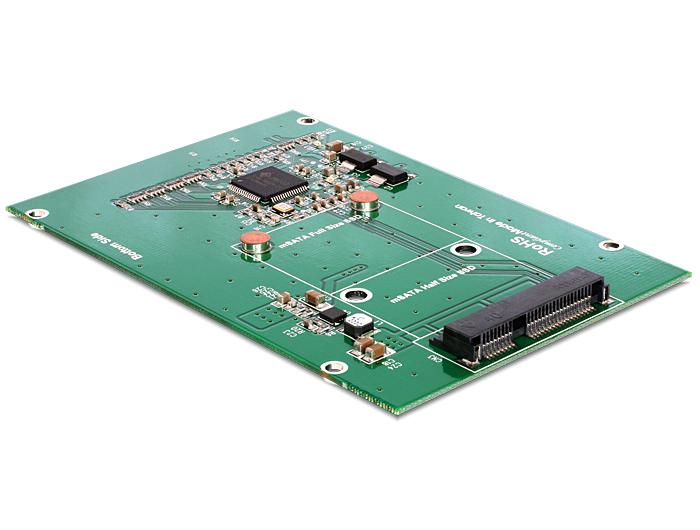

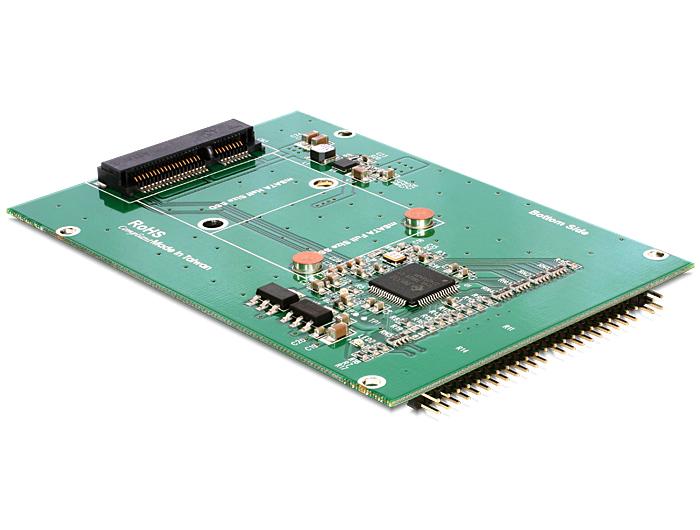

This Delock converter enables you to connect a mSATA SSD in half size or full size format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an IDE 44 pin interface.

More details

Description:
This Delock converter enables you to connect a mSATA SSD in half size or full size format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an IDE 44 pin interface.

Specification:
• Form factor: 2.5″
• Connector:
1 x IDE 44 pin male
1 x 4 pin power IC 1.4 MHz 5.5 V
1 x mSATA slot (half size / full size)
• For 3.3 V mSATA mdule
• Supports ATA/ATAPI-7
• Supports ATA/ATAPI Ultra DMA mode 0, 1, 2, 3, 4, 5, 6, 7
• Supports ATA/ATAPI PIO mode 0, 1, 2, 3, 4
• Bootable
• Operating temperature: 0 °C ~ 70 °C
• OS independent, no driver installation necessary

System requirements:
• A free IDE 44 pin interface

Package content:
• Converter

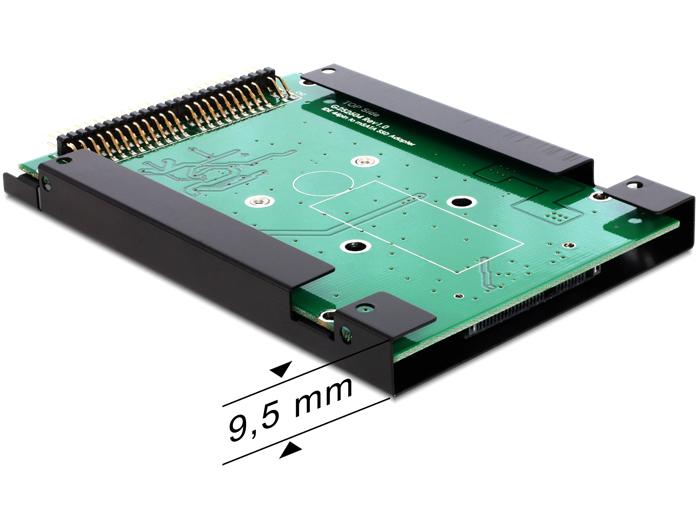

• 2.5″ frame

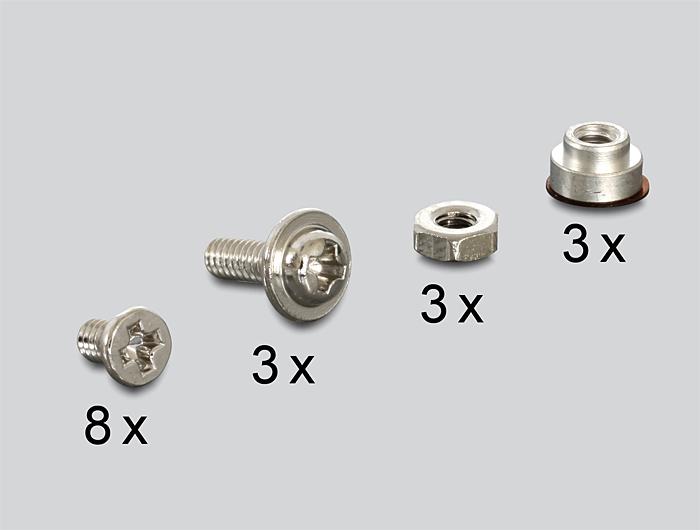

• Screws, nuts, spacers
