Delock 3.5 Converter 4 x SATA 7 Pin 4 x M.2 NGFF

DELOCK

62554

New

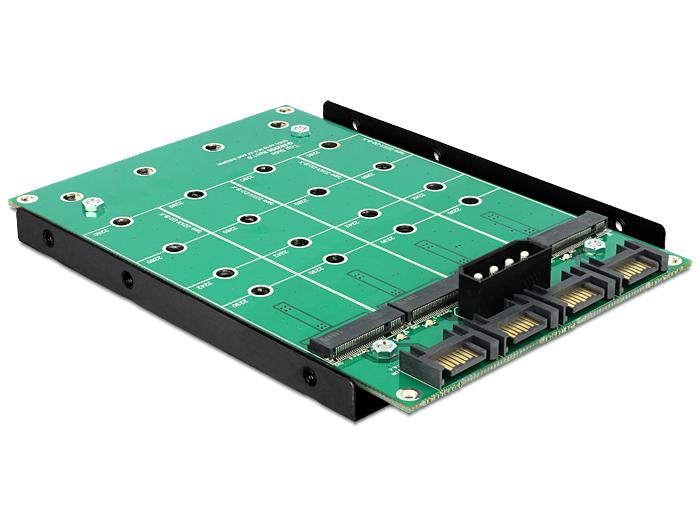

This Delock converter enables you to connect up to four M.2 NGFF SSDs in 2280, 2260, 2242 and 2230 format which can be used as a 3.5″ HDD. The converter can be installed into your system internally through an SATA 7 pin interfaces, therefor you have to connect one SATA cable with your system for each connected M.2 module.

More details

Description:
This Delock converter enables you to connect up to four M.2 NGFF SSDs in 2280, 2260, 2242 and 2230 format which can be used as a 3.5″ HDD. The converter can be installed into your system internally through an SATA 7 pin interfaces, therefor you have to connect one SATA cable with your system for each connected M.2 module.

Specification:
• Connector:
4 x SATA 7 pin male
1 x Molex 4 pin power connector
4 x 67 pin M.2 NGFF key B slot
• Interface: SATA
• Form factor: 3.5″
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and
2230 with key B or key B+M based on SATA

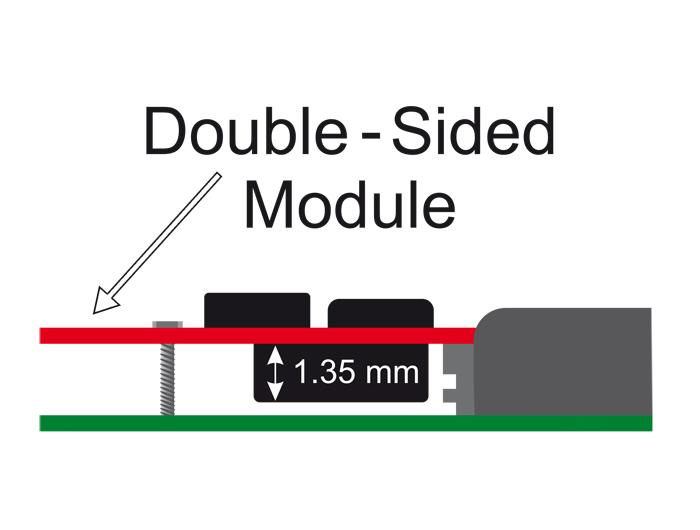

• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 138 x 102 x 20 mm
• OS independent, no driver installation necessary

System requirements:
• A free SATA 7 pin interface for each connected M.2 module

Package content:
• Converter

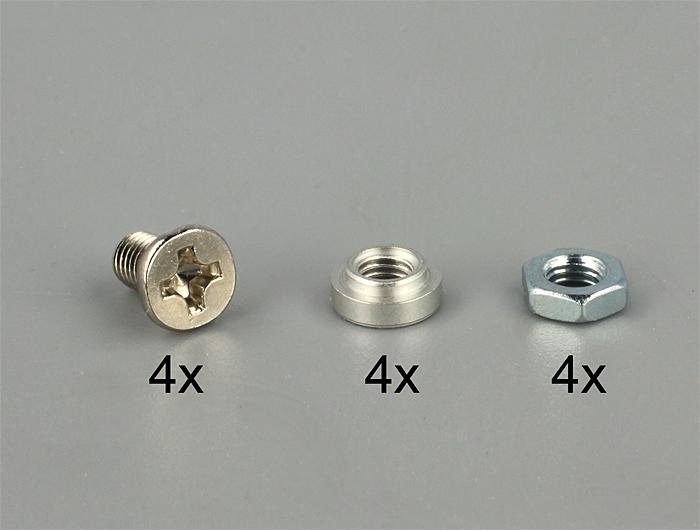

• 4 x fixing screw for M.2 module
