Delock Converter SATA 22 Pin M.2 NGFF

DELOCK

62559

New

This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through an SATA 22 pin interface.

More details

Description:

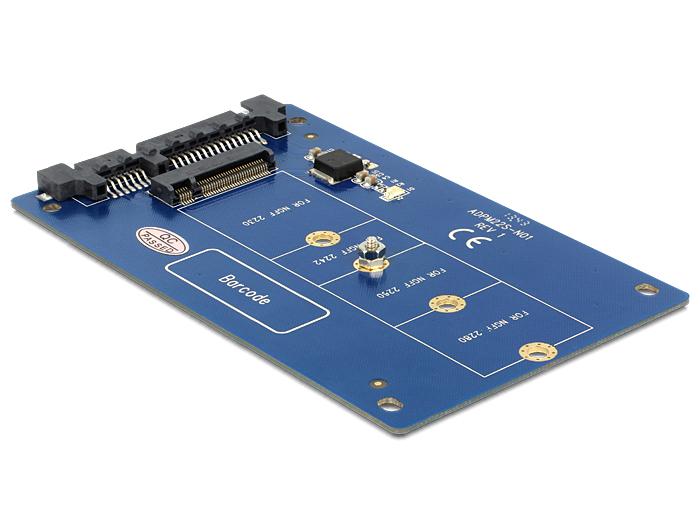

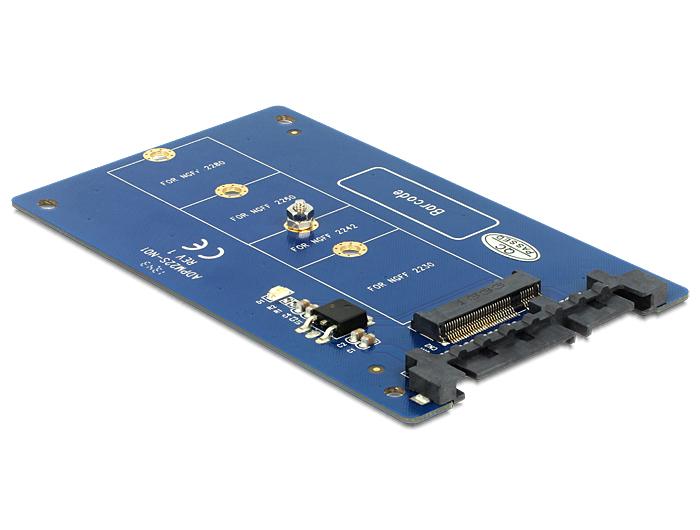

This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through an SATA 22 pin interface.

Specification:
• Connector:
SATA 22 pin male > 67 pin M.2 NGFF key B slot
• Interface: SATA
• Supports M.2 NGFF modules in format: 2280, 2260, 2242 and 2230
with key B or key B+M based on SATA

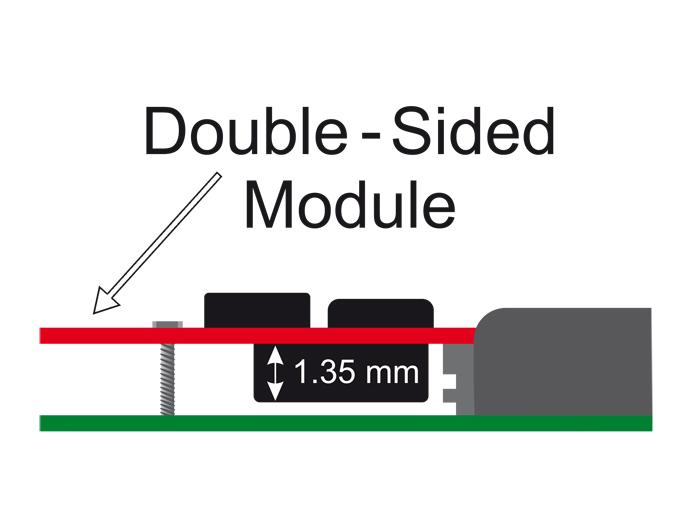

• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 100 x 60 x 5 mm
• OS independent, no driver installation necessary

System requirements:
• A free SATA 22 pin interface

Package content:
• Converter

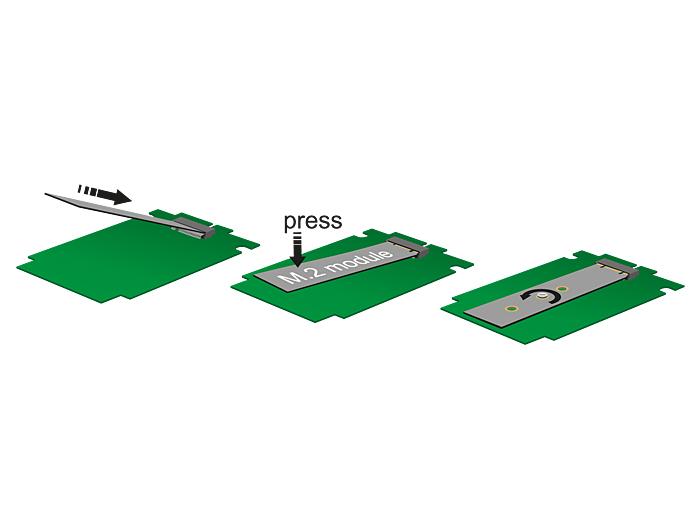

• 1 x fixing screw for M.2 module
