Delock 1.8 Converter Micro SATA 16 Pin M.2 NGFF

DELOCK

62636

New

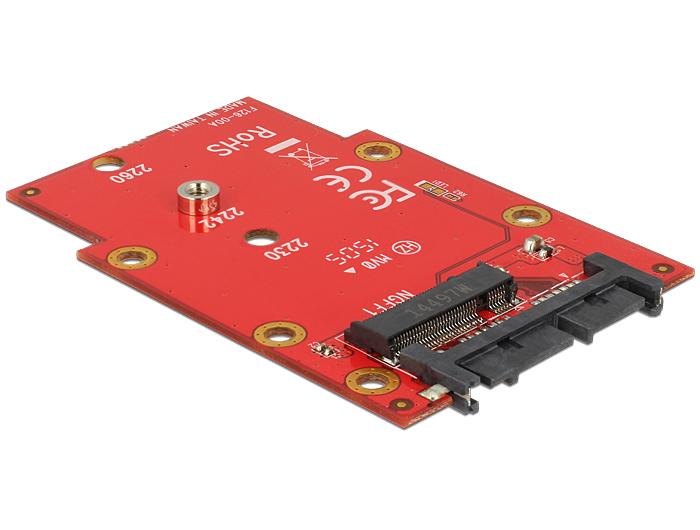

This Delock converter enables you to connect a M.2 NGFF SSD in 2260, 2242 and 2230 format which can be used as a 1.8″ HDD. The converter can be installed into your system internally through an SATA 16 pin interface.

More details

Description:
This Delock converter enables you to connect a M.2 NGFF SSD in 2260, 2242 and 2230 format which can be used as a 1.8″ HDD. The converter can be installed into your system internally through an SATA 16 pin interface.

Specification:
• Connector: Micro SATA 16 pin male > 67 pin M.2 NGFF key B slot
• Interface: SATA
• Form factor: 1.8″
• Supports M.2 NGFF modules in format 2260, 2242 and 2230 with key B or key B+M
based on SATA

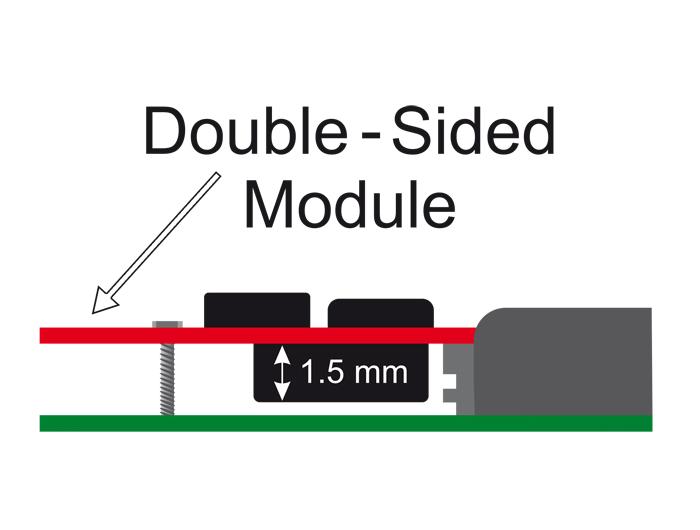

• Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
• Temperature range: -40 °C ~ +85 °C
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxW): ca. 78 x 51 mm
• OS independent, no driver installation necessary

System requirements:
• A free Micro SATA 16 pin interface

Package content:
• Converter
• 1 x fixing screw for M.2 module
