Delock USB Type-C™ Converter for 1 x M.2 NVMe SSD + 1 x SATA SSD / HDD with Clone Function

Reference 64190

Condition: New

More info

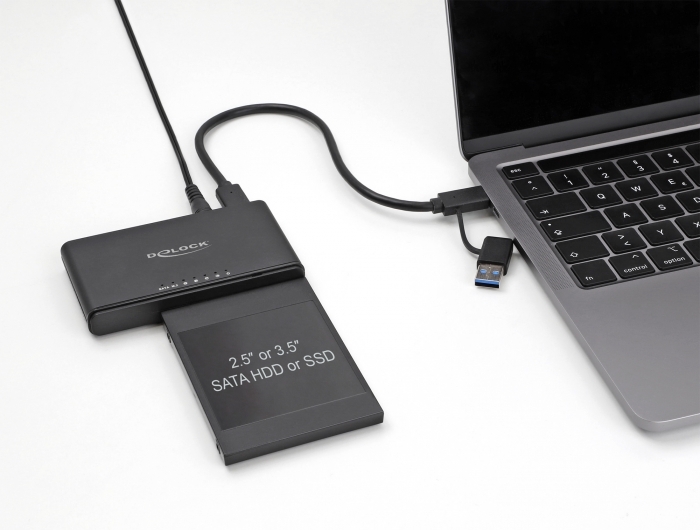

This converter by Delock enables the simultaneous operation of an M.2 NVMe SSD, in 2280, 2260 and 2242 format, and a 2.5″ or 3.5″ SATA HDD or SSD through the USB-C™ interface.

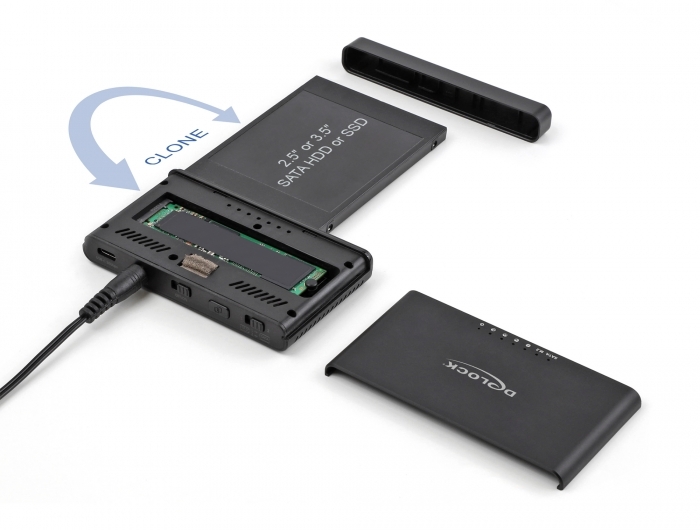

Clone Function without PC
The built-in clone function allows to clone memory without using a PC. It is possible to clone from NVMe to SATA and SATA to NVMe.

Extensive connectivity
Due to the specially designed adapter, the Delock converter can be quickly and easily connected to the USB Type-A socket. Thus, it can be easily connected to new devices with USB Type-C™ female and older devices that only have a USB Type-A connector. The adapter is located directly on the cable and therefore it cannot be lost.

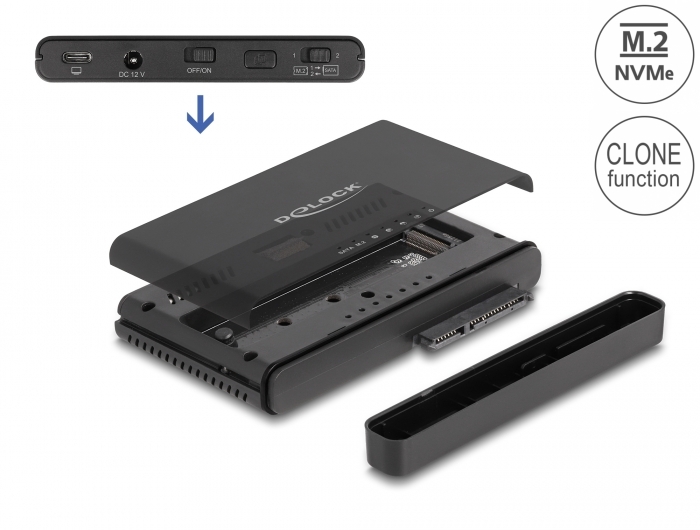

SSD installation without tools
No tools are required to install the M.2 SSD. The lid can be pushed backwards by a little pressure, the SSD will be attached to the PCB with a rubber nipple and then the lid is reattached until it locks.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• PC or laptop with a free USB Type-A port or
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  1 x 67 pin M.2 key M slot
  1 x SATA 6 Gb/s 22 pin receptacle
  1 x DC jack
• Chipset: JMicron JMS581D
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based
on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• For 2.5″ and 3.5″ SATA HDD / SSD
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports Native Command Queuing (NCQ)
• Data transfer rate up to 10 Gbps
• Supports UASP

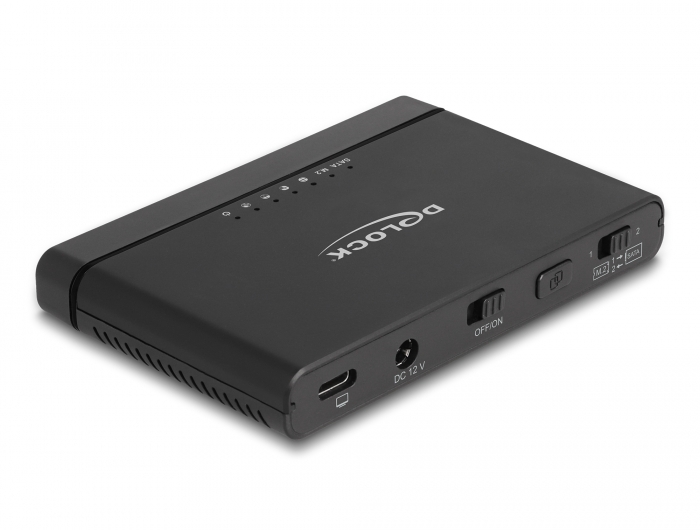

• 7 x LED indicator for power, access and copy status
• Bootable
• Function key:
  1 x Clone button
  1 x On / Off switch
  1 x switch for clone mode
• Dimensions (LxWxH): ca. 102 x 67 x 14 mm
• Hot Plug, Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.5 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

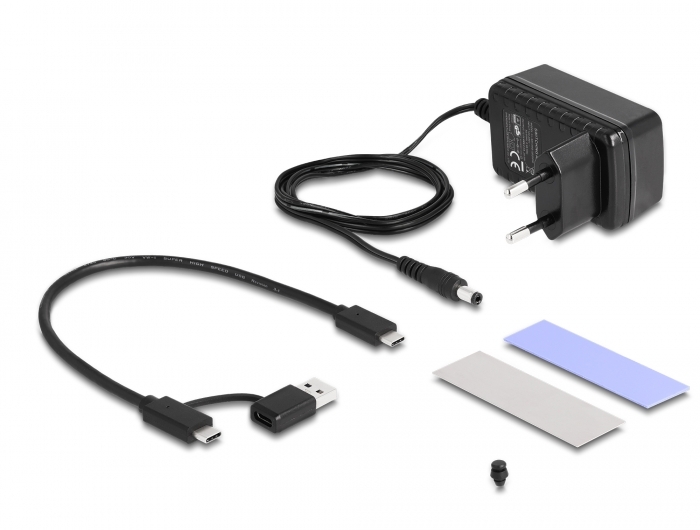

Package content:
• USB Type-C™ converter
• Cable USB-C™ male to USB-C™ male (with adapter to USB Type-A male), length
ca. 30 cm
• 1 x thermal conductive pad
• 1 x thermal conductive plate
• External power supply 12.0 V / 2.0 A
• User manual
