Delock Converter IDE 44 Pin > mSATA with 2.5″ Frame (7 mm)

DELOCK

62495

New

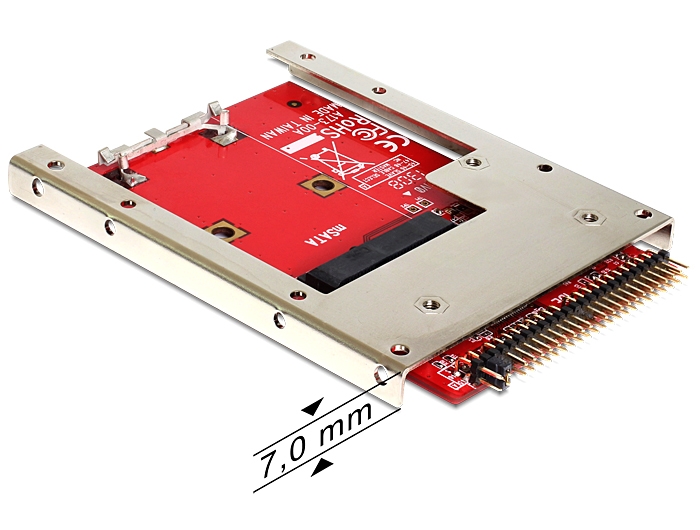

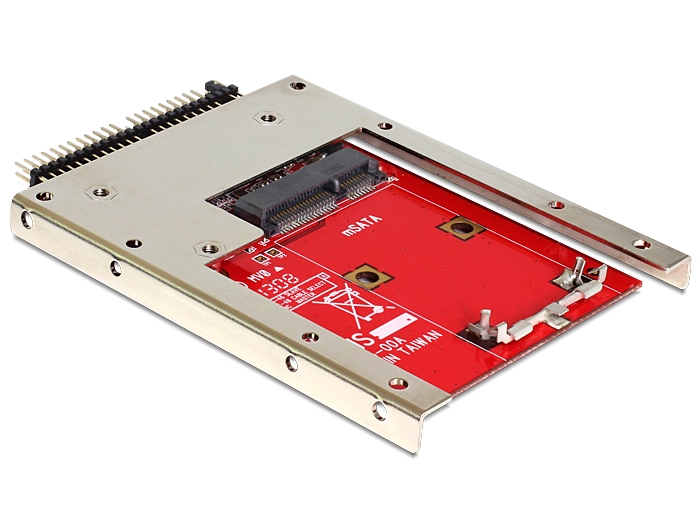

This Delock converter enables you to connect a mSATA SSD in full size format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an IDE 44 pin interface.
System requirements:
• A free IDE 44 pin interface
Specification:

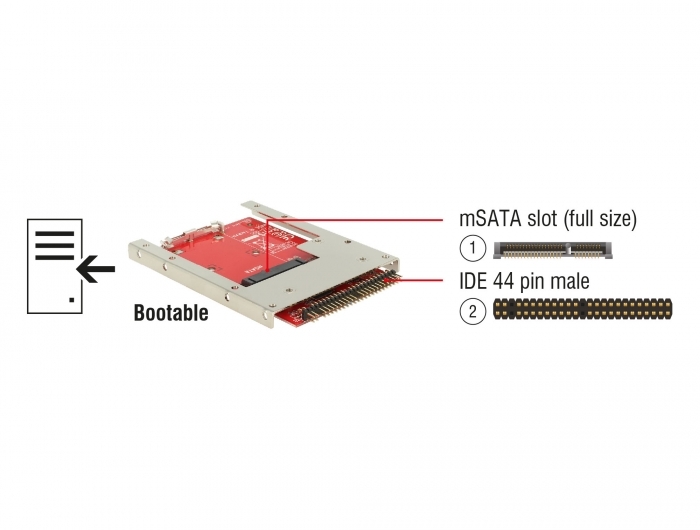

• Connector:
    1 x IDE 44 pin male
    1 x mSATA slot (full size)
• Form factor: 2.5″
• Height: 7 mm
• For 3.3 V mSATA module
• Supports ATA/ATAPI-7
• Supports ATA/ATAPI Ultra DMA mode
• Supports ATA/ATAPI PIO mode
• Jumper settings for Master, Slave and Cable Select mode
• Latch for mSATA module, full size can fit in
• Dimension (LxWxH): ca. 9,8 x 7,0 x 0,7 cm
• OS independent, no driver installation necessary
Package content:
• Converter
• 2.5″ frame

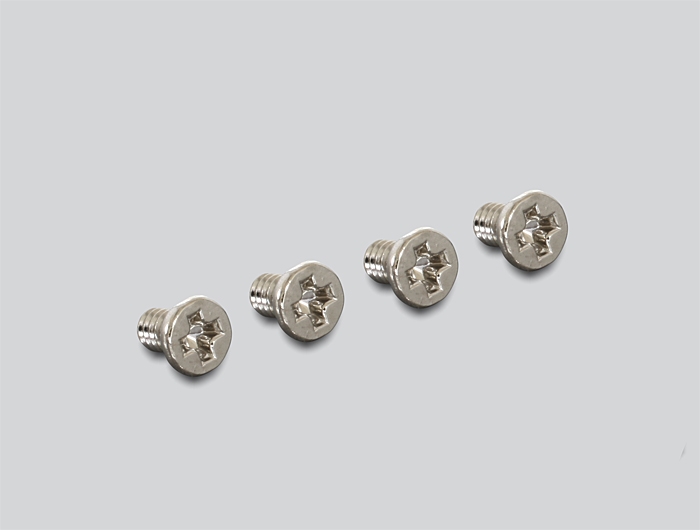

• 4 x screws
• User manual
Data sheet:
http://www.delock.de/produkt/62495/pdf.html?sprache=en
