Delock D-Sub HD 26 pin male with housing IP67 waterproof

Reference 87808

Condition: New

More info

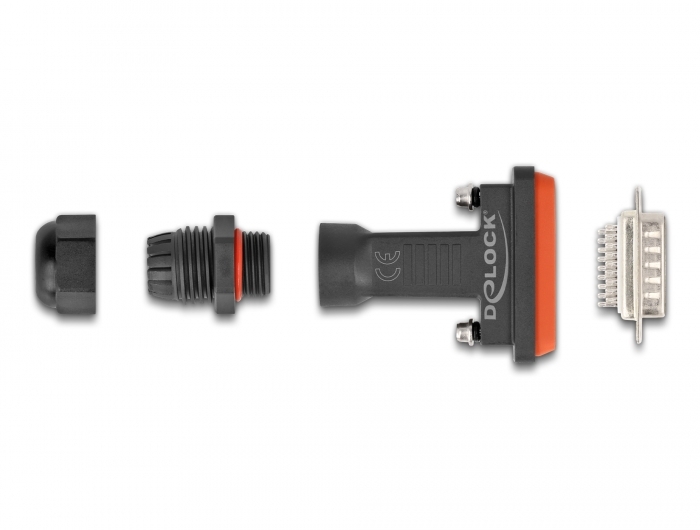

This D-Sub male connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.

Easy installation

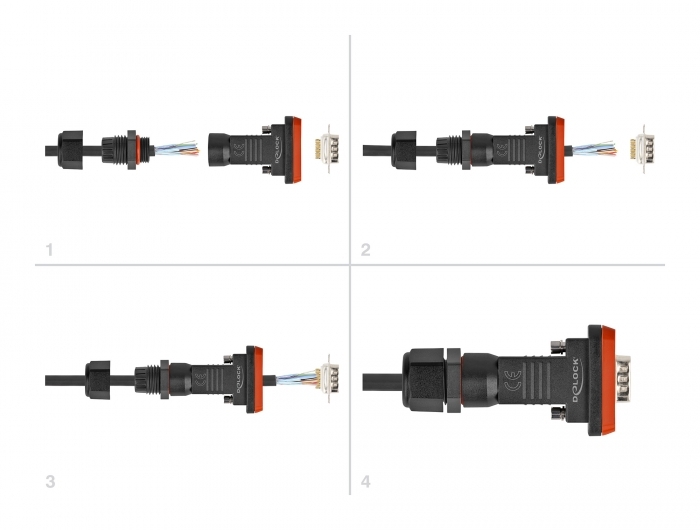

The cable wires can be fed through the housing and connected to the solder contacts of the D-Sub connector. The soldered cable wires are mounted together with the connector to the housing.

Specification:
• Connectors:
1 x D-Sub HD 26 pin male (3 rows)
1 x 26 soldering pin
• Protection class: IP67
• Cable diameter: ca. 9 mm
• Silicone sealing red
• Operating temperature: -45 °C ~ 105 °C
• Colour: black
• Housing material: PA66
• Dimensions (LxWxH): ca. 80 x 49 x 22 mm

Package content:
• D-Sub HD 26 pin male
• Housing

Data sheet:
http://www.delock.de/produkt/87808/pdf.html?sprache=en
