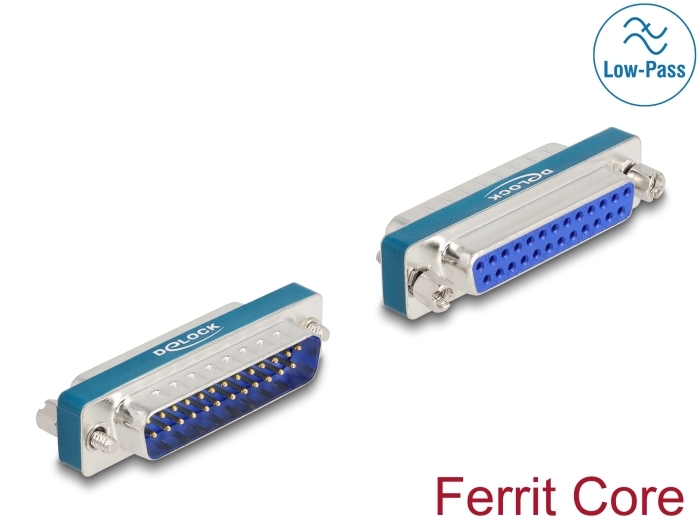

Delock RF/EMI Interference Suppression Filter D-Sub 25 pin male to female with low-pass inductive

DELOCK

66549

New

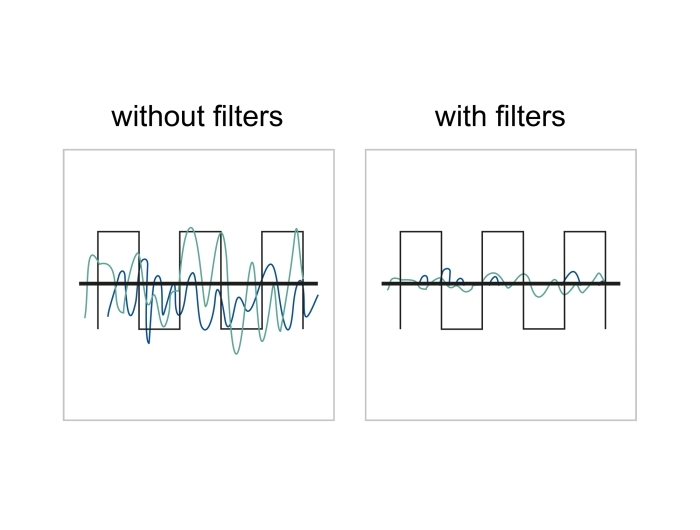

The RF/EMI interference suppression filter in the D-Sub adapter by Delock uses integrated broadband filters to prevent interruptions and signal noise, e.g. on Serial RS-232 / RS-485 and digital as well as analogue I/O interfaces.

Low-pass broadband filter
The adapter contains 25 low-pass broadband filters for RF/EMI shielding of the D-Sub interface.

Note
Available in D-Sub 9, 15, 25 and 37 pin versions.
System requirements:
• A free D-Sub 25 pin interface
Specification:
• Connectors:
  1 x D-Sub 25 pin male
  1 x D-Sub 25 pin female
• Pin assignment: 1:1
• Contacts: gold plated brass

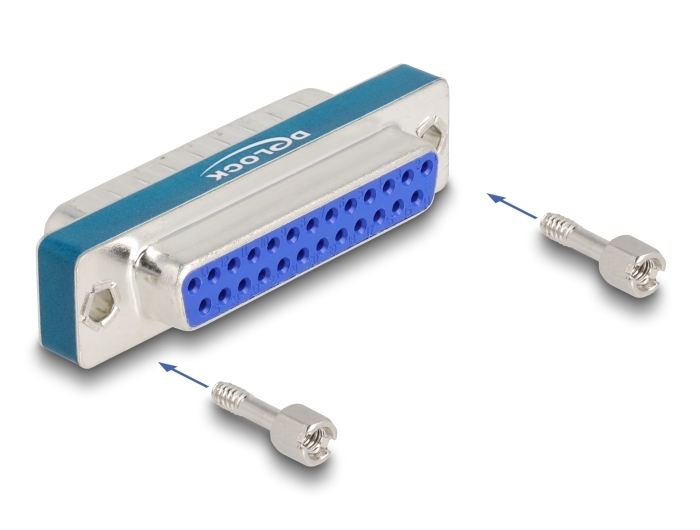

• Screw type: #4-40 UNC
• Housing material: Steel tin plated

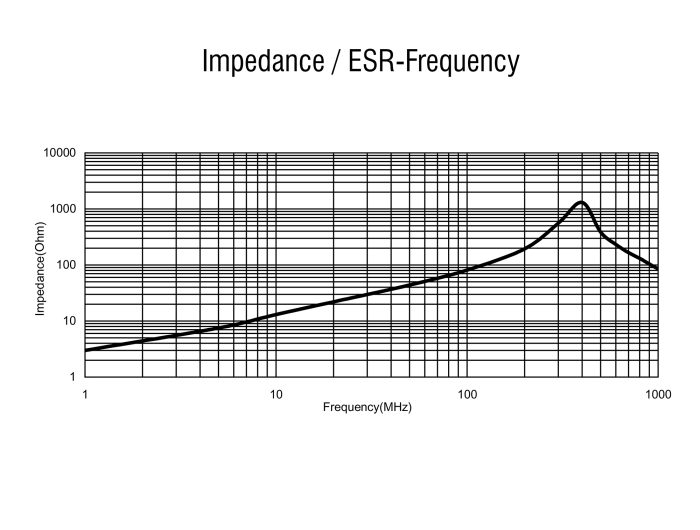

• Low-pass: inductive
• Rated voltage: 150 VAC
• Operating temperature: -55 °C ~ 105 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 53.4 x 17.9 x 12.7 mm
Package content:
• RF/EMI filter
Data sheet:
http://www.delock.de/produkt/66549/pdf.html?sprache=en
