Delock Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station and long distance reading u

Reference 90588

Condition: New

More info

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types, such as the QR Code, can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.

Long distance reading
Thanks to a particularly high-quality module, the scanner can read barcodes up to a distance of 6.5 metres.

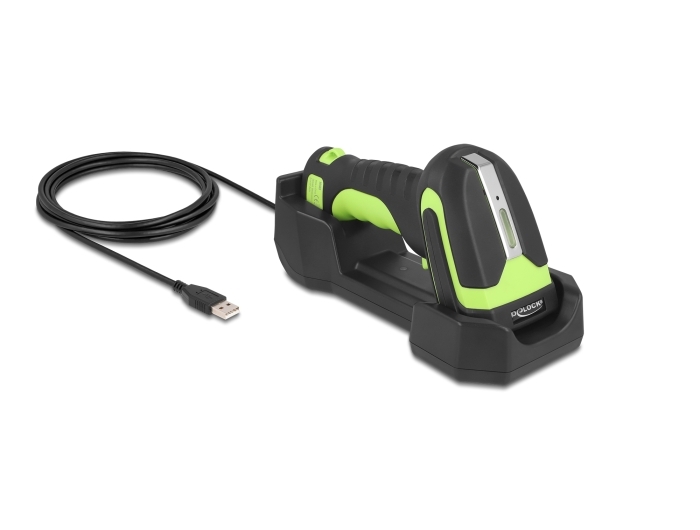

Charging station acts as interface
The data transfer of the scanned barcodes is done either via Bluetooth or via the 433 MHz frequency band. In addition to charging the hand scanner, the scanner's inductive charging station also functions as a 433 MHz interface and is connected to the system via a USB cable.

Please Note
Not suitable for Swiss QR Codes.
The read distance depends on the resolution of the barcodes.

System requirements:
• Android 14.0 or above
• iPad Pro (3rd Generation) or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• Bluetooth standard 4.1 or above
• PC or laptop with a free USB Type-A port for dongle

Specification:
  Charging station
• Connector: 1 x USB 2.0 Type-A male
• Input voltage: 5 V
• Current consumption:
  operation: max. 1100 mA
  standby: max. 700 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -20 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 216 g
• Dimensions (LxWxH): ca. 210 x 95 x 75 mm
• Cable length without connectors: ca. 1.25 m
• Bluetooth standard V 4.1
• 433 MHz

  Barcode scanner
• Decoding chip: ARM Cortex 32 Bit
• Rechargeable battery: Li-Polymer battery 2600 mAh
• Resolution: max. 1280 x 1024
• Trigger: scan button
• Reading distance: ca. 12 cm - 650 cm
• Reading accuracy: 5 - 100 mil
• Range:
  Bluetooth: up to 10 m
  433 MHz: up to 100 m
• Internal memory: 16 MB
• Charging time: ca. 4 hours
• Operation time: ca. 16h with 2D, 24h with 1D
• Scan type: LED
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 120 scans per second
• Scan angle: 65°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
  operation: max. 220 mA
  standby: max. 20 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black / green
• Weight: ca. 321 g
• Dimensions (LxWxH): ca. 185 x 100 x 80 mm
• Scancodes:
  Code 128
  Code 39
  Interleaved 2 of 5
  EAN-8 / EAN-13
  ISBN - 13
  Data Matrix
  Micro PDF417
  Micro QR
  PDF417
  QR Code
• Supported languages:
  German
  French
  Spanish
  Italian
  Belgian
  English
  Swiss German
  Swiss French
  Hungarian
  Czech
  Polish
  Schwedish
  Finnish
  Norwegian

Package content:
• Barcode scanner
• Charging cradle
• User manual

Data sheet:
http://www.delock.de/produkt/90588/pdf.html?sprache=en
