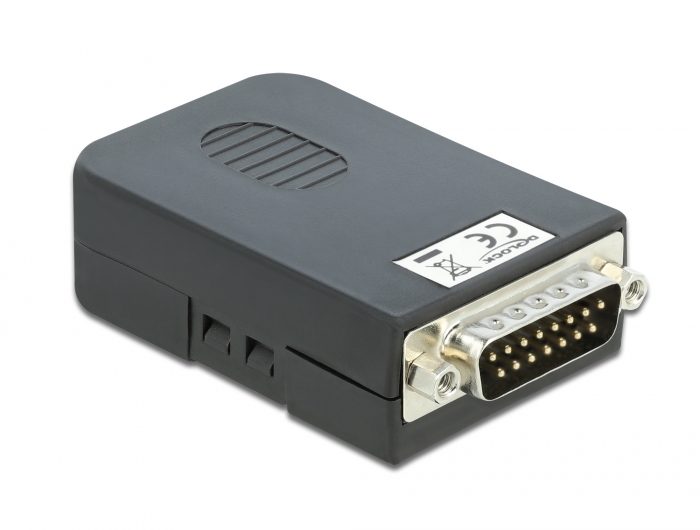

Delock Sub-D15 male to Terminal Block Adapter with Enclosure

DELOCK

66568

New

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.

Protection by enclosure

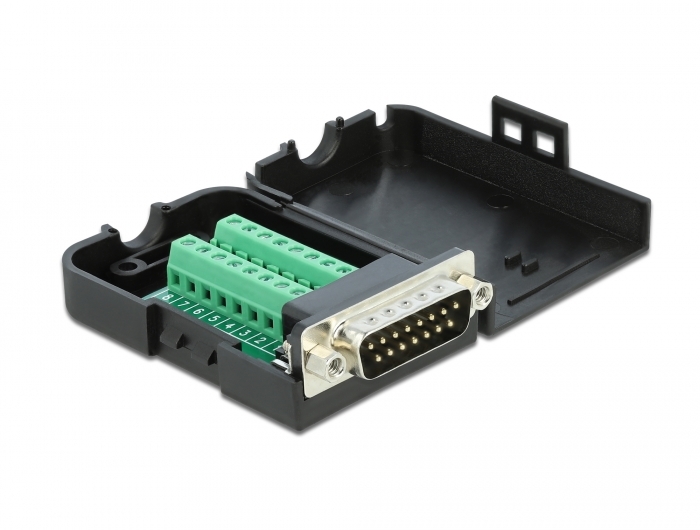

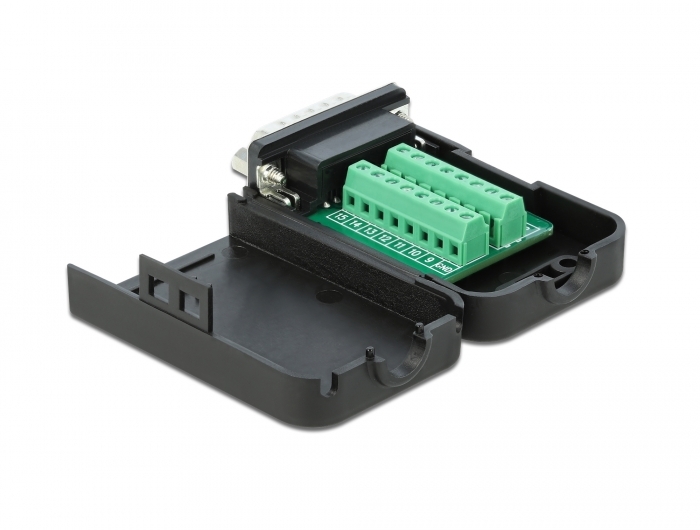

The plastic enclosure protects the PCB from dirt and damage.

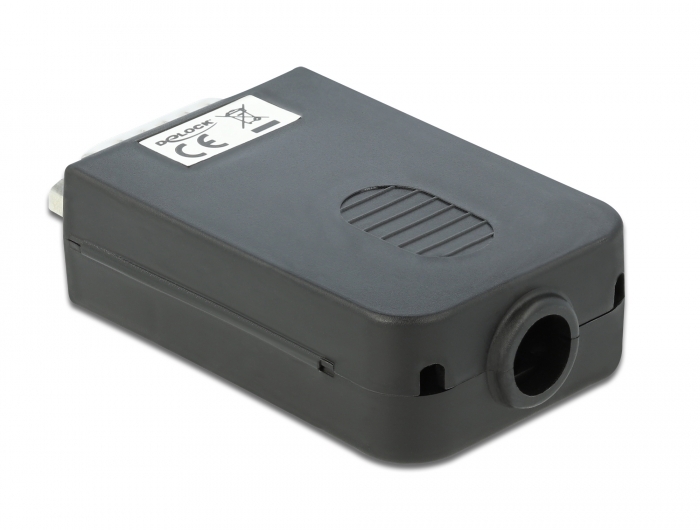

Strain relief
The screw-on strain relief fixes the cable in the enclosure.


System requirements:
• A free Sub-D15 female
Specification:
• Connectors:
  1 x serial Sub-D15 male (2 rows) with nuts
  1 x 16 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 71 x 42 x 21 mm

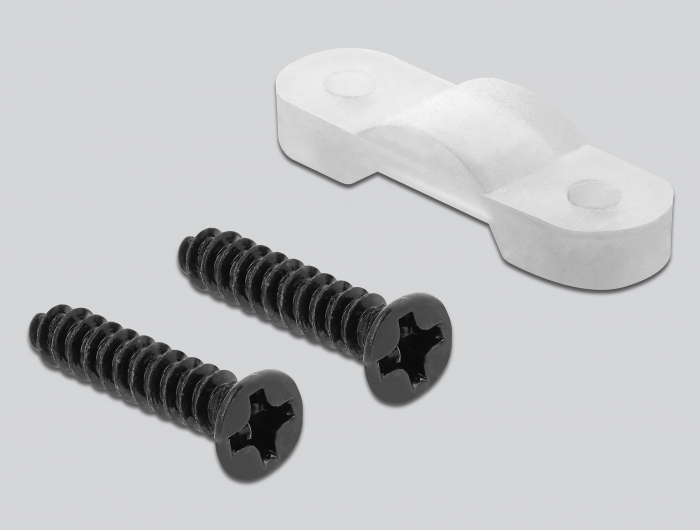

Package content:
• Adapter
• 1 x strain relief
• 2 x locking screws
Data sheet:
http://www.delock.de/produkt/66568/pdf.html?sprache=en
