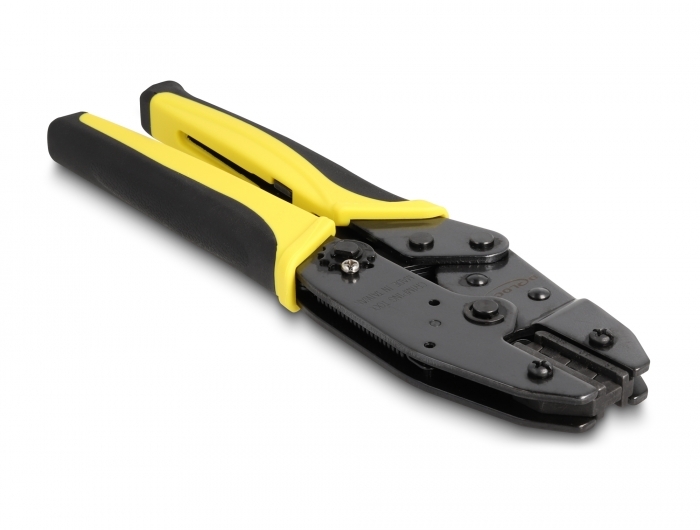

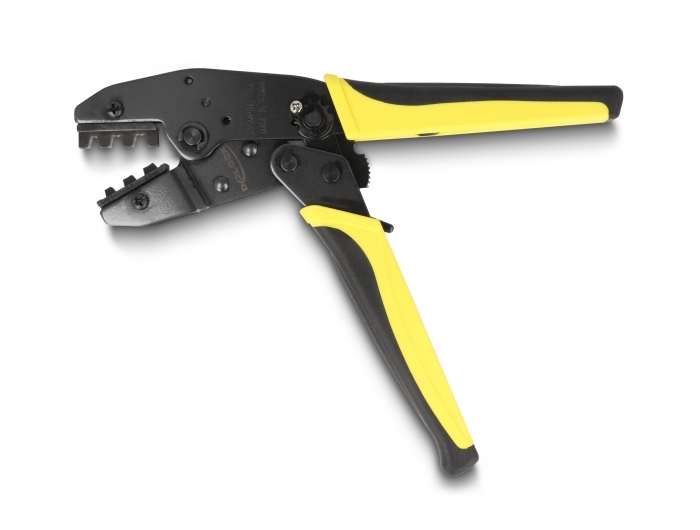

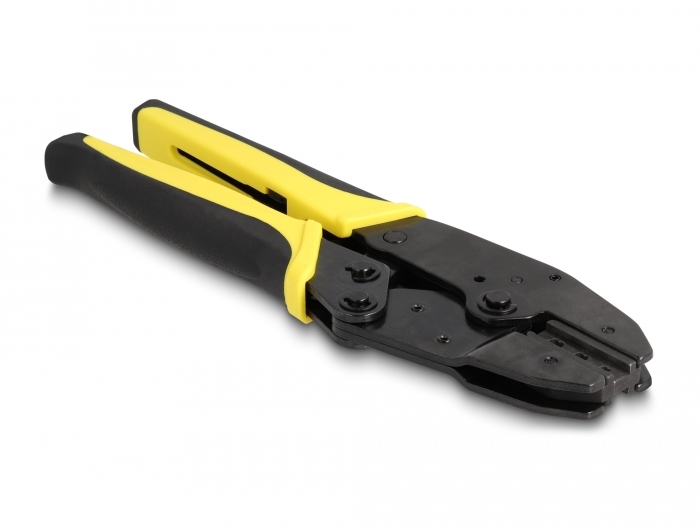

Delock Crimping Tool for DL4 plug 2.5 - 6 mm²

DELOCK

90546

New

With this tool by Delock a solar cable can be installed quickly and easily to a connector. The rubberized handles provide a firm grip during the crimping process.

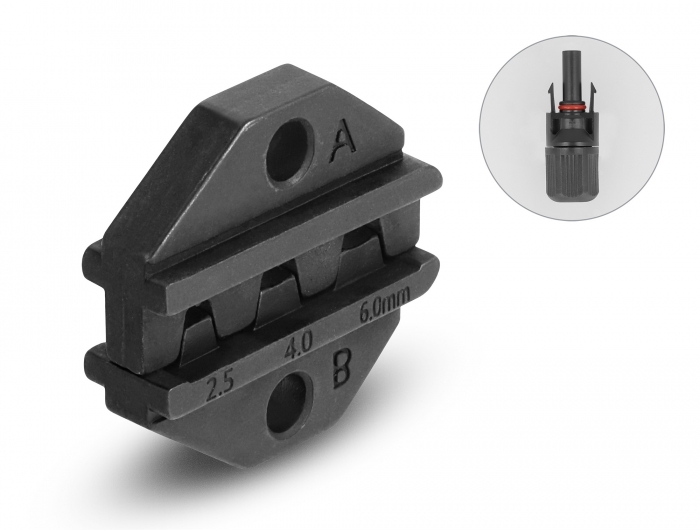

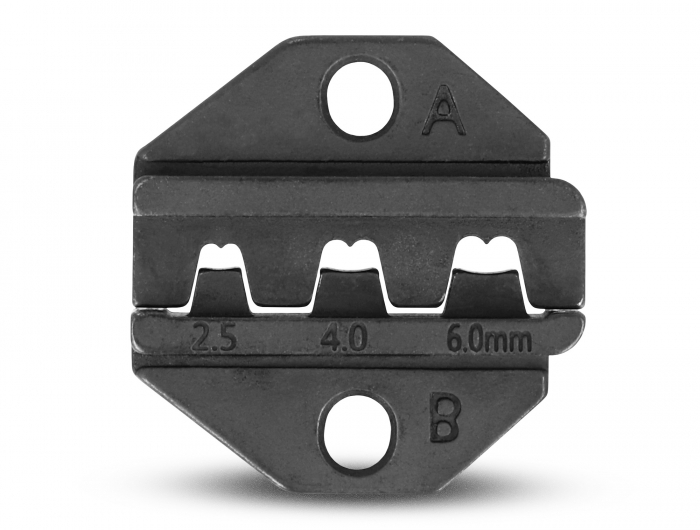

Exchangeable ratchets
The press profile insert, the so-called ratchets, are exchangeable, so that the right pair can be installed for every application.

Note
The plier has a locking mechanism to prevent unintentional closing or opening. Seven clearly audible locking points signal this mechanism. After the seventh, the pliers open again when the handles are pressed together.
System requirements:
• Cable suitable for crimping
• Connectors suitable for crimping
Specification:
• Metal pliers with plastic handles and lock
• Cable suitable for crimping: AWG 10 - 13
• Connectors suitable for crimping: DL4 plug 2.5 - 6 mm²
• Compatible with MC4, TS4, QC4
• Colour: yellow
• Dimensions (LxWxH): ca. 218 x 60 x 17 mm
Package content:
• Crimping tool
Data sheet:
http://www.delock.de/produkt/90546/pdf.html?sprache=en
