APC USV SMC1000I-2UC SMARTUPS C 1000VA LCD RM 2U 230V SmartC

APC

SMC1000I-2UC

New

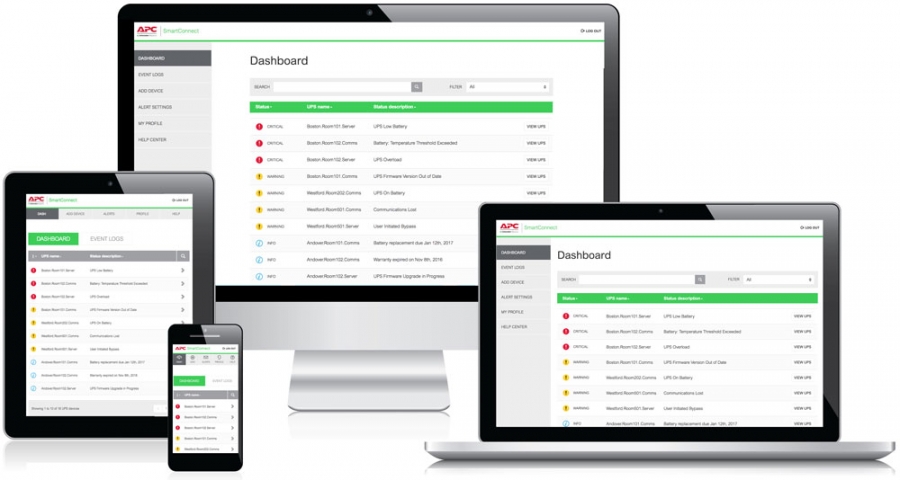

Certainty in your connected worldProtect your entry-level servers, small switches, networking devices, and point-of-sale (POS) equipment with the Smart-UPS SMC1000-2UC with APC SmartConnect – the first cloud enabled UPS for distributed IT. The SMC1000-2UC UPS provides backup battery power in the event of a power outage, while safeguarding your equipment from harmful power conditions, spikes and surges. The included service-free cloud monitoring feature is accessible from any internet connected device, and maximizes the life and performance of your UPS by providing proactive advice and life cycle recommendations so you can remotely monitor your power infrastructure from anywhere in the world. Automatic green mode ensures you are operating at the highest level of efficiency, and intelligent battery management maximizes performance. With a 600-watt output power capacity and six battery and surge protected outlets, this Smart-UPS is ideal for home users and small- to medium-sized businesses.The first cloud enabled UPS for distributed ITThe SMC1000-2UC comes with our innovative remote cloud monitoring solution, APC SmartConnect, a feature which allows you to view the status of your UPS on a secure web portal via any internet connected device. APC SmartConnect maximizes the life and performance of your UPS through automatic notifications, firmware updates, and advanced support.Intuitive LCD interface for status updates and configurationThe bright, easy-to-read LCD interface provides real-time status updates of your APC UPS with multiple language options, and intuitive navigation keys.Intelligent battery managementFor easy maintenance, the Smart-UPS SMC1000-2UC provides a predictive month and year when battery replacement is recommended. It also prolongs battery life by regulating the charge voltage in relation to battery temperature. Detect faulty batteries with the periodic battery self-test and disconnected battery notificationAutomatic Voltage Regulation (AVR)AVR adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery.Pure sine wave outputPure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Green mode for reduced power consumptionOperate efficiently with the Smart-UPS green mode, which allows you to conserve energy without sacrificing any protection when power quality is within optimal levels and power conditioning is not necessary.PowerChute software for safe system shutdownDesigned for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. Find cost savings by using PowerChute to monitor your equipment’s energy consumption.ENERGY STAR QualifiedAcknowledged for meeting standardized energy efficiency requirements and passing the program's testing, the Smart-UPS SMC1000-2UC has been recognized for its ability to save you money while protecting the environment. Any UPS that is ENERGY STAR Qualified must achieve operational efficiency in the top 25 percent of the market, thus demonstrating the ability to allow you to realize lower electrical operating costs, and a reduced carbon footprint.

UPS topologyLine-Interactive
Output power capacity1 kVA
Output power600 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Y
Surge energy rating680 J
Output voltage Total Harmonic Distortion (THD)5%
Noise level41 dB
Surge protectionY
Audible alarm(s)Y
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm

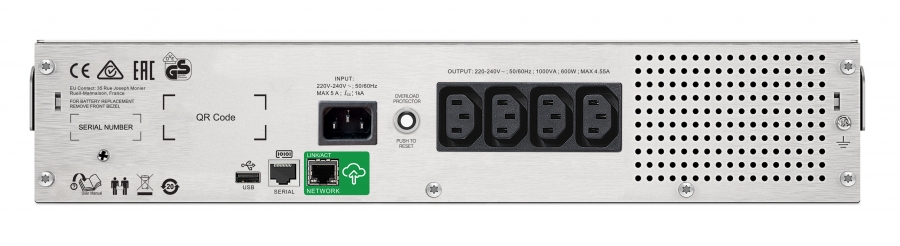

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
Number of outlets (Battery backup & protection)4

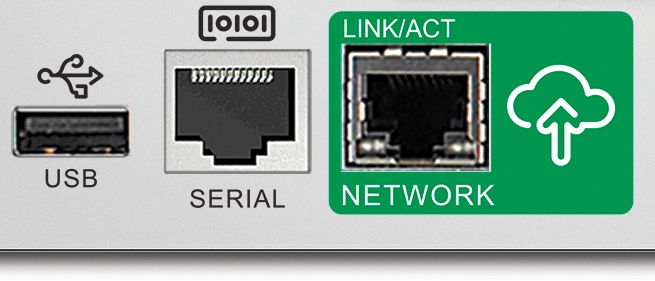

USB portY
USB 2.0 ports quantity1
Serial interfaceY
Serial interface typeRS-232
Ethernet LAN (RJ-45) ports1
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Number of batteries supported1
Battery life (max)6 year(s)
Battery recharge time3 h
Replacement battery cartridgeAPCRBC124
Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length2.44 m
Display typeLCD
CertificationCSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesENERGY STAR, Green Premium, RoHS
Width432 mm
Depth406 mm
Height86 mm
Weight20.5 kg
Package width535 mm
Package depth570 mm
Package height235 mm
Package weight20.7 kg
Rack mount kitY
Cables includedRJ-45, RS-232
Resource CDY
Software CDY
Products per pallet16 pc(s)
Harmonized System (HS) code85078000

UPS lineinteractive
