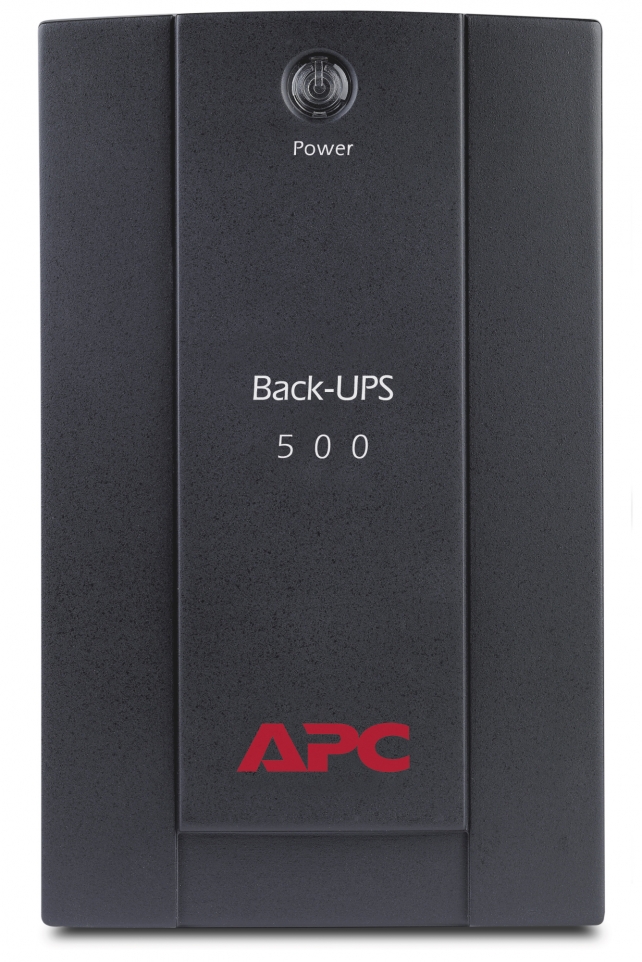

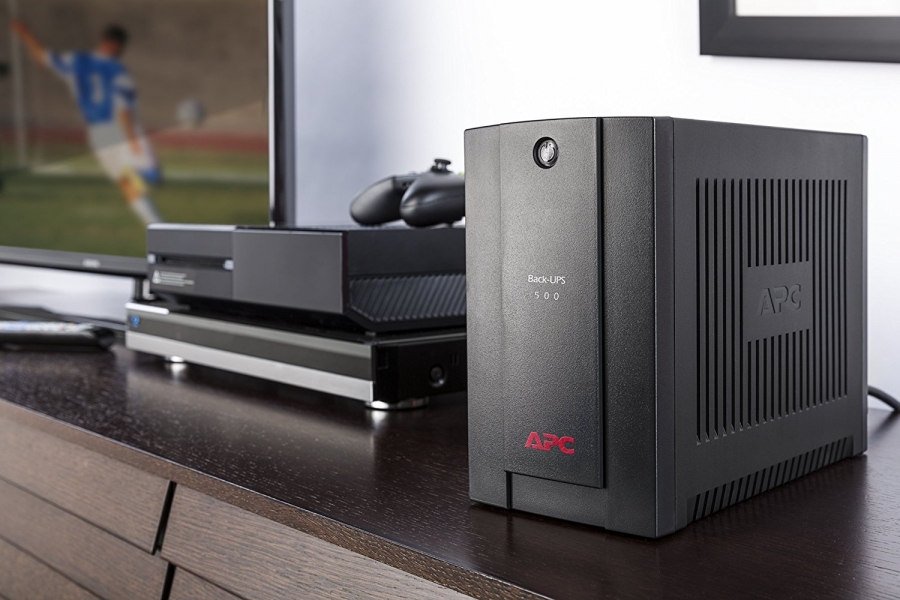

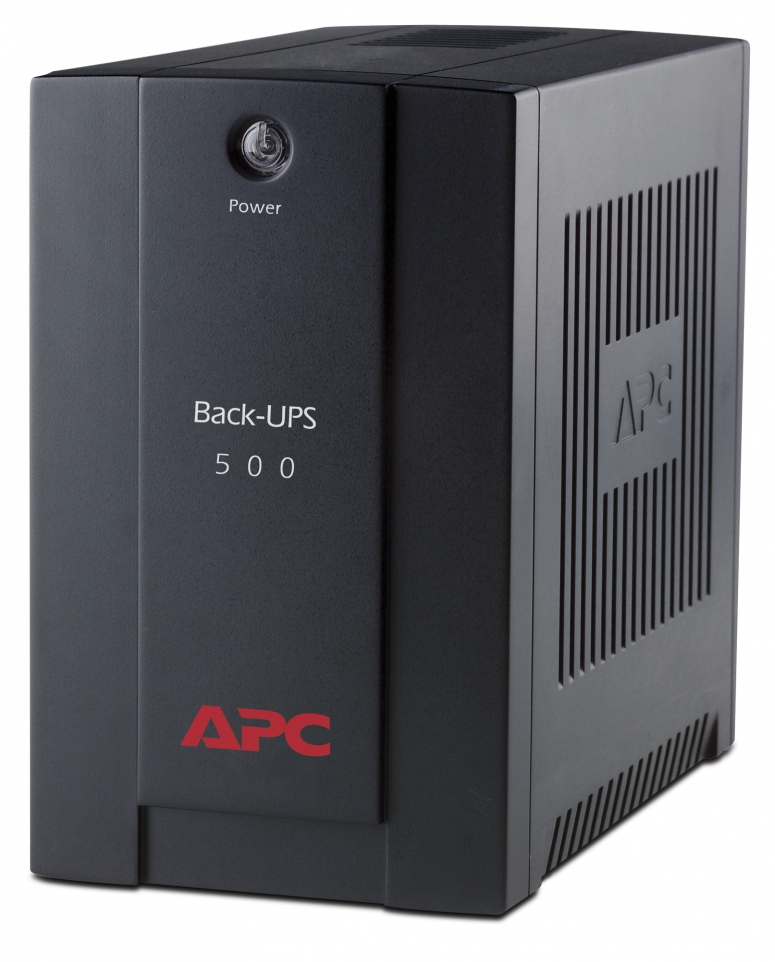

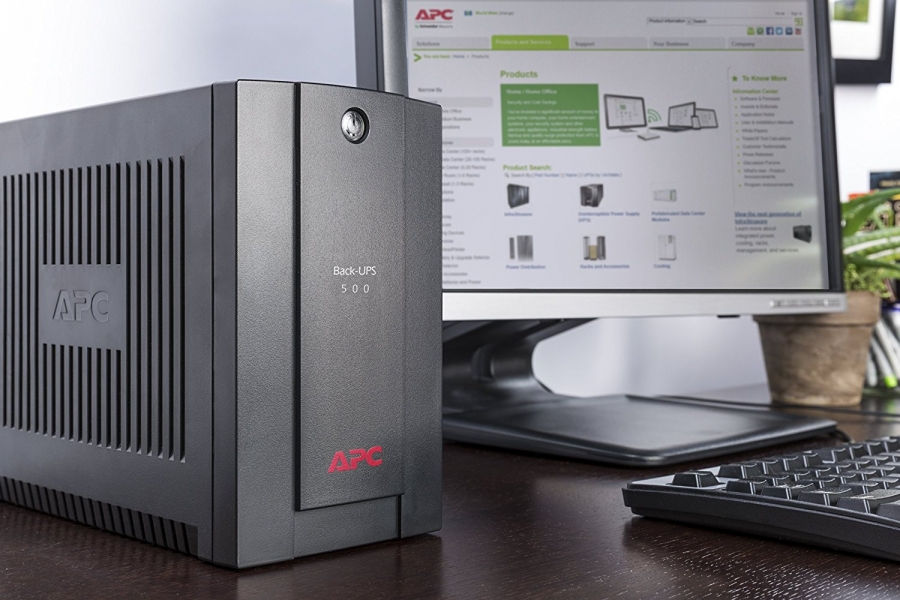

APC USV BX500CI BACKUPS 500VA AVR IEC-Ausgänge

APC

BX500CI

New

Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenanceResettable circuit breaker Easy recovery from overloads; no need to replace a fuse.Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.Audible alarms Provides notification of changing utility power and UPS power conditionsSafety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.LED status indicators Quickly understand unit and power status with visual indicators.

UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power300 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)280 V
Input frequency45/65 Hz
Output frequency regulation50 Hz
Automatic Voltage Regulation (AVR)Y
Maximum current2 A
Surge energy rating273 J
Hold time (min)6 ms
Hold time (max)10 ms
Efficiency98.7%
Noise level45 dB
Surge protectionY
Audible alarm(s)Y
Audible alarm modesLow battery alarm, Overload alarm

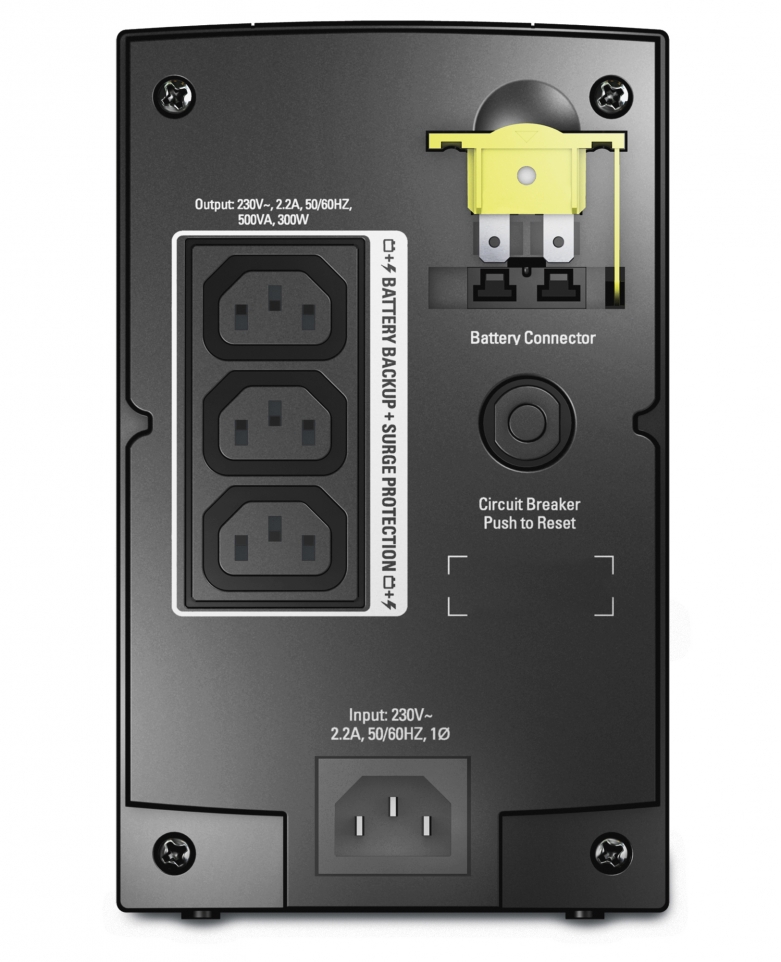

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity3 AC outlet(s)
Number of output IEC jumpers1
Battery technologySealed Lead Acid (VRLA)
Battery capacity7.2 Ah
Battery capacity47 VAh
Battery voltage12 V
Typical backup time at full load1.3 min
Typical backup time at half load7.6 min
Automatic battery testY
Form factorTower
Product colourBlack
Cable length1.83 m
LED indicatorsBattery replacement
CertificationCE, REACH, PEP, EOLI
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesRoHS, ENERGY STAR
Width115 mm
Depth213 mm
Height185 mm
Weight5.2 kg
Package width190 mm
Package depth291 mm
Package height257 mm
Package weight5.68 kg
ManualY
Products per pallet60 pc(s)
Harmonized System (HS) code85078000
Products per master (outer) case2 pc(s)
Nominal output voltage230 V
Nominal input voltage230 V

UPS lineinteractive
