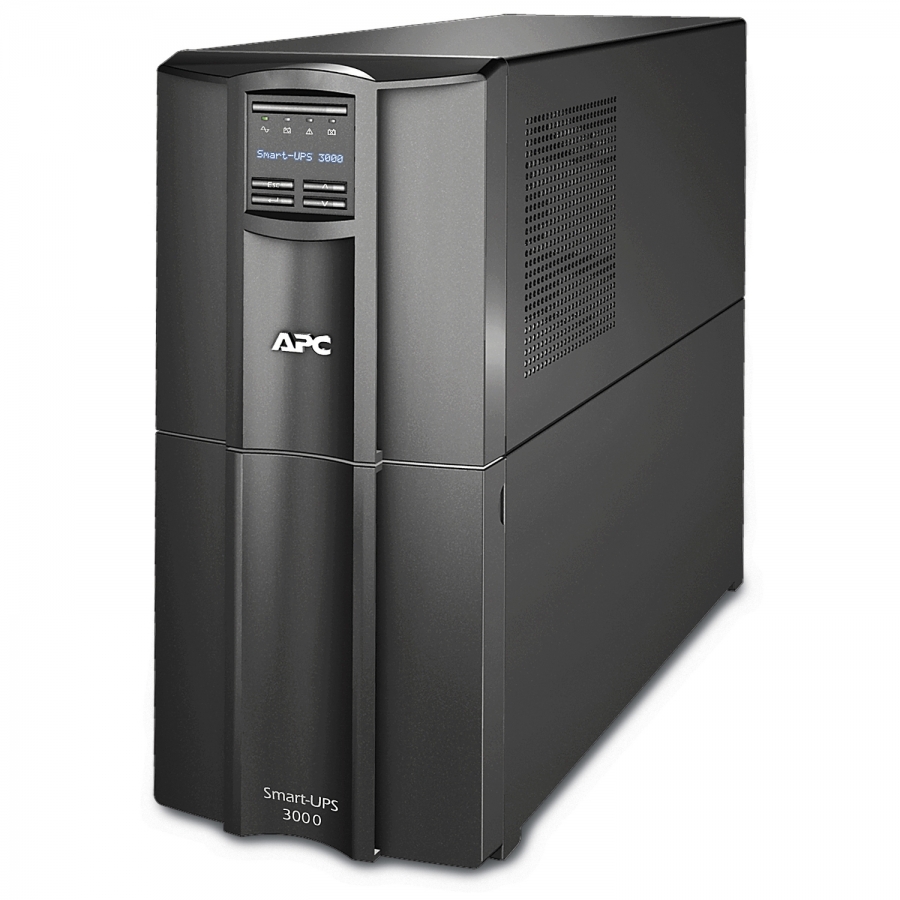

APC USV SMT3000I SMARTUPS 3000VA LCD 230V (Speditionsversand)

APC

SMT3000I

New

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Energy meter Provides actual kilowatt hours of usage for energy conscious users.Sequenced shutdown and restart Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

UPS topologyLine-Interactive
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Automatic Voltage Regulation (AVR)Y
Surge energy rating365 J
Hold time (max)2 ms
Efficiency98.1%
Emergency Power Off (EPO)Y
Noise level53 dB
Surge protectionY
Audible alarm(s)Y
Auto-restartY

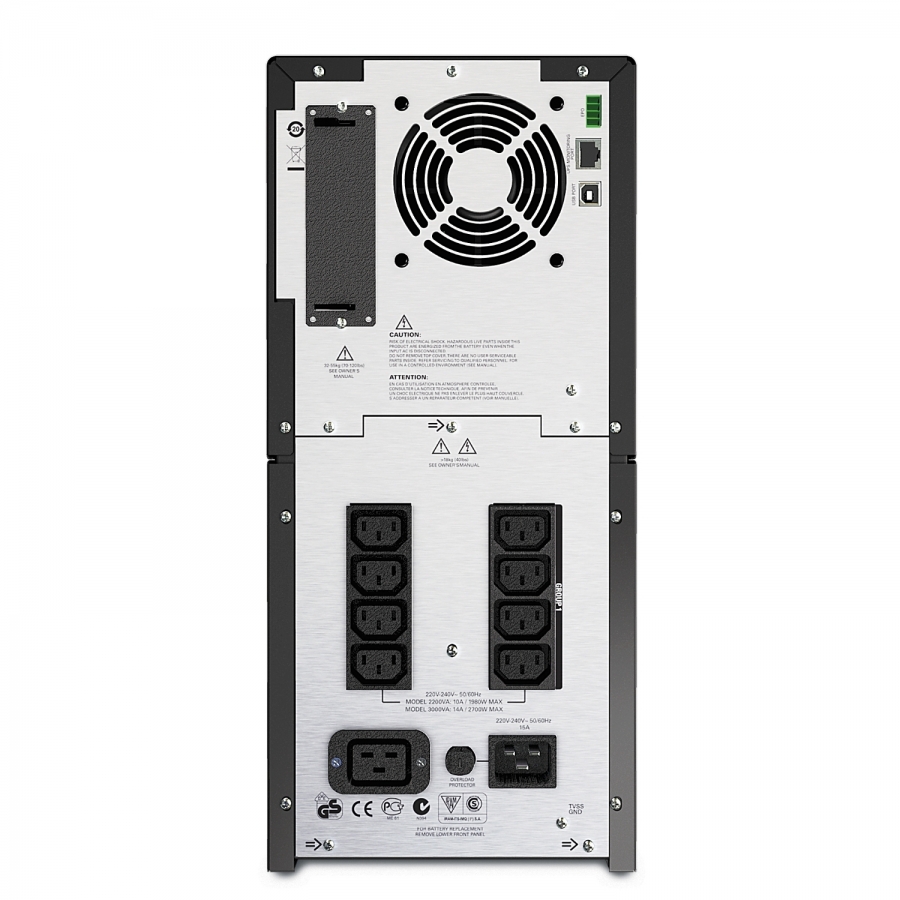

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity9 AC outlet(s)
Number of output IEC jumpers2
USB portY
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Battery capacity816 VAh

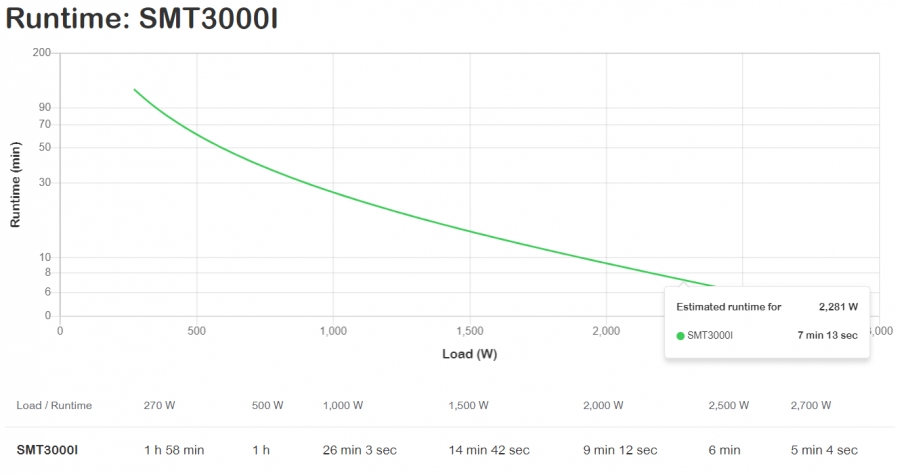

Typical backup time at full load5.1 min
Typical backup time at half load17.2 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryY
Automatic battery testY
Cold startY
Form factorTower
Product colourBlack
Cable length1.83 m
Display typeLCD
LED indicatorsStatus
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesGreen Premium, RoHS
Width197 mm
Depth544 mm
Height435 mm
Weight52.5 kg
Package width381 mm
Package depth762 mm
Package height699 mm
Package weight63.7 kg
Cables includedRS-232, USB cable
Quick installation guideY
Software CDY
Products per pallet9 pc(s)
Nominal output voltage230 V
Nominal input voltage230 V

UPS lineinteractive
