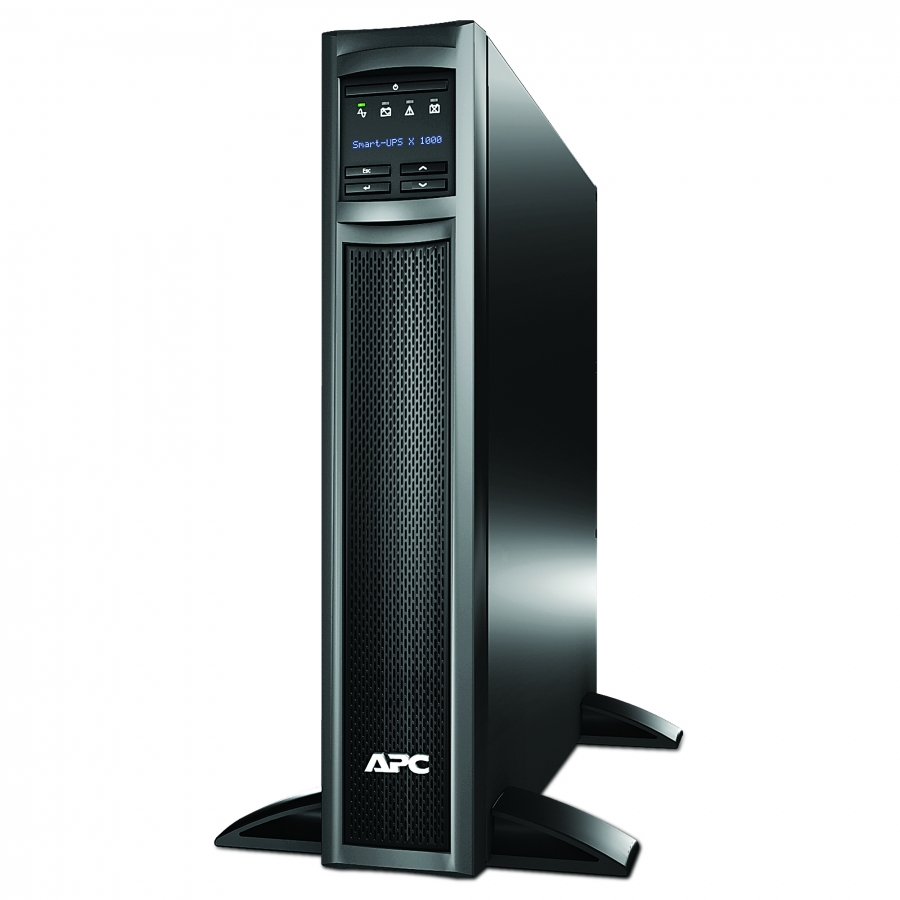

APC USV SMX1000I SMARTUPS X 1000VA Rack/Tower LCD 230V

APC

SMX1000I

New

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.High frequency design Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime.Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Energy meter Provides actual kilowatt hours of usage for energy conscious users.Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Multiple switched outlet groups Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

UPS topologyLine-Interactive
Output power capacity1 kVA
Output power800 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output frequency regulation50/60 Hz
Automatic Voltage Regulation (AVR)Y
Surge energy rating600 J
Efficiency98.2%
Emergency Power Off (EPO)Y
Noise level40 dB
Surge protectionY
Audible alarm(s)Y
Audible alarm modesLow battery alarm, Overload alarm
Auto-restartY

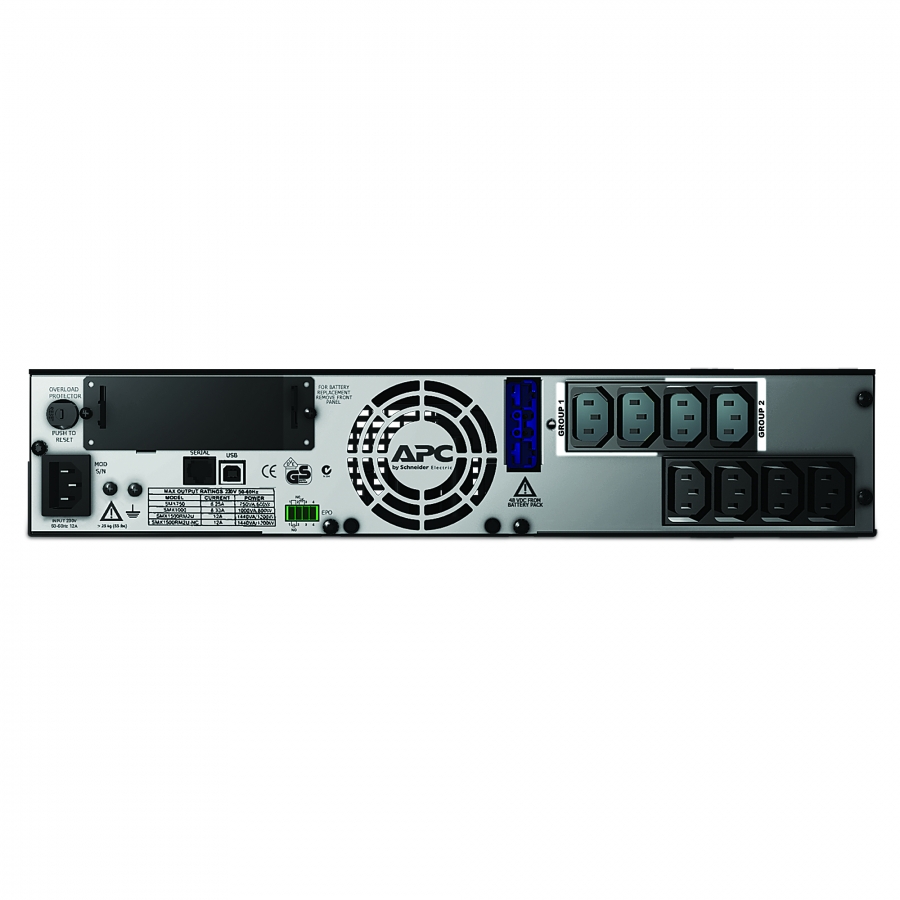

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
Number of output IEC jumpers2
USB portY
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Battery capacity299 VAh

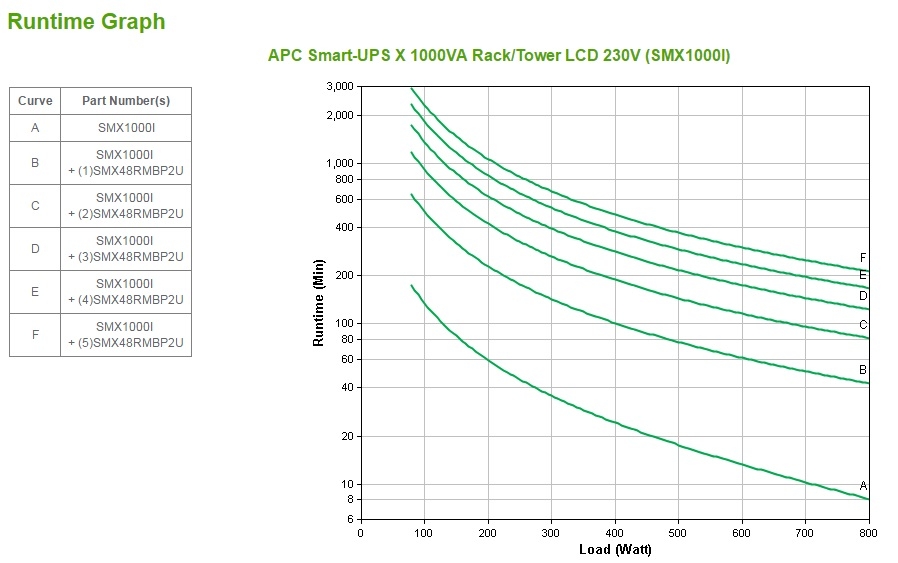

Typical backup time at full load8.1 min
Typical backup time at half load24.2 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryN
Automatic battery testY
Cold startY

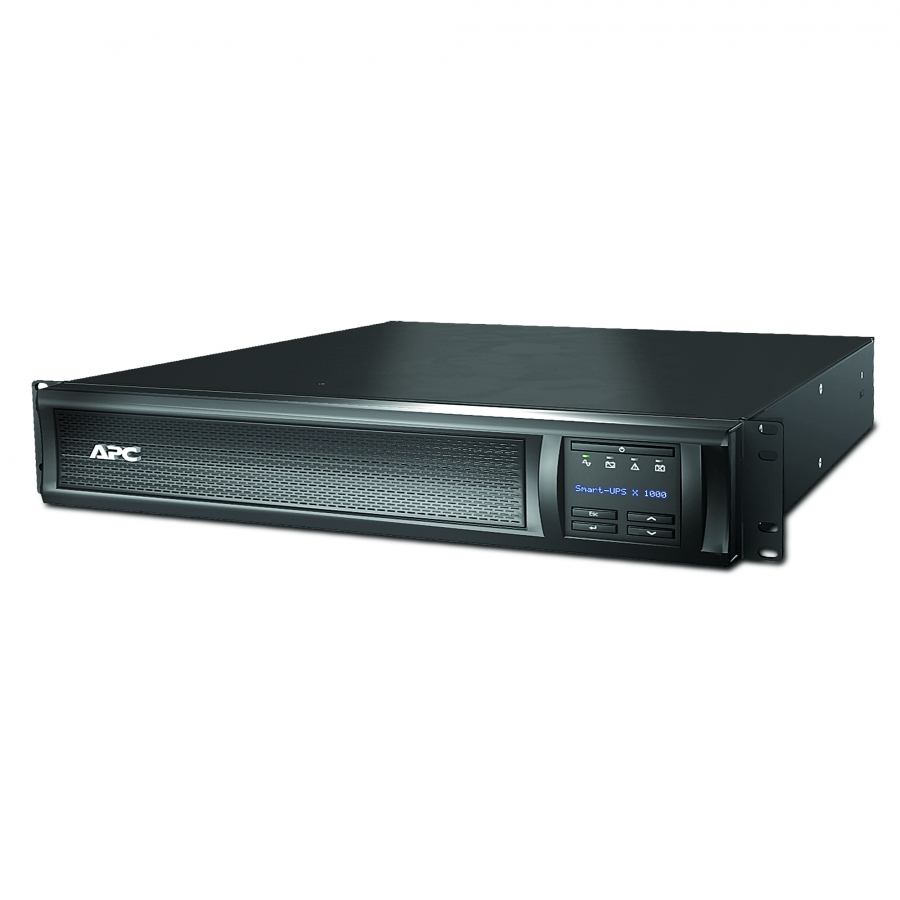

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length1.83 m
LED indicatorsY
CertificationCE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesGreen Premium, RoHS
Width432 mm
Depth490 mm
Height89 mm
Weight22.9 kg
Package width589 mm
Package depth620 mm
Package height246 mm
Package weight27.3 kg
Rack mount kitY
Cables includedRS-232, USB cable
Quick installation guideY
Software CDY
Products per pallet8 pc(s)
Harmonized System (HS) code85078000
Nominal output voltage230 V
Nominal input voltage230 V
Packaging contentRemovable support feet

UPS lineinteractive
