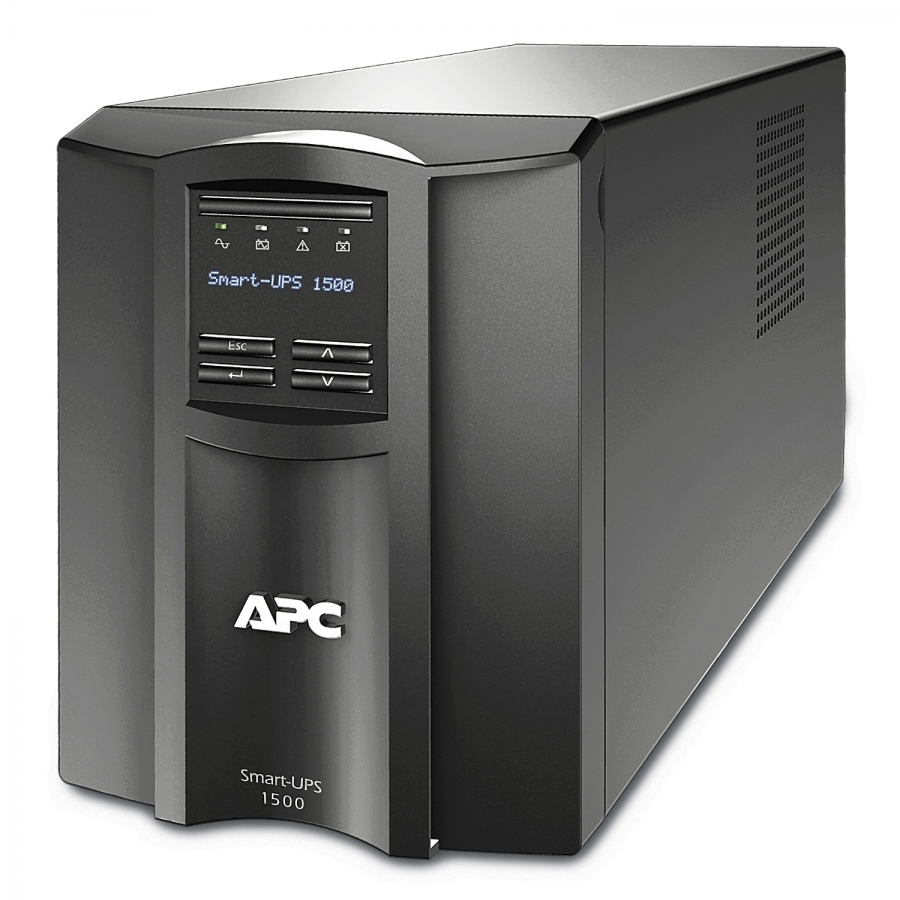

APC USV SMT1500I SMARTUPS 1500VA LCD 230V

APC

SMT1500I

New

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Energy meter Provides actual kilowatt hours of usage for energy conscious users.Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.High online efficiency Reduces utlility costs, generates less heat.SmartSlot Customize UPS capabilities with management cards.Cold-start capable Provides temporary battery power when the utility power is out.Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.

UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power1000 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating459 J
Efficiency98.7%
Noise level45 dB
Audible alarm(s)Y
Audible alarm modesLow battery alarm, Overload alarm

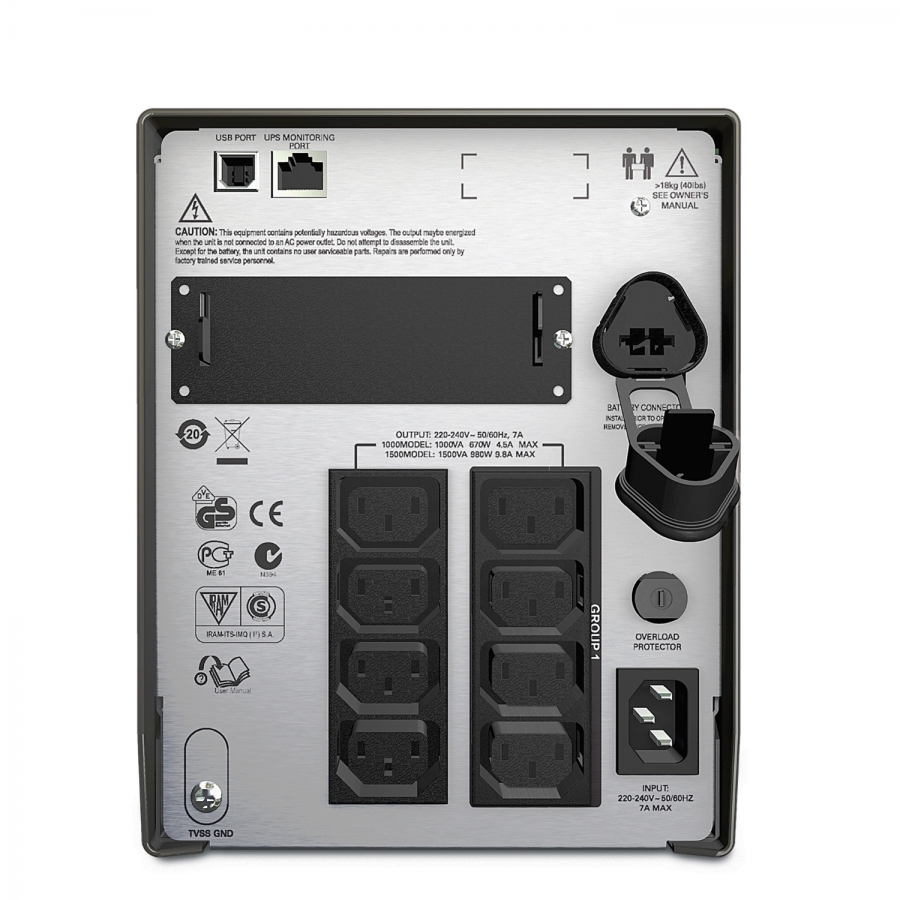

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
Number of output IEC jumpers2
USB portY
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Battery capacity408 VAh

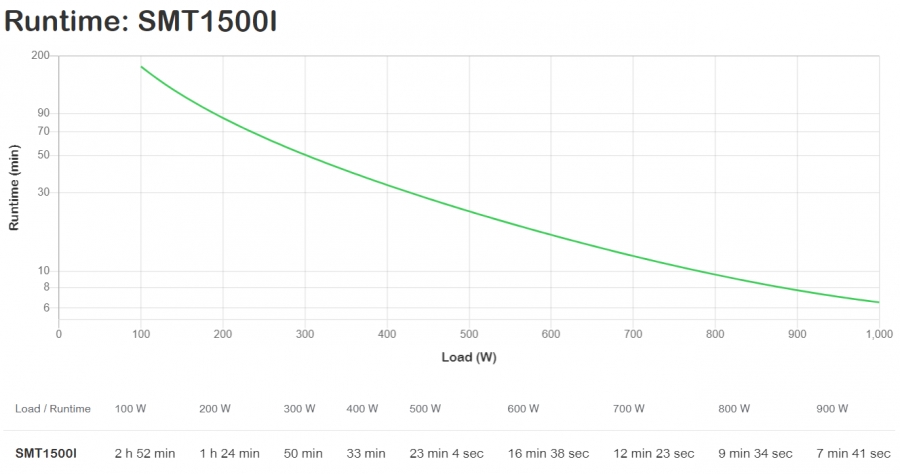

Typical backup time at full load6.5 min
Typical backup time at half load23.1 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryN
Automatic battery testY
Cold startY
Form factorTower
Product colourBlack
Cable length1.83 m
LED indicatorsStatus
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesENERGY STAR, Green Premium, RoHS
Width171 mm
Depth439 mm
Height219 mm
Weight24.1 kg
Package width328 mm
Package depth595 mm
Package height376 mm
Package weight27.2 kg
Cables includedRS-232, USB cable
Quick installation guideY
Software CDY
Products per pallet12 pc(s)
Nominal output voltage230 V
Nominal input voltage230 V

UPS lineinteractive
