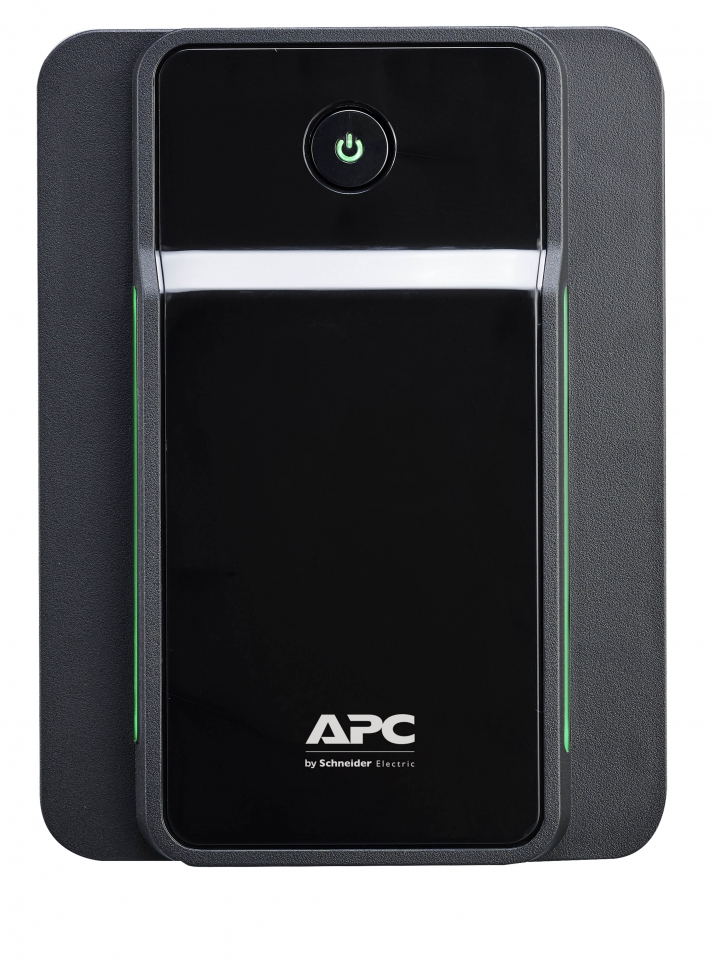

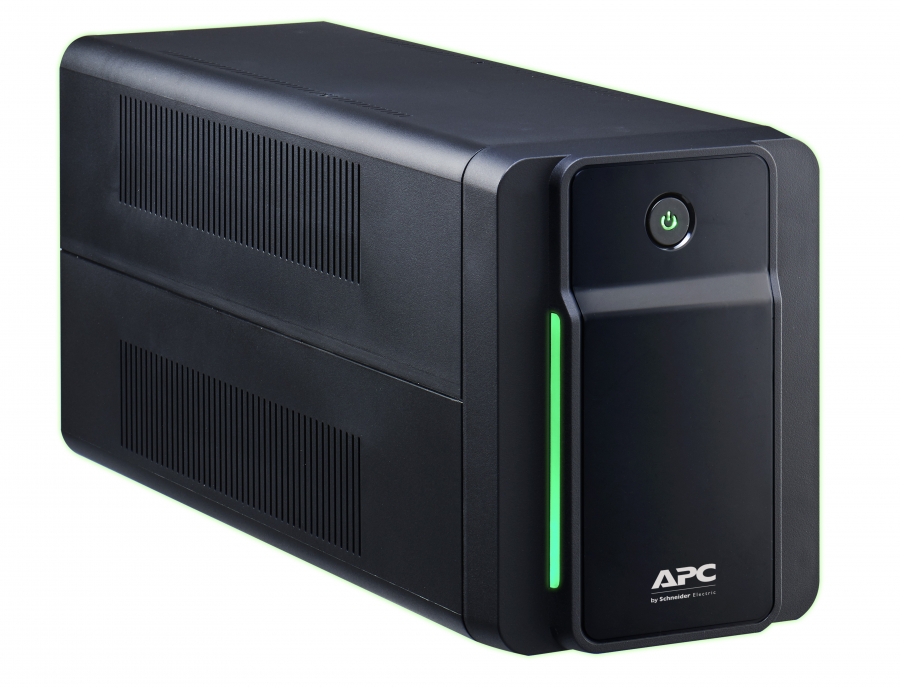

APC USV BX950MI BACKUPS 950VA 230V AVR 6 IEC Ausgänge

APC

BX950MI

New

Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.Dataline surge protection Provides protection of connected equipment from power surges on the data lines.PowerChute Personal Edition OS Compatibility This software supports numerous operating systems and processors.USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.Audible alarms Provides notification of changing utility power and UPS power conditionsLED status display Quickly understand unit and power status with visual indicators.Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenanceSurge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

UPS topologyLine-Interactive
Output power capacity0.95 kVA
Output power520 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)230 V
Output operation voltage (max)230 V
Output frequency50/60 Hz
Output frequency regulation0.5 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Y
Surge energy rating273 J
Response time6 ms
Input power factor0.54
Noise level40 dB
Surge protectionY
Audible alarm(s)Y
Audible alarm modesLow battery alarm

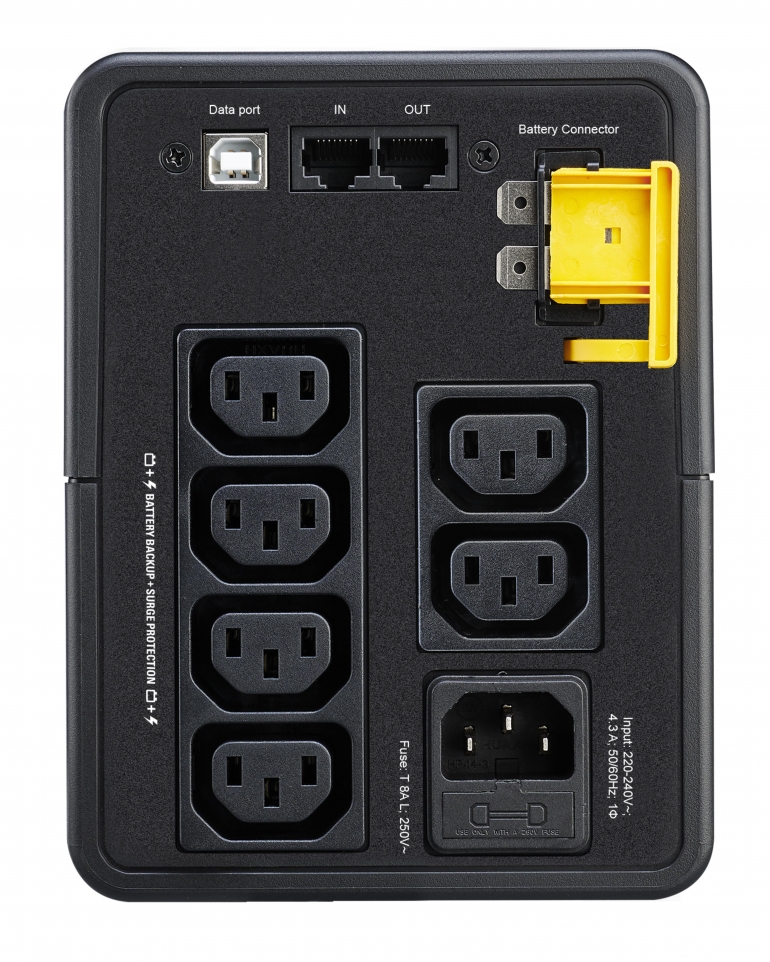

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)
USB portY
USB 2.0 ports quantity1
USB port typeUSB Type-B
Ethernet LAN (RJ-45) ports2
Battery technologySealed Lead Acid (VRLA)

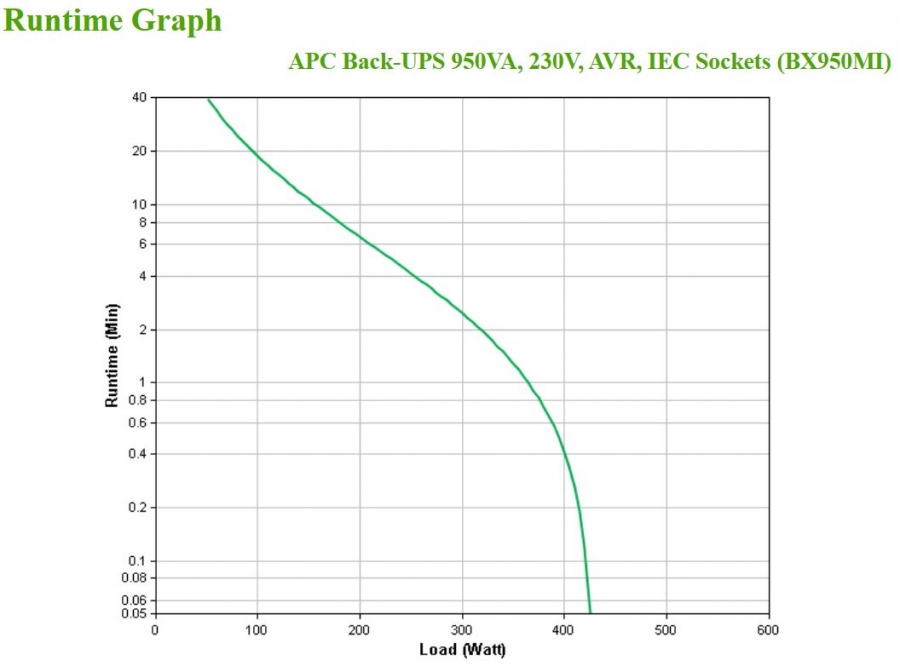

Typical backup time at full load1 min
Typical backup time at half load6.5 min
Battery life (max)2 year(s)
Battery recharge time8 h
Form factorCompact
Product colourBlack
Cable length1.2 m
LED indicatorsY
International Protection (IP) codeIP20
CertificationCB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Sustainability certificatesRoHS
Width120 mm
Depth355 mm
Height160 mm
Weight6.1 kg
Package width197 mm
Package depth430 mm
Package height250 mm
Package weight6.6 kg
Cables includedInput power cable
ManualY
Harmonized System (HS) code85078000

UPS lineinteractive
