APC USV SRT3000RMXLI SMARTUPS SRT 3000VA RM 230V (Speditionsversand)

APC

SRT3000RMXLI

New

A versatile UPS developed for unstable power conditions worldwideSmart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Y
Surge energy rating340 J
Efficiency92%
Crest factor3:1
Emergency Power Off (EPO)Y
Output voltage Total Harmonic Distortion (THD)2%
Noise level55 dB
Surge protectionY
Power protection featuresOverload
Audible alarm(s)Y
Audible alarm modesBattery replacement
Auto-restartY

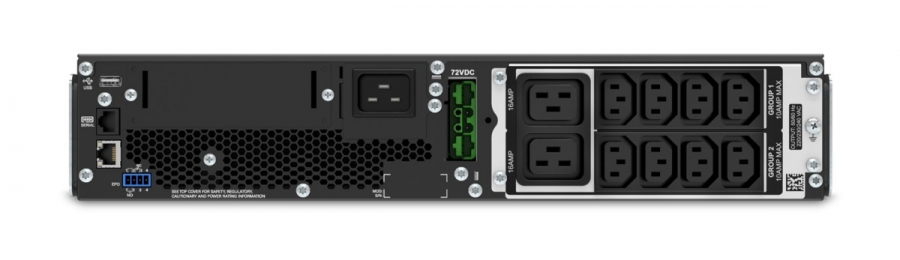

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB portY
Serial interfaceY
Serial interface typeRJ-45
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Battery capacity505 VAh

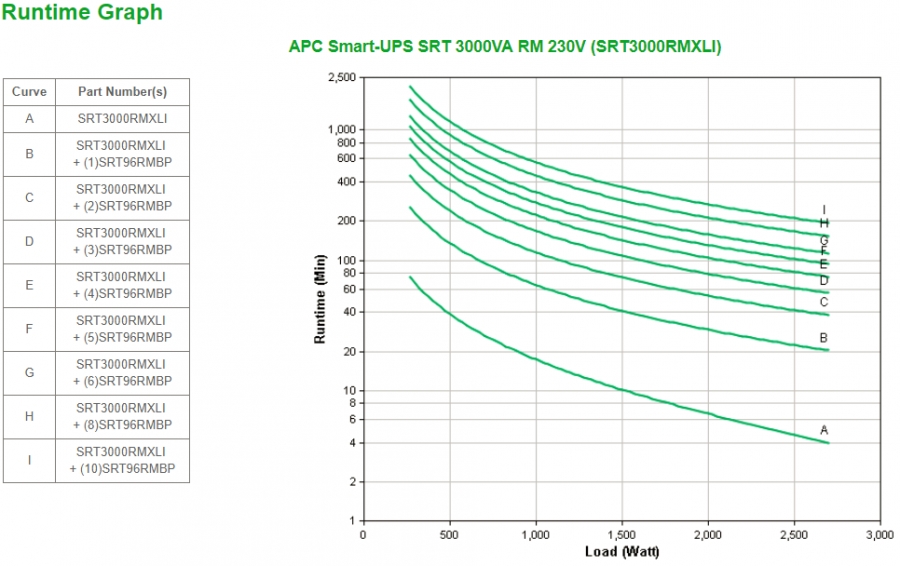

Typical backup time at full load4 min
Typical backup time at half load11.8 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryY
Automatic battery testY
Cold startY
Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length2.44 m
Display typeLCD
LED indicatorsBattery replacement
International Protection (IP) codeIP20
CertificationCE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesGreen Premium, RoHS
Width432 mm
Depth635 mm
Height85 mm
Weight31.3 kg
Package width599 mm
Package depth871 mm
Package height246 mm
Package weight39.3 kg
Quick installation guideY
Products per pallet6 pc(s)
Harmonized System (HS) code85078000
Output voltage230 V

UPS lineinteractive
