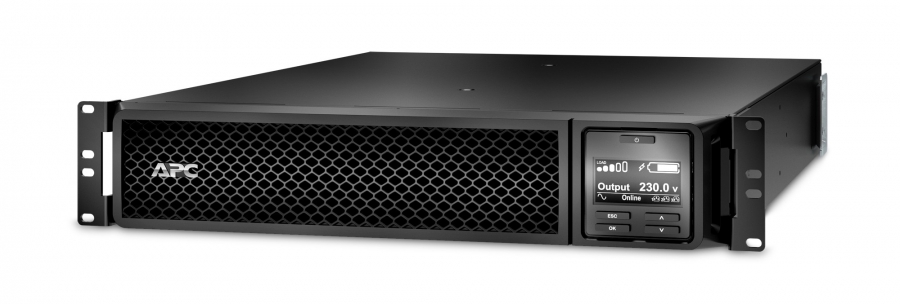

APC USV SRT2200RMXLI SMARTUPS RT 2200VA RM 230V (Speditionsversand)

APC

SRT2200RMXLI

New

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.High density, double-conversion on-line power protection with scalable runtime.Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency regulation50/60 Hz
Surge energy rating340 J
Efficiency92.2%
Crest factor3:1
Emergency Power Off (EPO)Y
Noise level55 dB
Surge protectionY
Audible alarm(s)Y
Web-based managementY
Auto-restartY

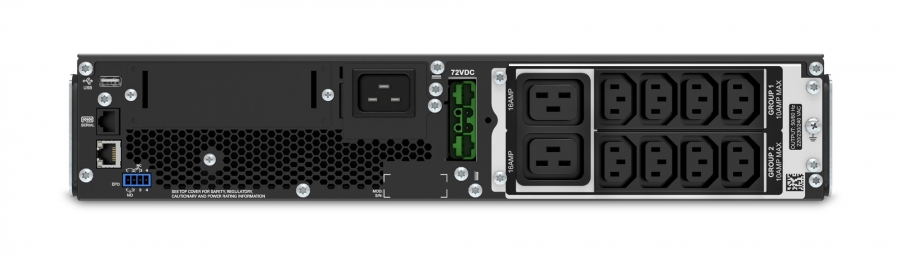

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB portY
Serial interfaceY
Serial interface typeRJ-45
SmartSlotY
Battery technologySealed Lead Acid (VRLA)
Battery capacity367 VAh
Number of batteries supported1

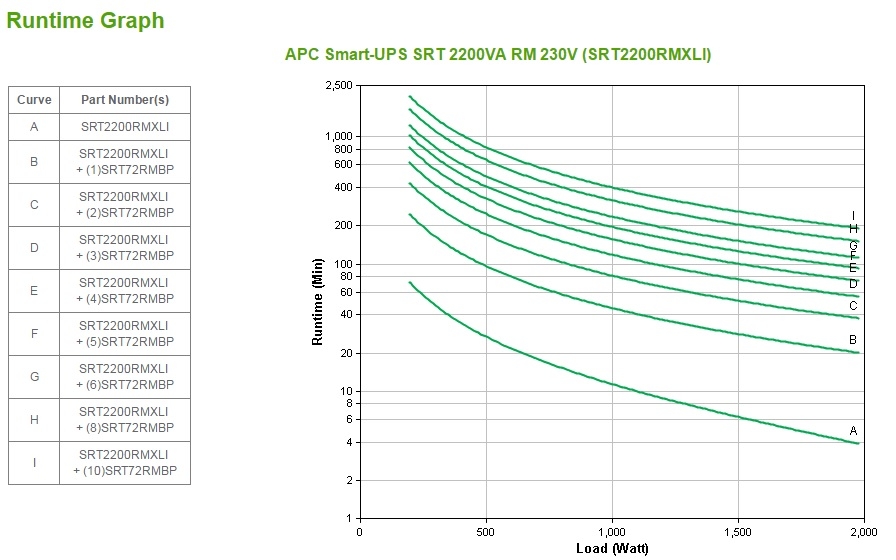

Typical backup time at full load3.9 min
Typical backup time at half load11.6 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryY
Automatic battery testY
Cold startY
Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length2.44 m
Display typeLCD
LED indicatorsY
International Protection (IP) codeIP20
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Sustainability certificatesENERGY STAR, Green Premium, RoHS
Width432 mm
Depth584 mm
Height85 mm
Weight25 kg
Package width599 mm
Package depth810 mm
Package height246 mm
Package weight34 kg
Rack mount kitY
BracketY
Cables includedUSB cable
Quick installation guideY
Software CDY
Products per pallet12 pc(s)
Harmonized System (HS) code85078000
Nominal output voltage230 V
Nominal input voltage230 V

UPS lineinteractive
