Digitus OnLine UPS system, 3000

Reference DN-170096

Condition: New

More info

OnLine UPS Module, 3000VA/3000W

The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.

High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

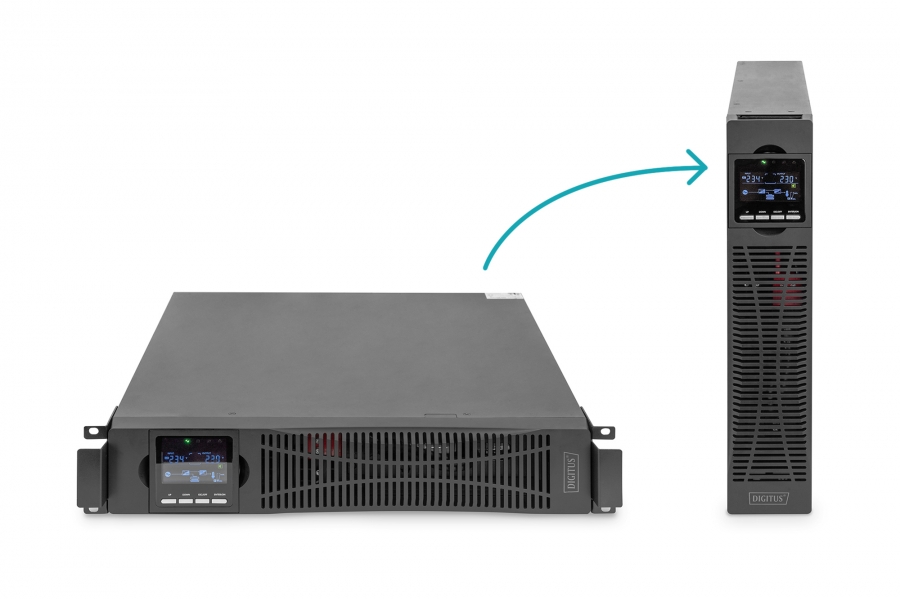

Compact rack/tower design optimizes rack space and allows for flexible installation.
Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.
External battery modules enable extended runtime.

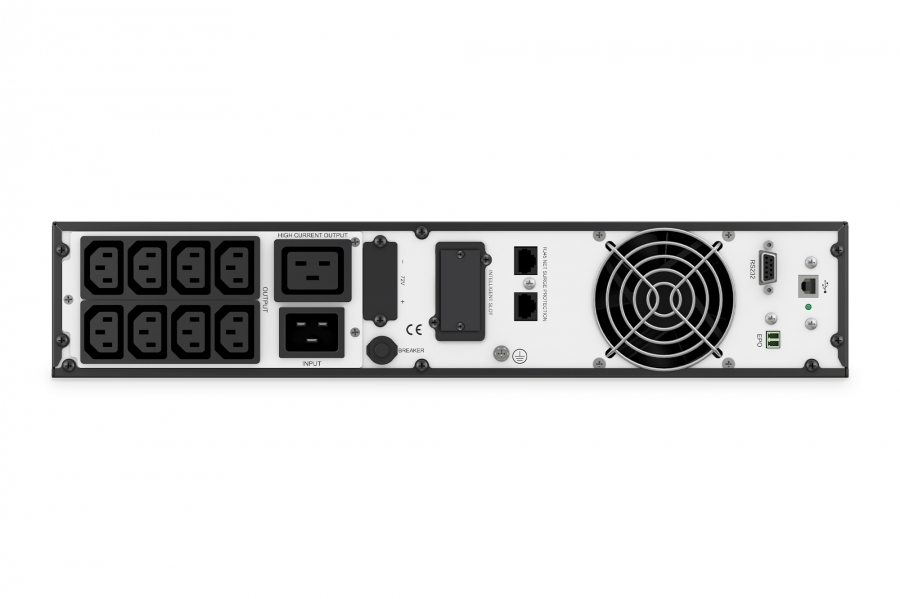

High number of outlets (8 x C13 & 1 x C19) for optimal power distribution to loads.
Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
Automatic battery self-test and fan speed control increase component life.
Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.

Installation: Desktop, Rack
Plug: IEC 60320 C20 inlet
Power: 1500VA 3000VA
Technology: Online double conversion
Inch form factor (IEC 60297): 482.6 mm (19")
Online double conversion system (VFI-SS-111)
Input: socket IEC60320 C20, 208/220/230/240 Vac
Output: 8 x IEC60320 C13, max. 10A per socket; 1 x IEC60320 C19, max. 16A per socket
System power rating: 3000 VA / 3000 W, power factor 1.0
AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
Replaceable internal battery pack during operation.
Battery: valve-regulated, non-spillable lead-acid battery.
Battery capacity: 6 x 12V x 9.0 Ah
Full load run time: 3 min; half load run time: 9 min
Charge: 4 hours to 90% capacity after fully discharged
Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
Emergency power-off (EPO) contact for UPS shutdown in case of emergency
Maximum operating temperature: 0 - 40 °C
Storage temperature: -25 - 55 °C
Relative humidity: 20 - 90% non-condensing
Operating altitude: < 1500 m
Product dimensions WxDxH (mm): 440 (19") x 600 x 86.5 (2U)
Product weight: 26 kg
Shipping dimensions WxDxH (mm): 560 x 730 x 200
Shipping weight: 30.2 kg
Safety standards: IEC/EN62040-1,IEC/EN60950-1
EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Approval: CE declaration
Scope of delivery: UPS unit, feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, mains cable (1.8m protective contact socket (type 7/4) to IEC60320 socket C20), IEC C13 connection cable, 19" installation brackets
Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Package content:
1 x OnLine UPS system, 3000 VA / 3000 W
1 x UPS user manual
1 x UPS Quick Installation Guide
1 x USB cable
1 x Input power cable 1,80 m(Schuko plug CEE 7/7 - IEC 60320 C19)
1 x Output power connection cable 1,50 m (IEC60320 C13 - Sheet E)
1 x IEC 60320 Sheet I (16A) connector
Management software download license
