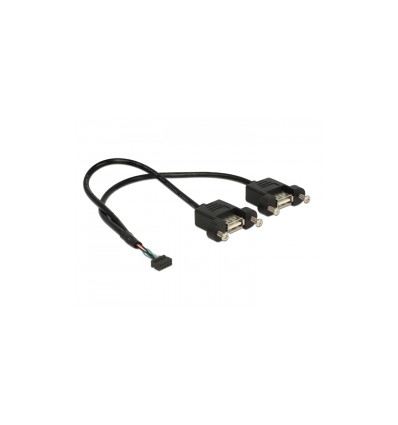

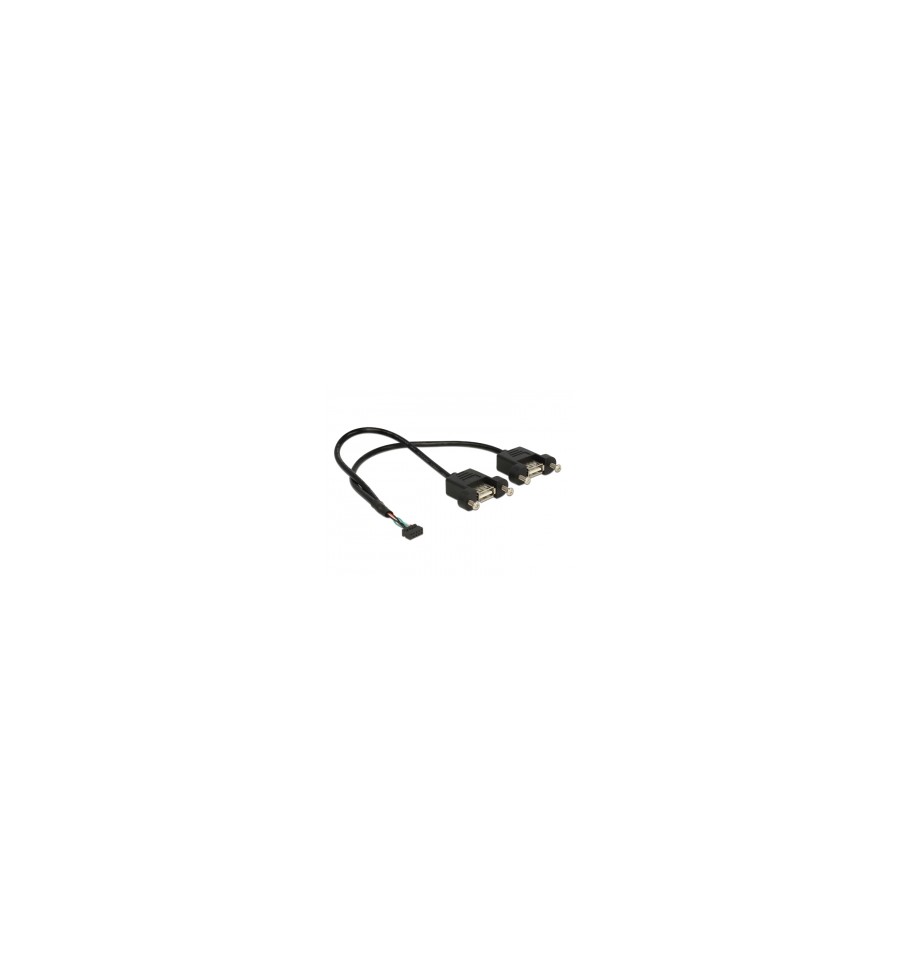

Delock Cable USB 2.0 pin header female 2.00 mm 10 pin - 2 x USB 2.0 Type-A female panel-mount 25 cm

Description
This cable enables you to extend a USB 2.0 connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install an USB connector on an easily accessible position. The cable is most suitable for self-designed computer systems.

Specification
• Connector:
  1 x 10 pin USB 2.0 pin header female >
  2 x USB 2.0 Type-A female with screw nuts for installation
• Pitch distance: 2.00 mm
• Pin 10 = Key
• Screw type: M3
• Mounting hole: ca. 17.5 x 11.5 mm, screw hole pitch ca. 28.5 mm
• Cable gauge: 28 AWG
• Cable diameter: ca. 4 mm
• Gold-plated connector
• Data transfer rate up to 480 Mb/s
• Colour: black
• Length incl. connector: ca. 25 cm

System requirements
• A free 2.00 mm USB 2.0 pin header

Package content
• USB panel-mount cable
• 4 screws

Package
• Poly bag
