Delock Cable USB 3.0 pin header female 2.00 mm 19 pin > 2 x USB 3.0 Type-A female panel-mount 80 cm

Reference 85244

Condition: New

More info

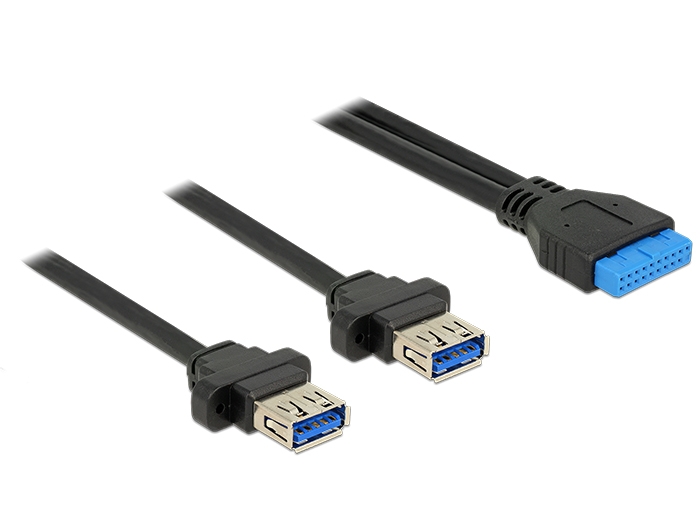

This cable by Delock allows the extension of a USB 3.0 connection and can be used to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install a USB connector at an easily accessible position. The cable is most suitable for self-designed computer systems as well as the Mini PCIe module 95234 by Delock.

System requirements:
• A free 2.00 mm USB 3.0 pin header

Specification:
• Connectors:

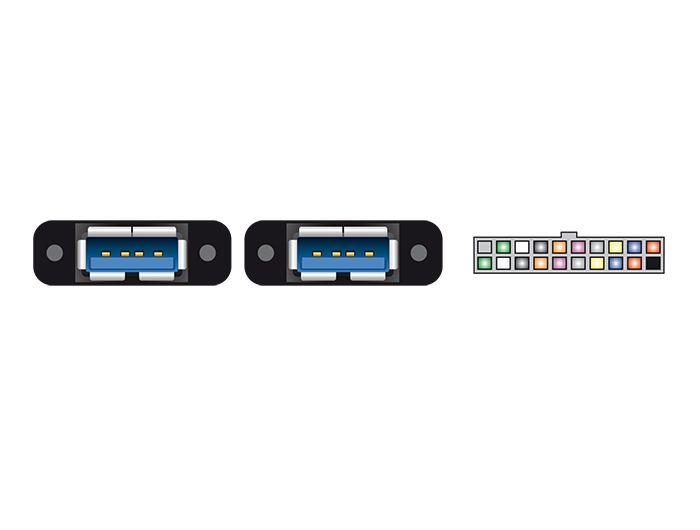

1 x 19 pin USB 3.0 pin header female >
2 x USB 3.0 Type-A female panel-mount
• Pitch distance: 2.00 mm
• Pin 20 = Key
• Screw type: M2

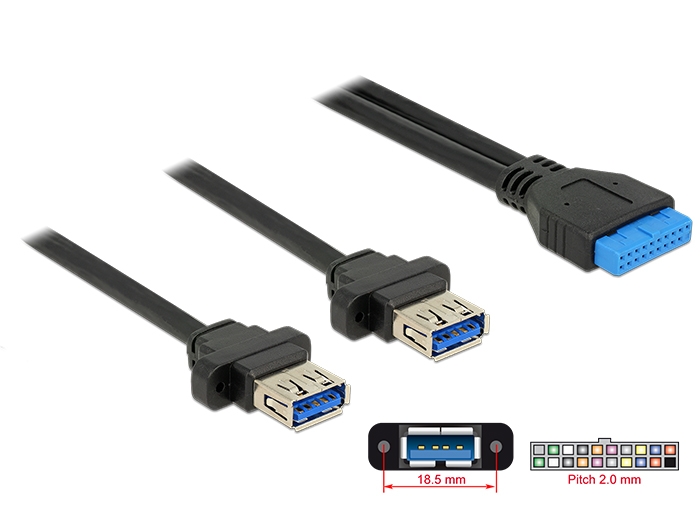

• Mounting hole: ca. 15.0 x 8.5 mm, screw hole pitch ca. 18.5 mm
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 5.5 mm
• Gold-plated connectors
• Data transfer rate up to 5 Gbps
• Colour: black
• Length incl. connectors: ca. 80 cm

Package content:
• USB panel-mount cable

Data sheet:
http://www.delock.de/produkt/85244/pdf.html?sprache=en
