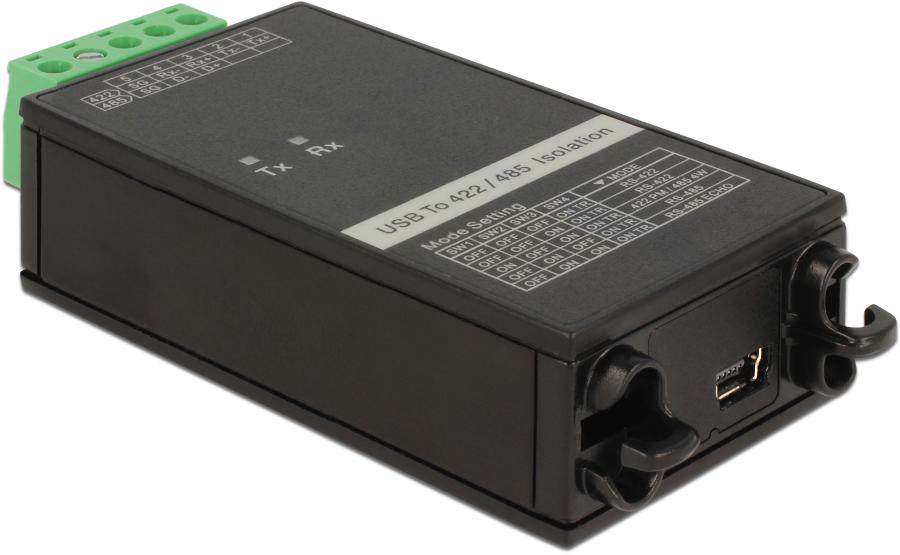

Delock Converter USB 2.0 Serial RS-422485 with 3 kV Isolation

DELOCK

62501

New

The Delock USB to serial converter enables you to connect a serial device to a free USB port. This USB converter separates the electrical connection between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low- and Full-Speed.

More details

Description:
The Delock USB to serial converter enables you to connect a serial device to a free USB port. This USB converter separates the electrical connection between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low- and Full-Speed.

Specification:
• Connector:
Host: 1 x Mini USB 2.0 B female

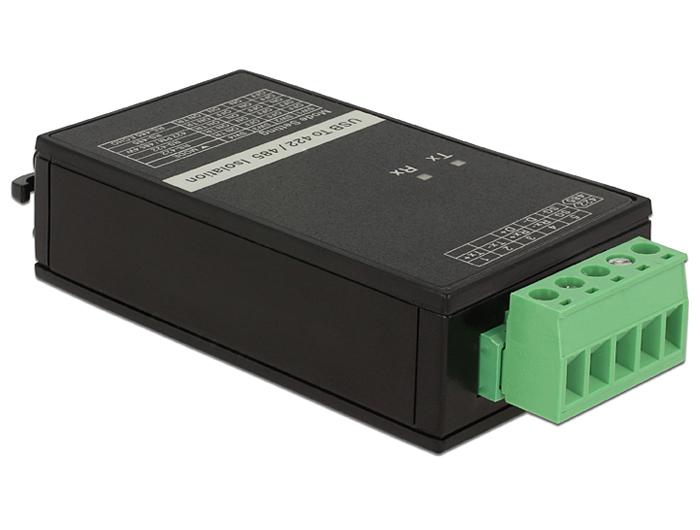

Device: 1 x RS-422/485 Terminal Block 5 pin
• Data transfer rate up to 1 Mb/s
• 1 x DIP switch: RS-422/485 set operating mode
• LED indicators for status TX / RX
• 3 kV optical isolation
• ± 15 kV ESD protection for all signal pins
• Power consumption: 54 mA / 270 mW
• Power supply via USB (Bus-Powered)
• Operating temperature: - 30° ~ 75° C
• Storage temperature: - 40° ~ 85° C
• Relative humidity: 5 ~ 95 % (not condensing)
• Housing: plastic
• Dimension (LxWxH): ca. 101 x 42 x 22 mm

System requirements:
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64, Mac OS 10.5,
Linux Kernel 2.6
• PC or notebook with one free USB port

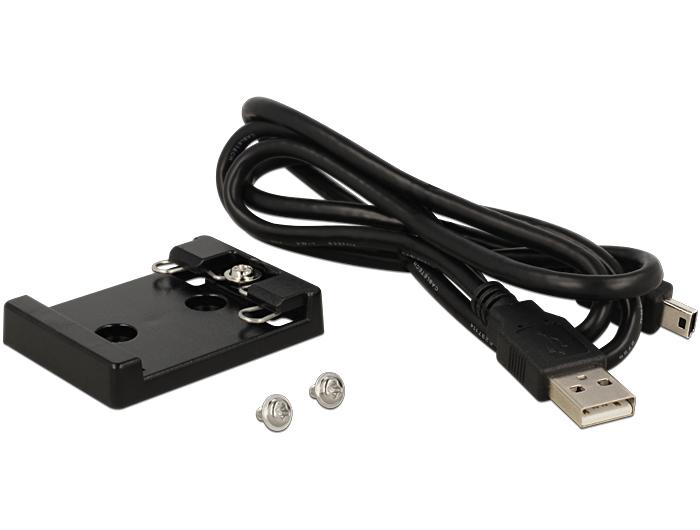

Package content:
• Converter
• USB 2.0 cable, length: ca. 1 m
• Mounting set for DIN rail
• Driver CD
• User manual
