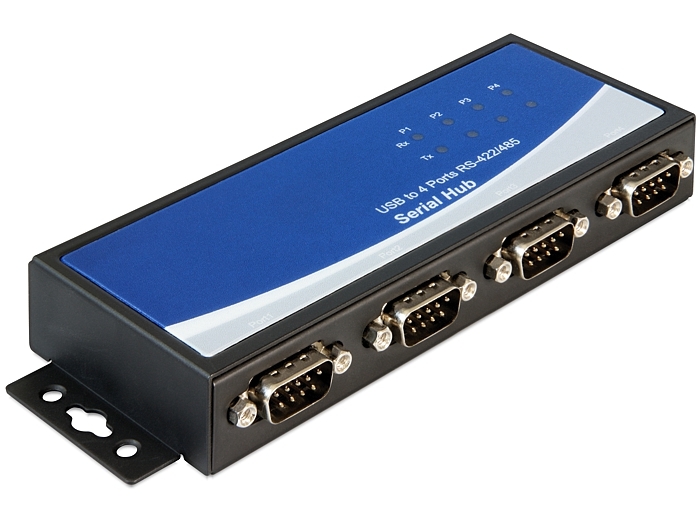

Delock Adapter USB 2.0 to 4 x serial RS-422/485

DELOCK

87587

New

This USB 2.0 to serial adapter enables you to connect up to four different serial devices to a free USB port.
System requirements:
• Windows XP/Vista/Vista-64/7/7-64/8/8-64, Linux ex Kernel 2.6
• PC or Notebook with a free USB port
Specification:
• Chipset: FT4232HL, SP3078EE
• Connector: USB 2.0-B female to 4 x 9 pin serial RS-422/485 male
• 4 x DIP switch: RS-422/485 operation setting
• Internal pin header: Jumper switch terminator on / off
• Serial male connector with screw nuts
• Data transfer rate up to 1 Mb/s
• LED for indication of TxD / RxD activity
• Automatical recognition and switching between RS-422 and RS-485
• ±15 kV ESD protection on all signal pins
• Wall mounting integrated in the housing
• Power consumption:
    operation: ≤ 143 mA / 715 mW
    standby: 92 mA / 460 mW
• Additional I/O and IRQ are not required
• Dimension: 172 x 65 x 23 (LxWxH)

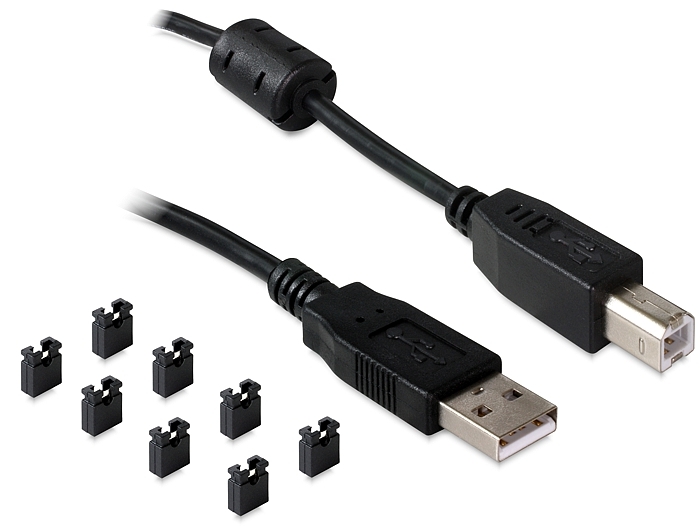

Package content:
• USB 2.0 to 4 x serial RS-422/485 adapter
• USB 2.0 cable A-B
• 8 jumper
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/87587/pdf.html?sprache=en
