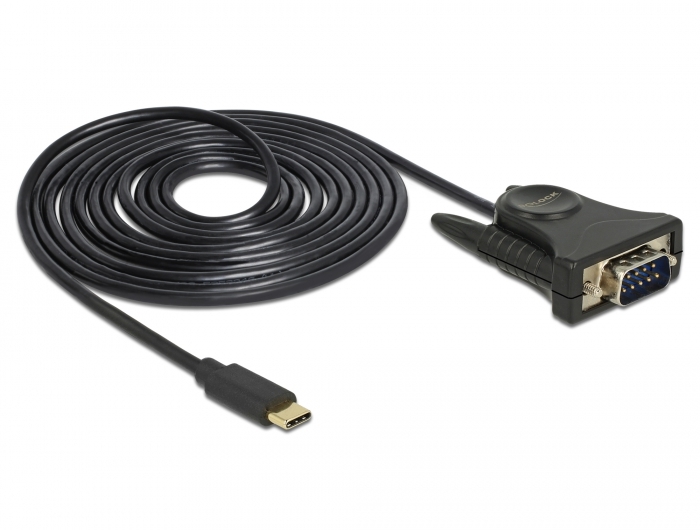

Delock Adapter USB Type-C™ > 1 x Serial DB9 RS-232

DELOCK

62964

New

This USB Type-C™ to serial adapter by Delock provides a compatible RS-232 DB9 interface for printers, measuring instruments, controllers, IoT devices etc.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.31 / Kernel 4.x.x, Mac ex OS
  10.12, Android ex 4.4
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x USB Type-C™ male >
  1 x serial RS-232 DB9 male
• Chipset: Prolific PL2303 HXD
• Screw type: #4-40 UNC
• Compatible with USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 1 Mbps
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Parity: even, odd, none, mark, space
• Stop bit: 1, 1.5, 2
• Data bit: 5, 6, 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS
• FIFO: 512 Byte buffer bi-directional

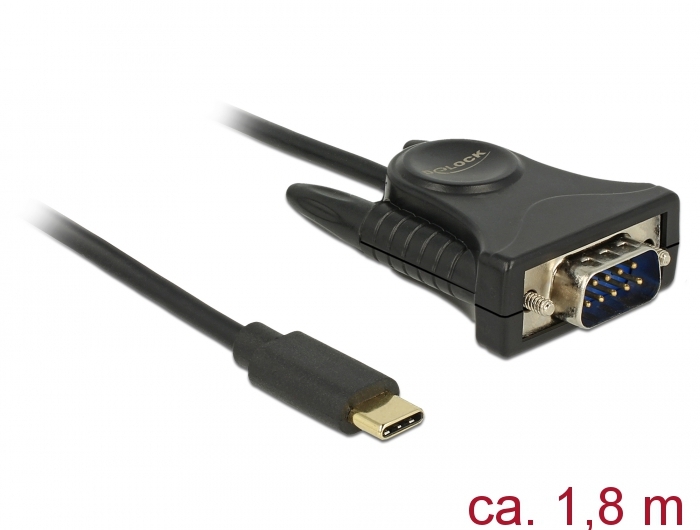

• Cable length: ca. 1.8 m
Package content:
• Adapter cable USB Type-C™ > 1 x Serial RS-232 DB9
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/62964/pdf.html?sprache=en
