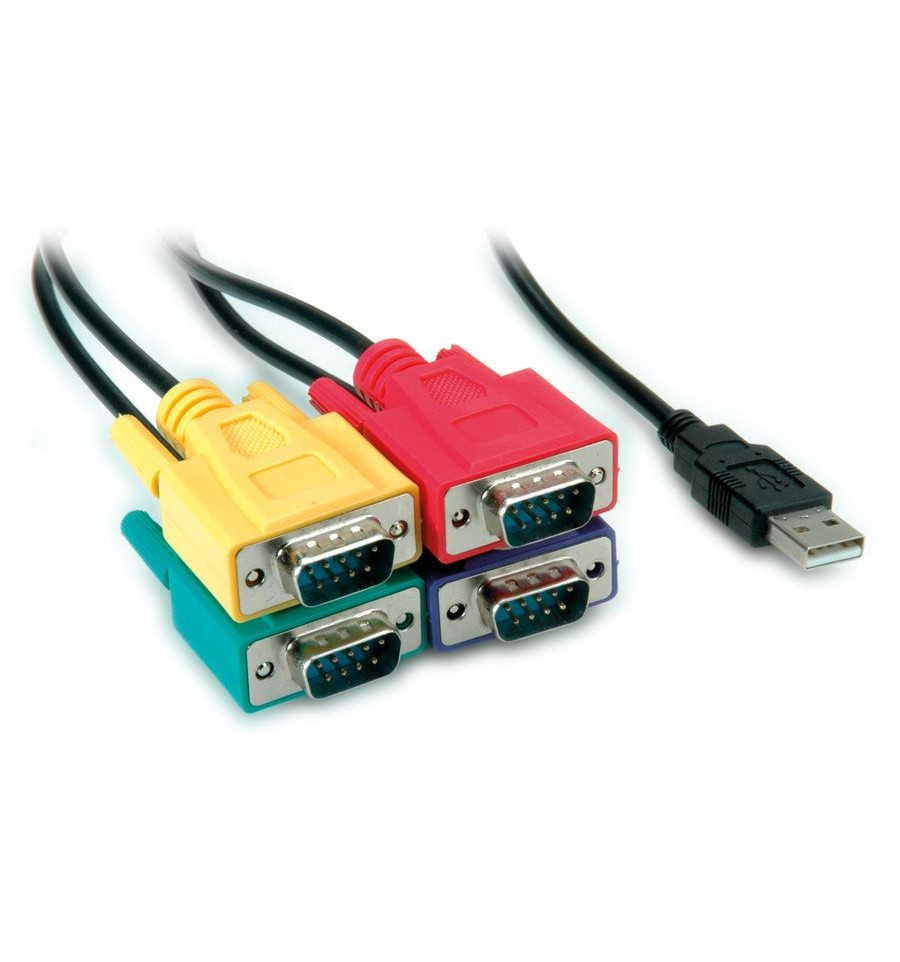

ROLINE USB to 4 RS-232 Converter

ROLINE

12.02.1016

New

Allows the connection of four serial devices (e. g. a modem or printer) via the USB port of a PC or notebook - the four differently colored RS232 connectors help to provide a clear differentiation.

  • Converts one PC USB Port into four serial ports
  • Supports data transfer rates of up to 1Mbit/s
  • No external power supply is needed
  • Supported operating systems: Windows 2000/XP/Vista/7


ManufacturerROLINE
Product groupAdapters, Terminators, Converters
Product typeUSB - Serial Converter
Colourblack
Length1.8 m
Scope of deliveryConverter, driver CD, manual
Side 1 connection (PC)USB A Male
Side 2 connection (Peripherals)2 x DB9 Male
Side 1 Connector TypeUSB 2.0 Type A
Side 1 Connector GenderMale
Side 2 Connector TypeD-Sub 9-pin (DB-9)
Side 2 Connector GenderMale
Conversion directionserial - USB
Max. bandwidth1 MBit/s
Area of applicationExternal
Dimensions (HxWxD)22 x 45 x 75 mm
MaterialCable length 1.8 m
Technical particularityWindows 2000/XP/Vista/ 7
Current catalog editionC18-LM
