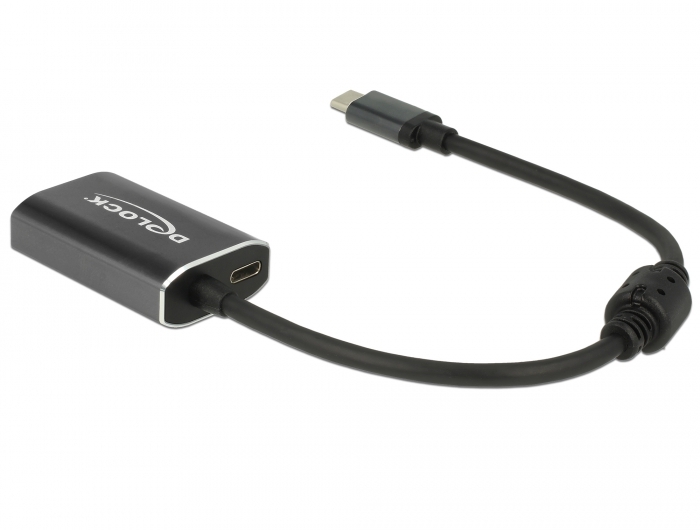

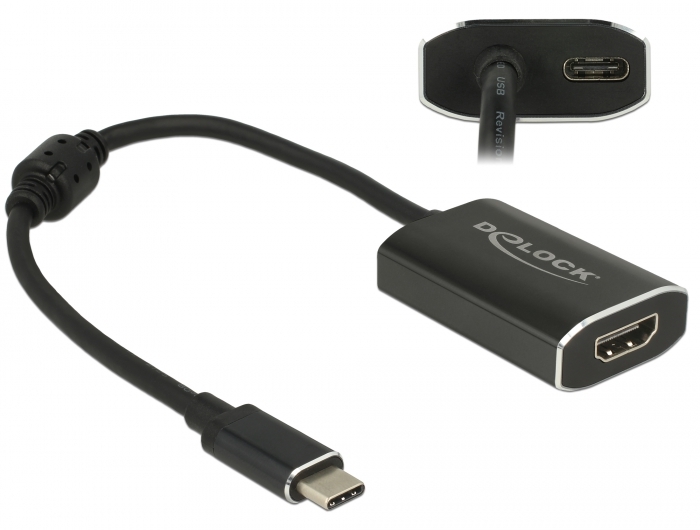

Delock Adapter USB Type-C™ male > HDMI female (DP Alt Mode) 4K 60 Hz with PD function

DELOCK

62988

New

This Delock adapter is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and Displayport alternate mode support. Thus, the adapter can be connected to different laptops like Macbook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface. The adapter has a USB Type-C™ Power Delivery port. This allows the laptop to be charged while the adapter is in use.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Windows 10 Mobile, Chrome OS,
  Linux ex Kernel 4.3, Mac ex OS 10.12, Android ex 6.0
• PC or laptop with a free USB Type-C™ port and Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:

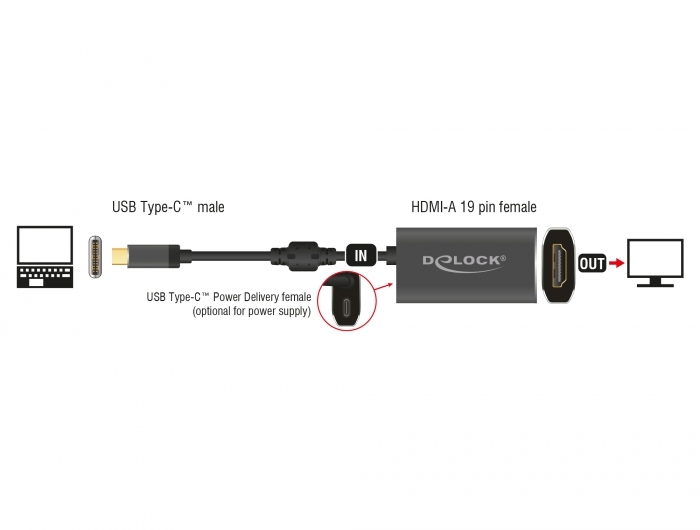

• Connectors:
  Input:
    1 x USB Type-C™ male

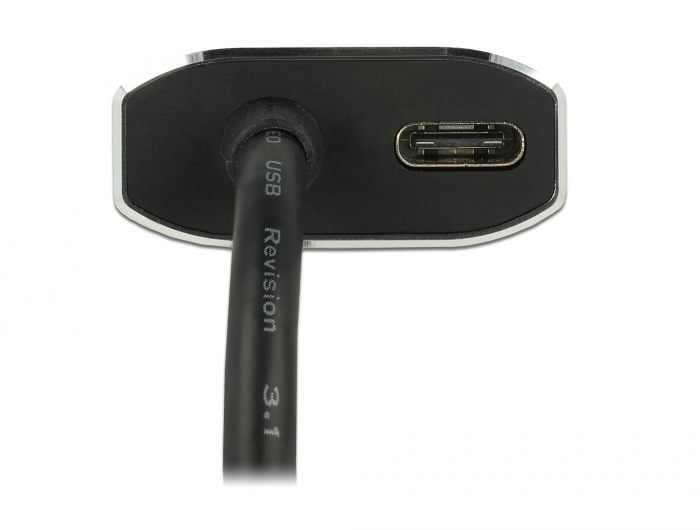

    1 x USB Type-C™ Power Delivery female (optional for power supply)
  Output:
    1 x HDMI-A 19 pin female
• Chipset: VIA VL100 + Parade PS176
• Displayport 1.2 and High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 4096 x 2160 @ 60 Hz (depending on the system and the connected
  hardware)
• Transfer of audio and video signals
• Audio formats: 8-channel LPCM, compressed audio and HBR audio format up to 24 Bit
  audio sample size and 192 kHz sample rate
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Charging power: max. 60 W, 20 V @ 3 A
• USB bus powered
• Plug & Play
• Housing material: aluminium
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: dark grey
Package content:
• USB-C™ to HDMI adapter
Data sheet:
http://www.delock.de/produkt/62988/pdf.html?sprache=en
